Page 256 of 295

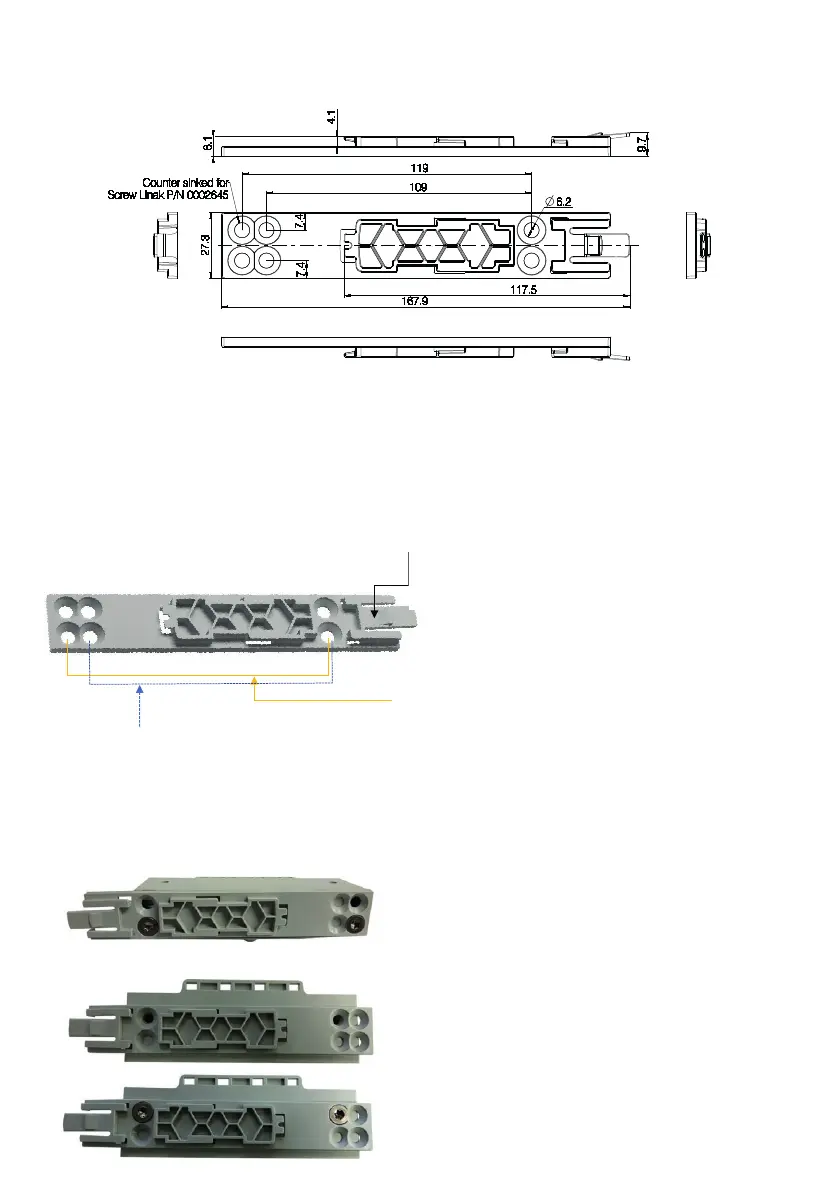

Multi-flexible mounting bracket for MDI - article no. 1015W1010-A
Mount the bracket on the side or the back of the MDI.
If it is necessary to dismount the MDI from the application, we recommend to use the bracket for mounting.
Use special screws type WN1423 K60x16, ordering no. 0002645.
The screws must be mounted with a torque of maximum 1.0 Nm. The screw head will then be flush with the bracket.
Snap function for mounting and release of the bracket from the control box
Used for fixation of the bracket to the back of the MDI
Used for fixation of the bracket to MDI side
Drawing no.: 0835012
Mounting bracket
The bracket is very flexible for mounting but we recommend one of the following fixations.
Bracket fixation to the MDI back:
Bracket fixation to the MDI side:
