Linak TECHLINE LA36 Connection Diagram

FOR MOUNTING INSTRUCTIONS AND GUIDANCE IN USAGE, PLEASE SEE THE RELEVANT USER’S MANUALS
Copyright © LINAK 2020.11 . MA-M9-02-537-C
.
LINAK A/S reserves the right to make technical alterations
Connection diagram
7
2020 © LINAK A/S
Endstop signals and relative positioning - Dual hall

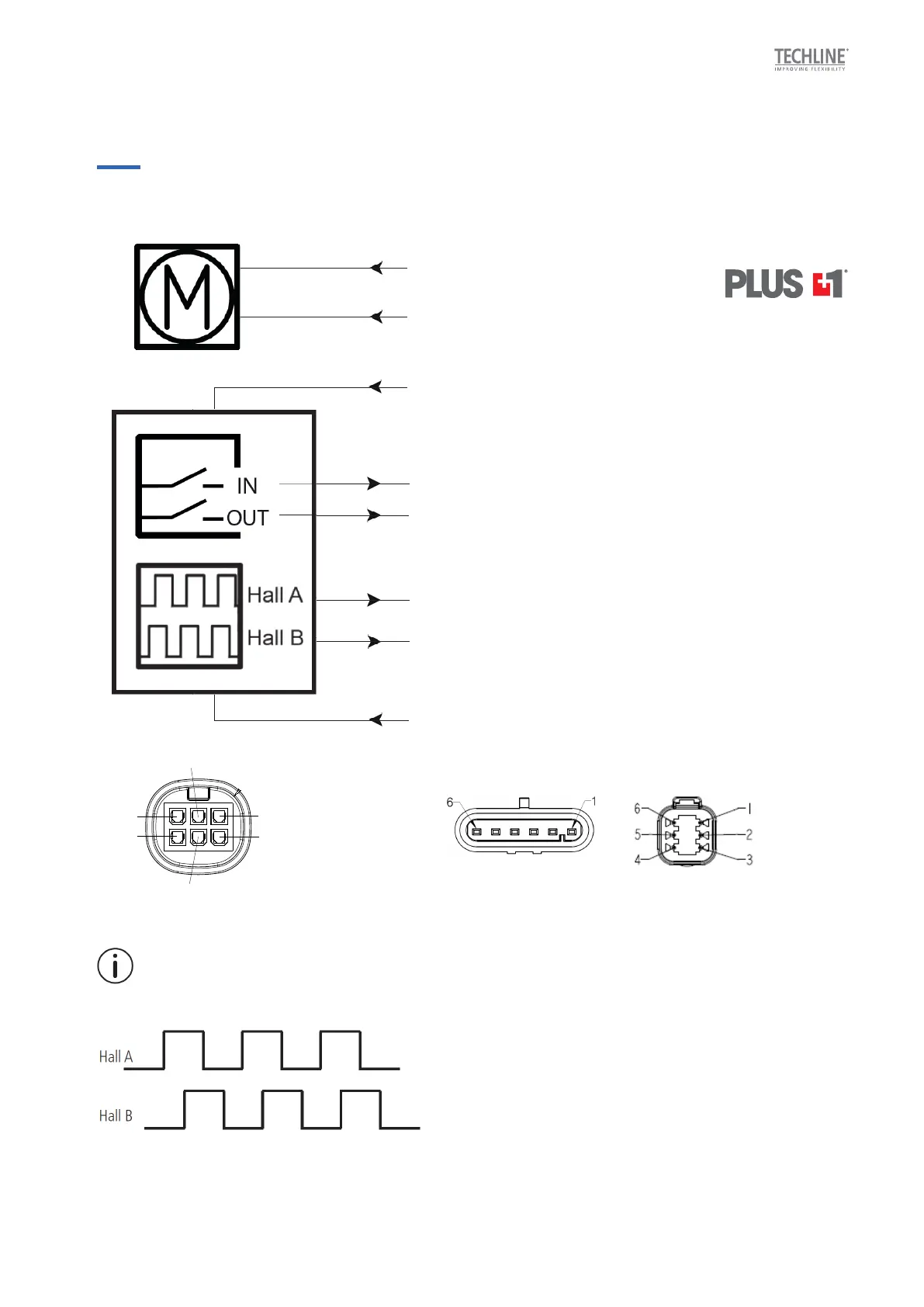

Diagram of Dual hall:
36XXXXXXXH00XX-XXXXXXXXXXXXXXXX
36XXXX+2HXXXXXX
37XXXX+2HXXXXXX
*VIOLET/WHITE: Endstop signals out are NOT potential free
Tip: If you wish to use the endstop signals, you will have to keep power on the brown, blue,
red and black wires, otherwise the signal will be lost.
Compliant with:
Powered by Danfoss
BROWN
BLUE
VIOLET*
WHITE*
RED
YELLOW
BLACK
+
-
GREEN
2
5
6
1
2
5
6
1
4
3
4
3
AMP DEUTSCH
6P6P
1-3
4-6
1
6
2
5
3
4
6P
