I/O Specifications
7
2020 © LINAK A/S

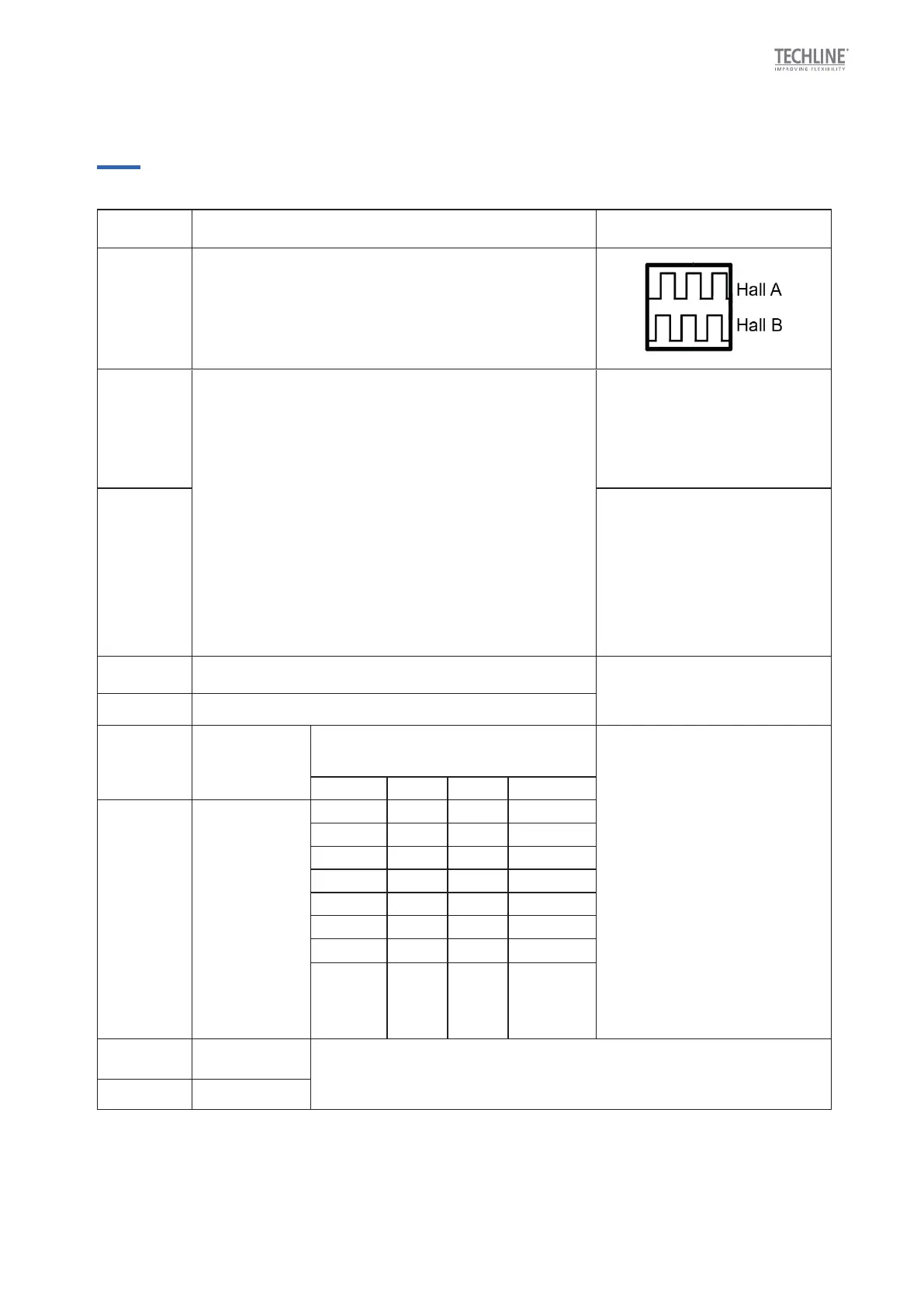

Endstop signals and relative positioning - Dual hall
Input/Output Specification Comments
Description The actuator can be equipped with Dual Hall that gives a relative positioning feedback
signal when the actuator moves.
Brown 12, 24, 36* or 48* VDC (+/-)
*Only available on LA36
12 V ± 20 %
24 V ± 10 %
36 V ± 10 %
48 V ± 10 %
Under normal conditions:
12 V, max. 26 A depending on load
24 V, max. 13 A depending on load
36 V, max. 10 A depending on load
48 V, max. 8.0 A depending on load
To extend actuator:
Connect Brown to positive
To retract actuator:
Connect Brown to negative
Blue To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Red Signal power supply (+) 12 - 36 VDC Current consumption:
Max. 40 mA, also when the
actuator is not running
Black Signal power supply GND (-)
Green Hall B Hall output (PNP)
Movement per each Hall pulse
The Hall sensor signals are generated by the
turning of the actuator gearing.
These signals can be fed into a PLC (Programmable
Logic Controller). In the PLC the quadrature signals
can be used to register the direction and
position of the piston rod.
Output voltage min. V
IN
- 2 V
Current output 12 mA
Overvoltage on the motor can result in shorter
pulses.
N.B. For more precise measurements, please
contact LINAK A/S.
Actuator G:ear Pitch: mm/count
Yellow Hall A LA36 H 8 mm 0,442
LA36 H 12 mm 0,662
LA36 H 16 mm 0,883
LA36 G 16 mm 1,016
LA36 F 16 mm 2,309
LA36 F 20 mm 2,890
LA37 C 2,5 mm 0,138
LA37 C 8 mm 0,442
Violet Endstop signal in Output voltage min. V
IN
- 2 V
Source current max. 30 mA
NOT potential free
White Endstop signal out
