Water supply connection
Connect the supplied water inlet hose to the inlet connection point on the filter head
and the other end to the mains supply via an accessible isolating tap with a ¾” BSP
thread.
Use the hose set supplied with the appliance - any previous hose set is not to be re-
used.
Potable water. If solid particles are known to be in the supply, add an extra inline
filter or strainer.
OPERATING INSTRUCTIONS

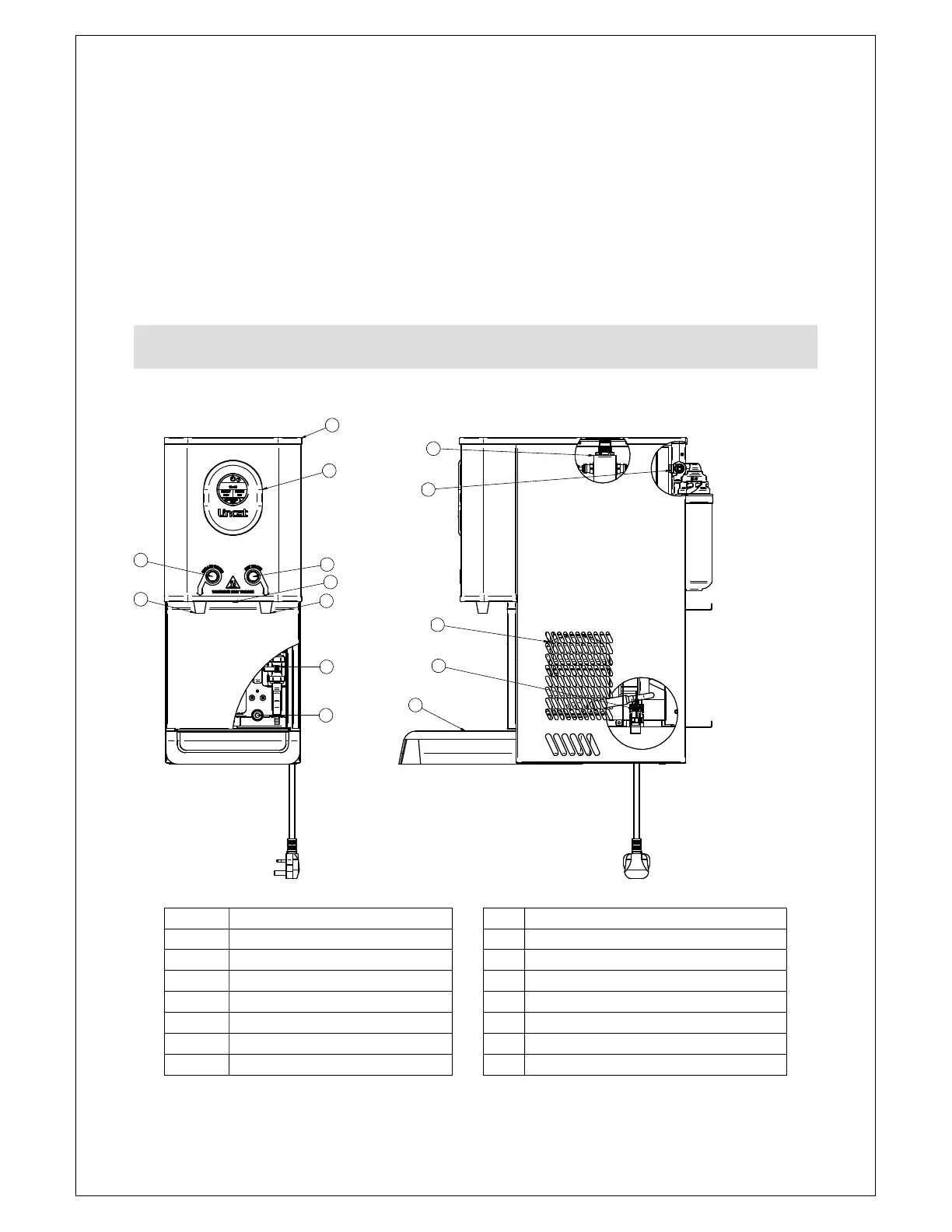

General arrangement
1
2
3
4
5
6
7
8
9
10
12
11
13
14
Only qualified or trained personnel should use this appliance.
1 Lid 9 Drain pipe – thermal trip reset
2 Touchscreen display 10 Pressure reducing valve
3 Dispense button cold 11 Water inlet point
4 Dispense spout cold 12 Side condenser air vent
5 Dispense button hot 13 Mains power inlet
6 Dispense spout hot 14 Drip tray
7 Serial plate location
8 Hot tank drain valve
