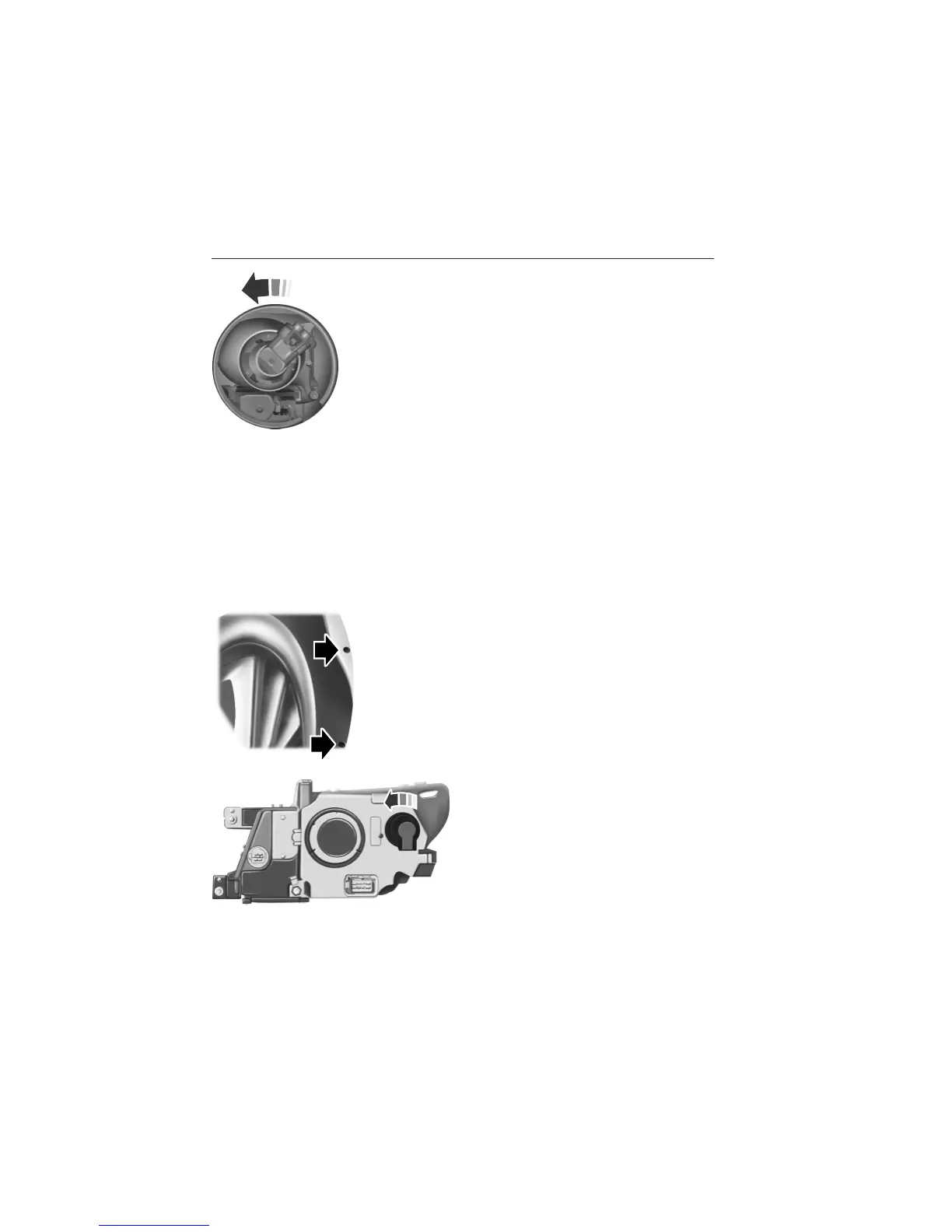

4. Turn the bulb holder counterclockwise and remove
it.
5. Disconnect the electrical connector.
6. Reverse the procedure to install the new bulb.
Replacing HID headlamp bulbs (if equipped)
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. When the bulb is burned
out, the bulb and starter capsule assembly must be replaced by your
authorized dealer.
Replacing front parking lamp/turn signal bulbs
1. Make sure that the headlamp control is in the off position.
2. Open the hood.
3. At the wheel well, remove the fasteners from
the splash shield, then pull the splash shield back
to gain access to the bulbs.
4. Rotate the bulb socket
counterclockwise and remove from
the lamp assembly.
5. Carefully pull the bulb out of the
socket and push in the new bulb.
6. Install the bulb socket into the
lamp assembly and rotate clockwise.
Maintenance 271
2013 MKX (mkx)
Owners Guide gf, 2nd Printing
USA (fus)
