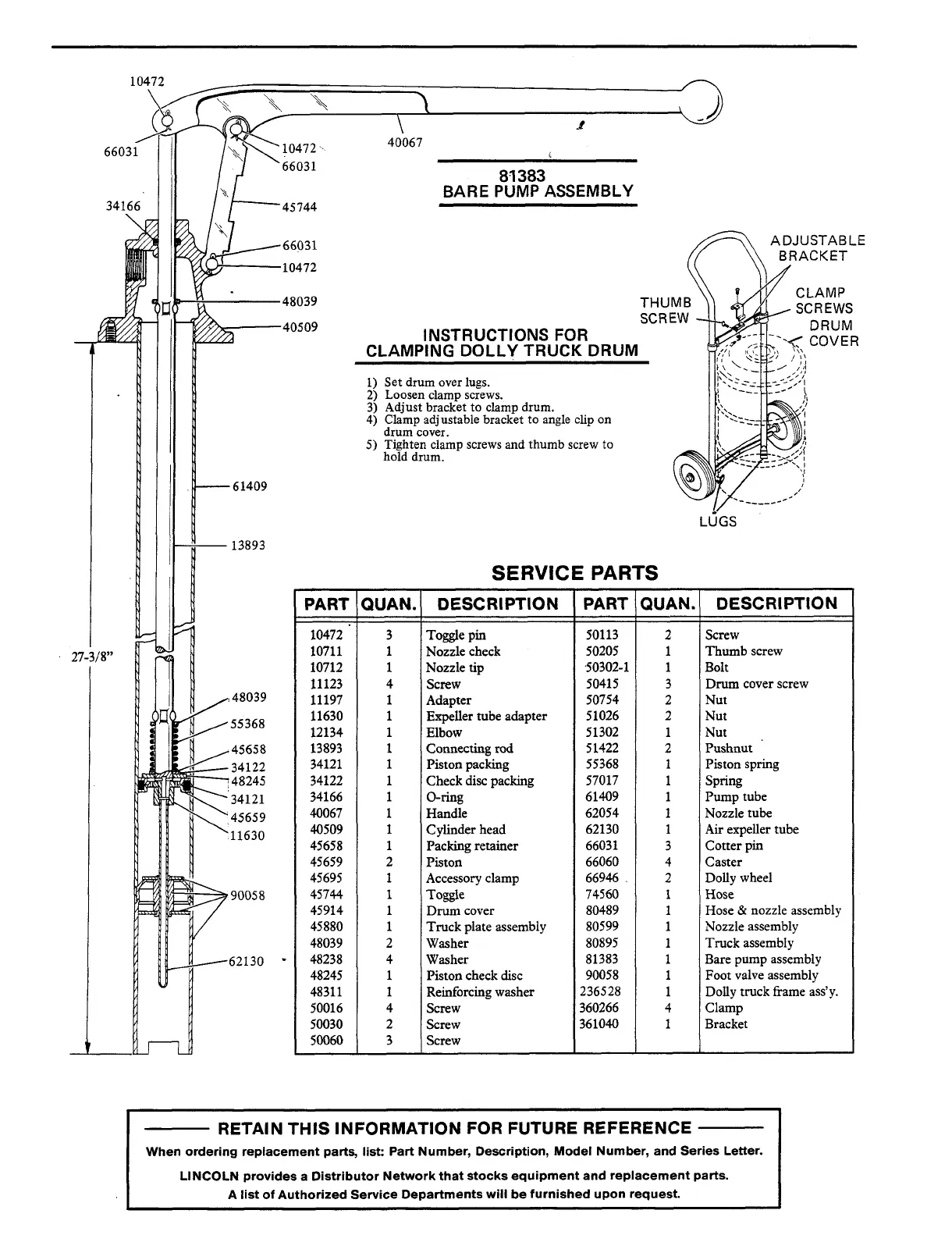

Lincoln 549 - Service Parts

81383
BARE PUMP ASSEMBLY
INSTRUCTIONS FOR
CLAMPING DOLLY TRUCK DRUM
1) Setdrum over lugs.
2) Loosen clamp screws.
3) Adjust bracket to clamp drum.
4) Clamp adjustable bracket toangle clip on
drum cover.
5) Tighten clamp screws andthumb screw to
hold drum.
SERVICE PARTS
PART QUAN. DESCRIPTION PART QUAN.
DESCRIPTION
10472 3 Toggle pin 50113 2 Screw
10711
1
Nozzle check
50205 1 Thumb screw
10712 1 Nozzle tip 50302-1 1
Bolt
11123
4
screw
50415 3 Drum cover screw
11197
1
Adapter
50754 2 Nut
11630
1
Expeller tube adapter
51026
2
Nut
12134
1
Elbow
51302 1 Nut
13893 1
Connecting rod
51422 2 Pushnut
34121
1
Piston packing
55368 1 Piston spring
34122
1
Check disc packing
57017 1 Spring
34166
1
O-ring
61409 1 Pump tube
40067 1
Handle
62054 1 Nozzle tube
40509 1
Cylinder head
62130 1
Air expeller tube
45658 1
Packing retainer
66031
3 Cotter pin
45659 2
Piston
66060 4 Caster
45695 1
Accessory clamp
66946.
2
Dolly wheel
45744 1
Toggle
74560 1 Hose
45914 1
Drum cover
80489 1 Hose & nozzle assembly
45880 1
Truck plate assembly
80599 1 Nozzle assembly
48039
2
Washer
80895 1 Truck assembly
48238 4 Washer
81383 1 Bare pump assembly
48245 1 Piston check disc
90058 1 Foot valve assembly
48311
1
Reinforcing washer
236528
1 Dolly truck frame ass’y.
50016
4
screw
360266 4 Clamp
50030
2
Screw
361040 1 Bracket
50060
3 Screw
RETAIN THIS INFORMATION FOR FUTURE REFERENCE
When ordering replacement parts list Part Number, Description, Model Number, and Series Letter.
LINCOLN provides a Distributor Network that stocks equipment and replacement parts.
A list of Authorized Service Departments will be furnished upon request.
