Models 85622, 85628, 85626, 85637 Non-Metallic-REV1007 Page 3

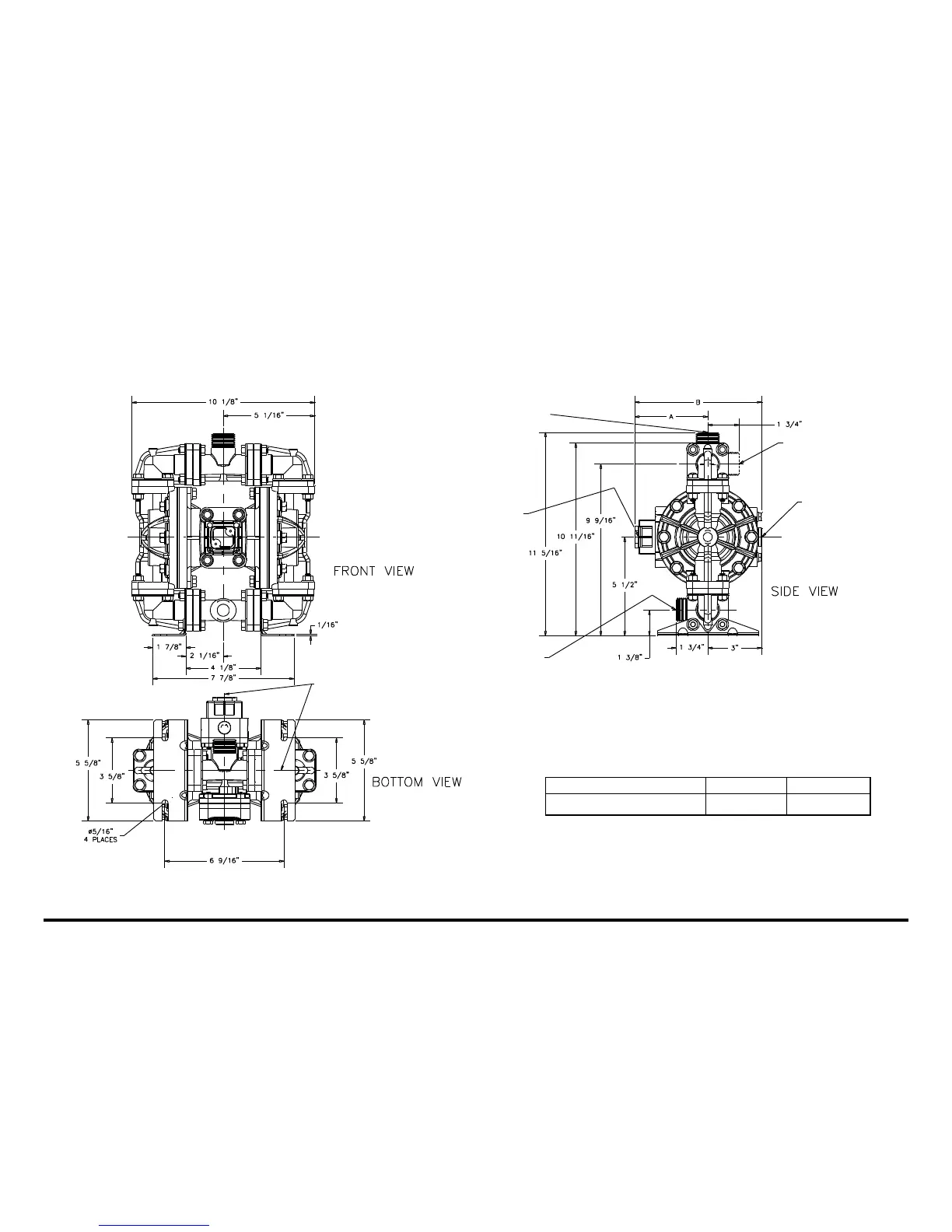

Dimensions in Inches
Dimensional tolerance: ±
1
/8"
Bolt Pattern is
Symmetrical About
Centerlines
*Suction Port
½" NPT (Internal)
1" NPT (External)
Standard Encapsulated Muffler:
3/8" NPT Exhaust Port For Optional
Muffler Styles or Piping Exhaust Air
In Submerged Applications.
*Discharge Port
1/2" NPT (Internal)
1" NPT (External)
Manifold Can Rotate ±90°
From Vertical Centerline
Air Inlet 1/4" NPT
*Both Suction And Discharge Ports are Available in
½" BSP Tapered (Internal)
1" BSP Tapered (External)
DIMENSION A B
Standard Pump 4 1/16" 7 1/16"
