Models 85622, 85628, 85626, 85637 Non-Metallic-REV1007 Page 4

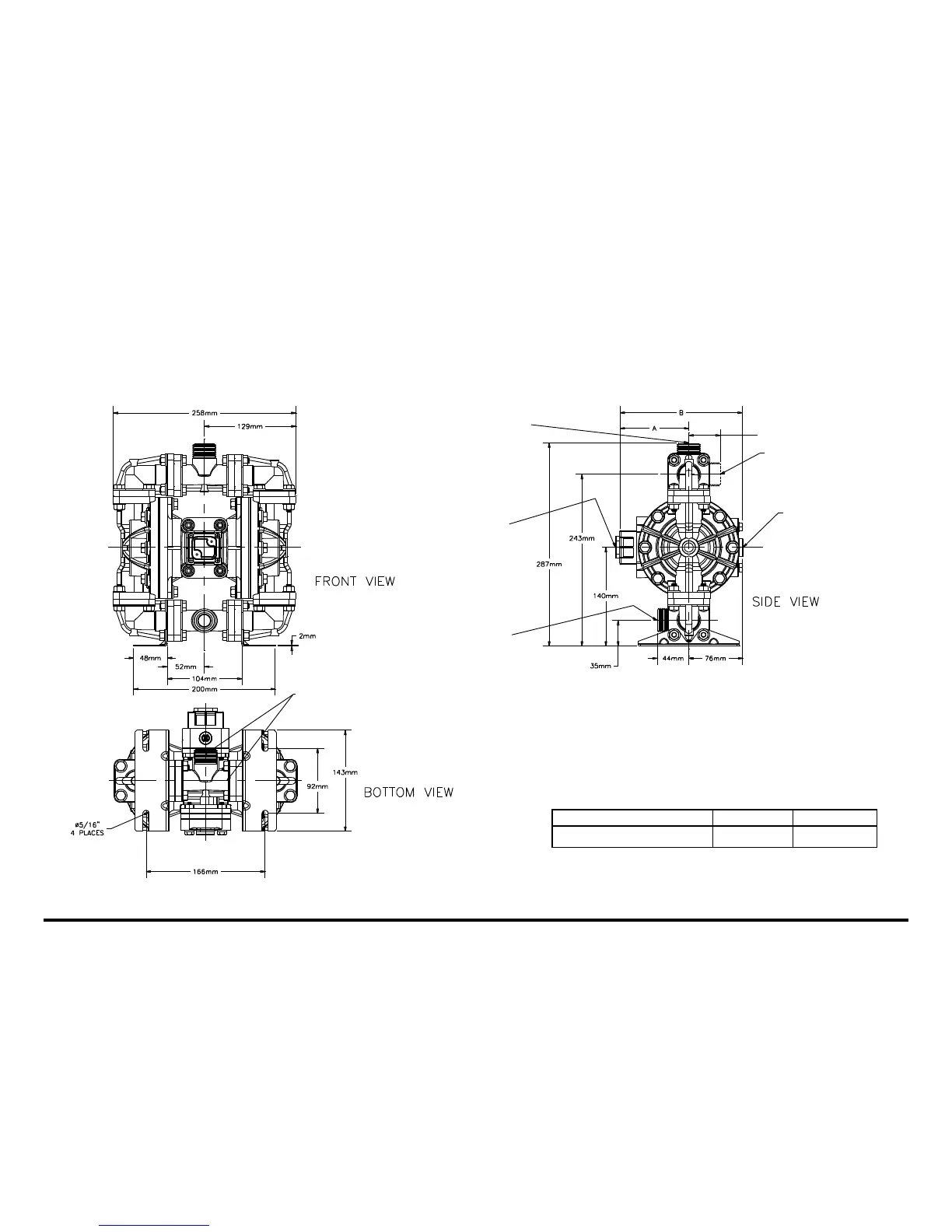

Dimensions in millimeters
Dimensional tolerance: ±3mm
Bolt Pattern Is
Symmetrical About
Centerlines
* Suction Port
1/2" NPT (Internal)
1" NPT (External)
Standard
Encapsulated Muffler:
3/8" NPT Exhaust Port
For Optional Muffler Styles
or Piping Exhaust Air In
Submerged Applications.
* Discharge Port
1/2" NPT (Internal)
1" NPT (External)
44mm
Manifold Can Rotate ± 90°
From Vertical Centerline.
Air Inlet 1/4" NPT
*Both Suction And Discharge Ports are Available in
½" BSP Tapered (Internal)
1" BSP Tapered (External)
DIMENSION A B
Standard Pump 103mm 179mm
