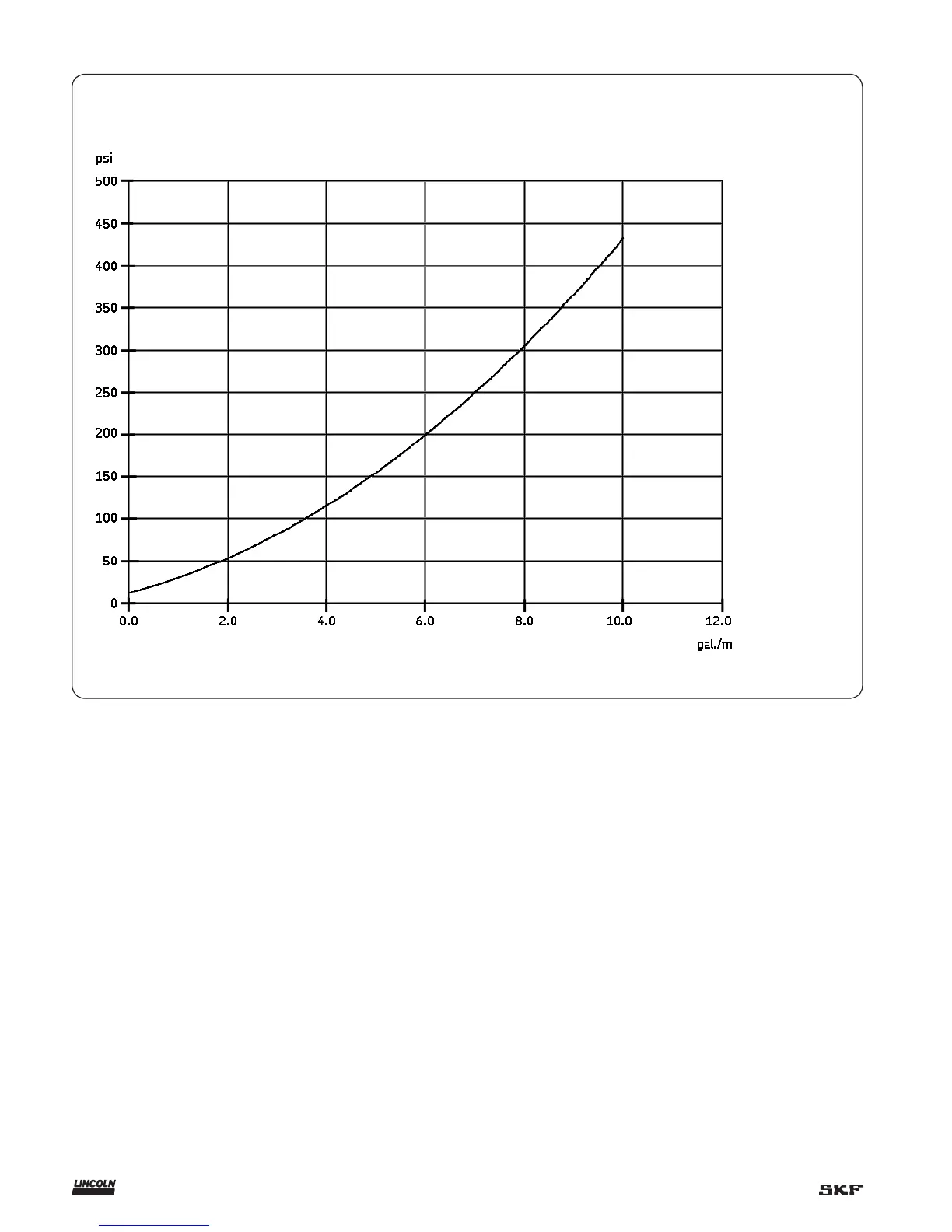

Pressure drop
Note:
This chart repre-
sents pressure vs.
flow rate for the
complete meter
assembly.
The test fluid was
DTE-25 hydraulic
oil at 75 °F
(24 °C).
4
