Program scale factor
1 Press the TOTAL button three times, and
immediately press the RESET button
three times, within a two-second time
frame. The active unit of measure symbol
will flash, indicating that you have suc-
cessfully activated the meter’s program-
mable mode.
2 Press the TOTAL button to advance to the
first digit of the scale factor. The first digit
will be blinking.
3 Press the RESET button to increment the
digit to the desired value.
4 Press TOTAL to move to the next digit.
Repeat these steps for each digit.
5 Once the value has been properly set,
simultaneously press and hold both the
RESET button and the TOTAL button for
three seconds. This will enter the scale
factor value and will exit from program-
mable mode.

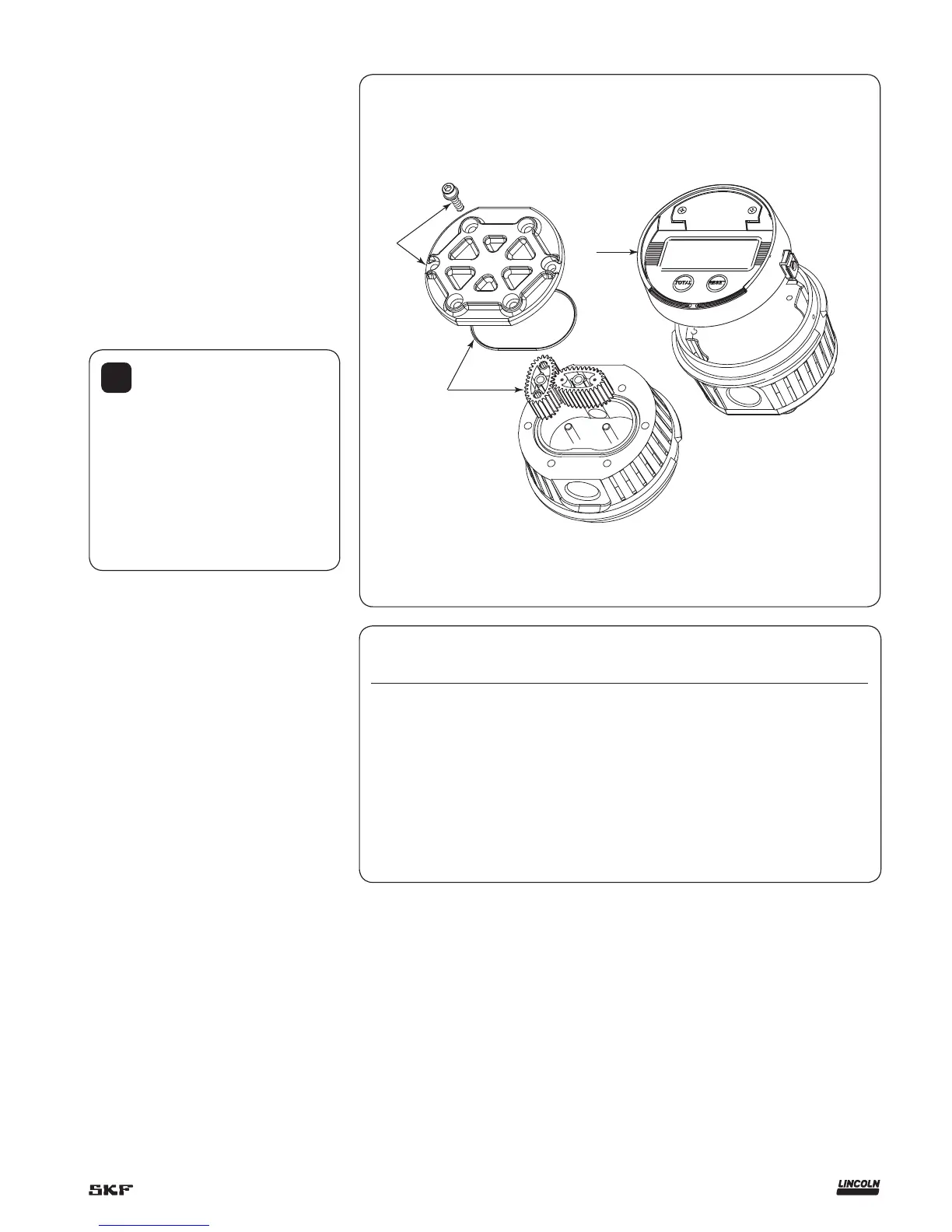

Exploded view
3
2
Parts
Item Description Part no.
1 Housing cover kit with screws (standard) 276920
2 Gear service kit with o-ring (standard) 272377
3 Register module with screws 276921
4 Rubber boot (not shown) 276922
5 Control handle (not shown) 276924
6 Rigid spout with automatic tip (not shown) 282842
7 Replacement battery, 3 V lithium 2/3 AA (not shown) 276923
Apply Meter to Hose
Close the drain valve before starting this
procedure.
1 Attach swivel to meter. Apply thread seal-
ant to the external end of the hose. Rec-
ommended sealant is Loctite® 243.
2 Insert the metal end of the hose into the
swivel. Tighten completely with an open
ended, adjustable, wrench.
!
Notice
Threaded end of meter always
has internal threads. Metal end of hose
must have external threads.
Apply thread sealant, Loctite® 243 or
equivalent, to external end.
Inlet and outlet swivel connections are
either 1/2” NPT or 1/2” BSPP, depend-
ing on meter model.
3
