Page Number - 7
Form 403238
PART OTY DESCRIPTION PART QTY DESCRIPTION
11839 1 Swivel adapter 237686 1 Inlet adapter
11840 1 Packing retainer 237695 1 Extension spring
11841 1 Swivel stud 237738 6 Carriage bolt
13162 1 Spring pin 237739 1 Carriage bolt
15674 2 U-keeper 237769 1 Arbor & ratchet casting
16392 1 Swivel nut 237771 1 Sheave assembly
31035 1 Gasket 237777 1 Name plate
35095 1 Swivel packing 237780 3 Stand off
48217 1 Washer 237781 1 Outboard Axle assembly
48263 1 Packing washer 237784 1 Outboard bearing assembly
48264 2 Thrust washer 237787 1 Outboard support
48327 1 Washer 241901 1 Axle assembly
48385 4 Shim washer 242725 1 Bearing cap
50014 4 Hex head screw 242738 1 Vinyle cap
50016 4 Hex head screw 248494 1 Power spring assembly
51022 7 Hex nut 260389 2 Back-up ring
51304 1 Locknut 261187 2 0-Ring
51412 10 Hex nut 272040 22 Roller
66250 13 Ball 272160 2 Pin .227 X 1.97
66316 1 Tru-arc 272161 2 Pin .227 X 7.23
68424 1 Tru-arc 272162 1 Roller support arm ass’y.
237656 1 Support asembly 272163 4 Pin retainer
237671 1 V-ring seal 272169 1 Retaining ring
237673 1 V-ring seal 272382 1 Hose clamp
237678 1 Outlet adapter 565222 1 Logo label
237683 1 Latch pawl 565253 1 Caution label
237684 1 Swivel assembly 565254 2 Hose capacity label
237685 1 Swivel body

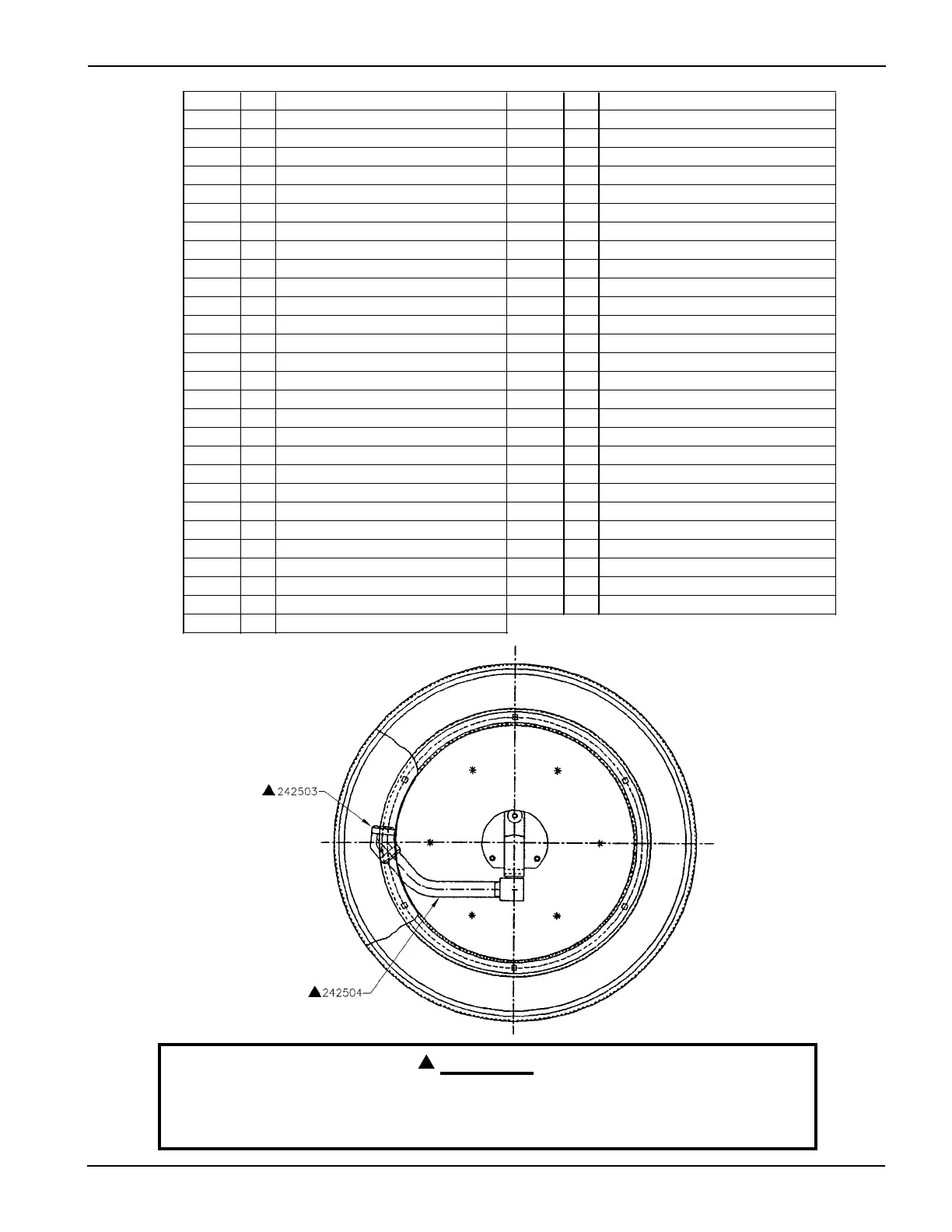

SERVICE PARTS (CONT)
IMPORTANT
ACCESSORY PART NUMBERS 242503 NIPPLE AND 242504 ELBOW ARE REQUIRED FOR
PROPER DELIVERY HOSE INSTALLATION ON LARGE I.D. HOSES (5/8" I.D. AND LARGER).
THESE PARTS ARE NOT PART OF REEL AND ARE SOLD SEPARATELY.
©
©
