Linde T20 SP - Reduction Gear Removal and Reinstallation

Service Training
Section 2
Page 6

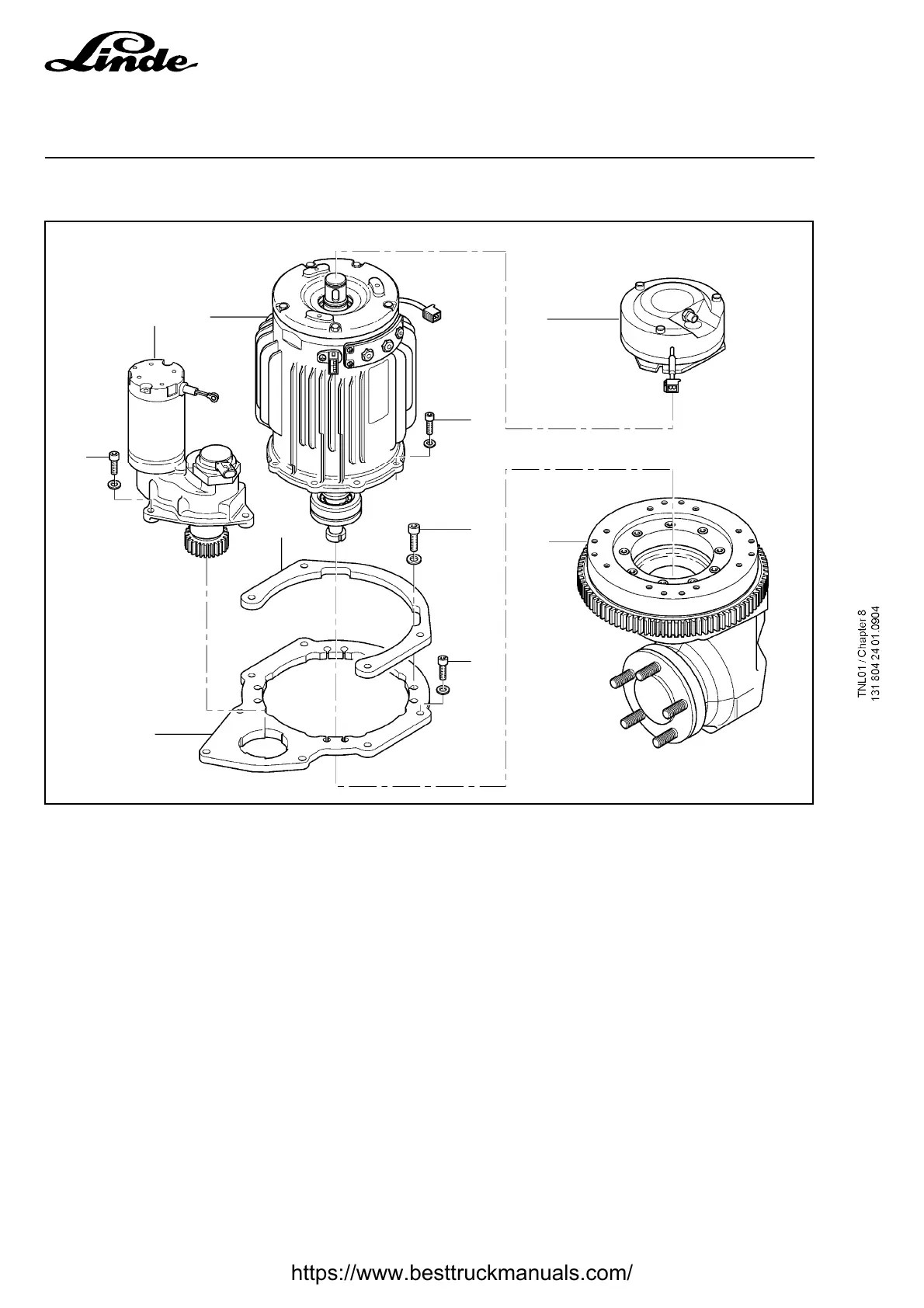

1 Steering motor reducer
2 Traction motor
3 Electrohydraulic brake
4 Reduction gear
5 Screw CHC M6 X 20 (quantity 8)
Tightening torque 9.5 Nm
6 Screws Chc M10X30 (quantity 8)
Tightening torque 64 Nm
7 Screws Chc M10X35 (quantity 4)
Tightening torque 64 Nm
8 Drive unit support plate
9 Shim (for rubber or non-branded rubber drive wheel ).
10 Screws Chc M10X30 (quantity 3)
Tightening torque 64 Nm
2
5
6
7
8
4
3
1
10
9
2.2.2 Removal / reinstallation of reduction gear
