Linde T20 SP - Page 96

Service Training
Section 6
Page 42
13 14 1 2
789
10
12
5
6
4
3

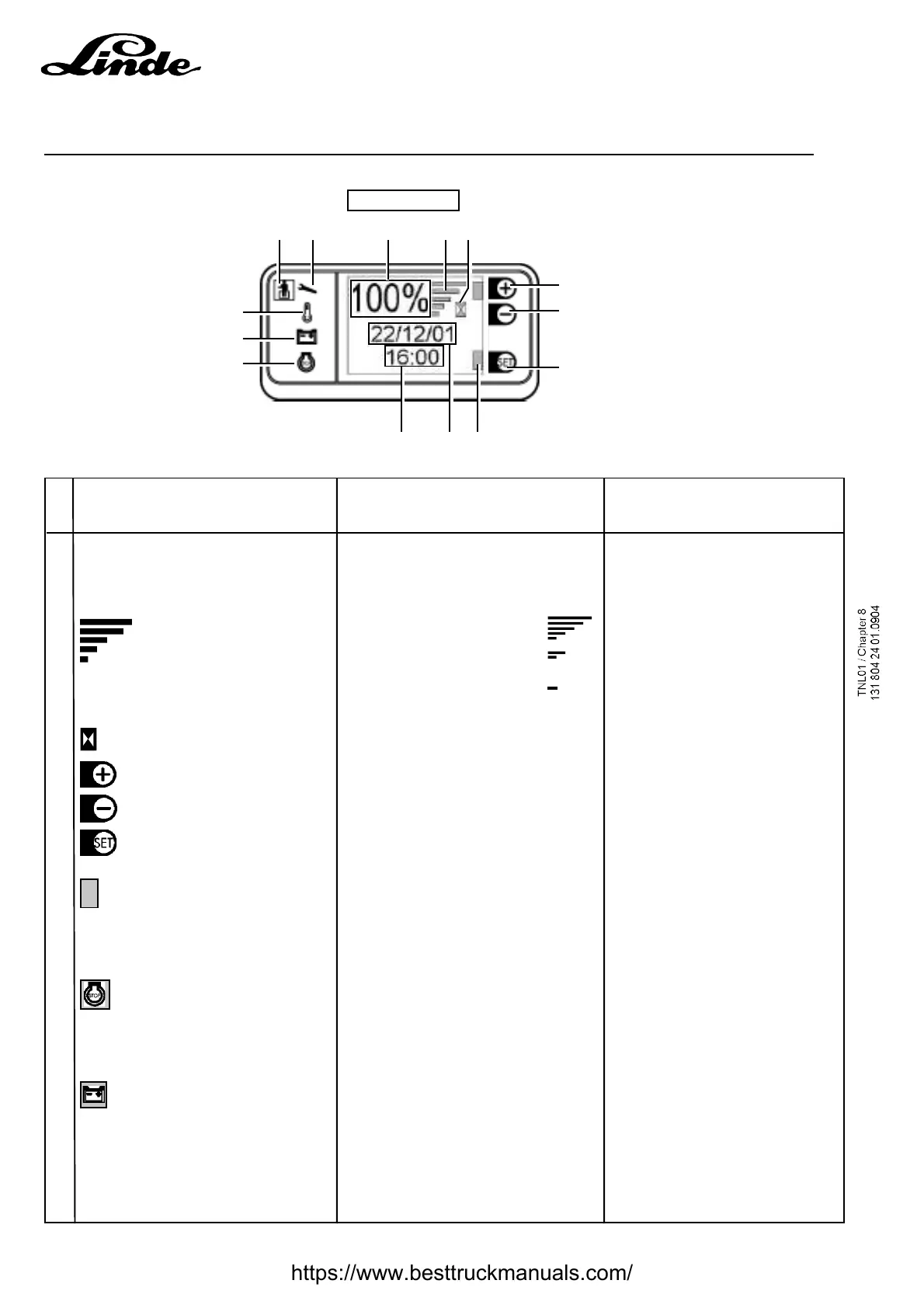

Main screen
11
Full load: 100%
- Weak load: 10%
- Discharged: 0%
- Full load: 100%
- Weak load: 10%
- Discharged: 0%
- Indicates hour meter operation
- to display another screen
- to display the previous screen
- to access the control screens
- Speed control fault: Truck stop
- Blinking:charging < or = at 10%
- Fixed: battery discharged
1 Battery charge level in %
2 Charge level of
battery represented by 5
bars
3 Egg-timer (flashing)
4 Control button
5 Control button
6 Control button
7 Marking of active buttons
8 Display of date
9 Display of time
10 Alarm STOP (red)
11 Alarm BATTERY (red)
Description Meaning
Remarks/
Screen messages
-> Recharge to be provided
-> Recharge mandatory
Note:0 % corresponds to 80% max
discharge to protect the battery.
Other function: setting key
Other function: setting key
->For setting, see page
->For setting, see page
Message: "Engine fault..."
- Restart attempts by resetting con-
tact key
- Alarm always active: Call service
technician
-> Recharge to be provided
Message: Weak battery charge level
-> Lifting cut
-> Recharge mandatory
Message: "Battery level=0%
lift qualified"
