03/27/08 Page 3 of 7

LINE 6 CONFIDENTIAL

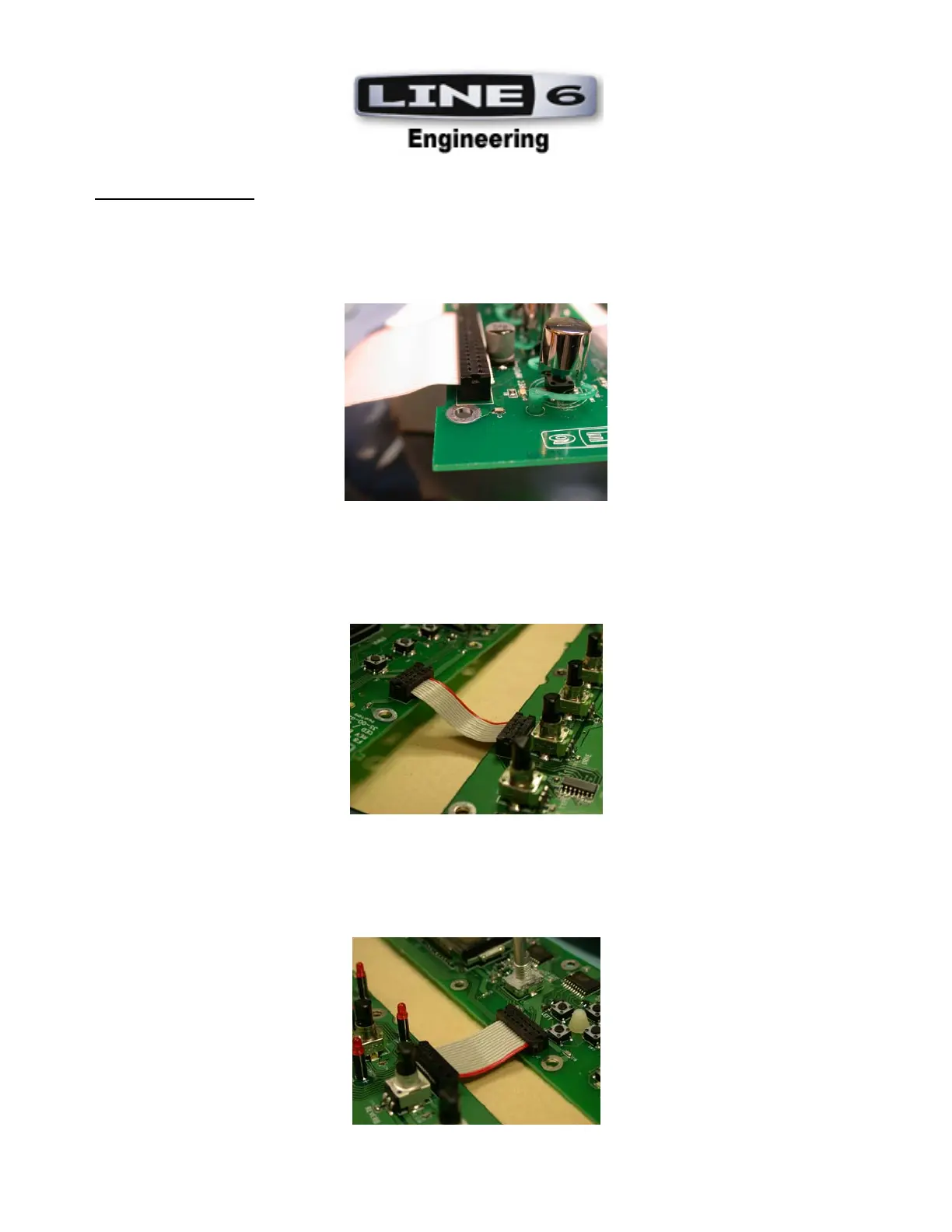

6. RIBBON CABLES:

1. 40-PIN RIBBON CABLE: One 40-pin ribbon cable (21-30-0052) is to be staked flush on the TOP SIDE

of the User Interface Upper breakaway PCB (35-00-0272) at H1. See Photo.

2. 10-Pin Ribbon Cable (21-30-0053-2) should be staked from J100 on User Interface Middle PCB (35-00-

0272-1) to J1 on UI Upper PCB (35-00-0272). See Photo.

3. 14-Pin Ribbon Cable (21-30-0054) should be staked from J102 on User Interface Middle PCB (35-00-0272-

1) to J2 on UI Upper PCB (35-00-0272). See Photo.
