Linear AE1000Plus User Manual

21

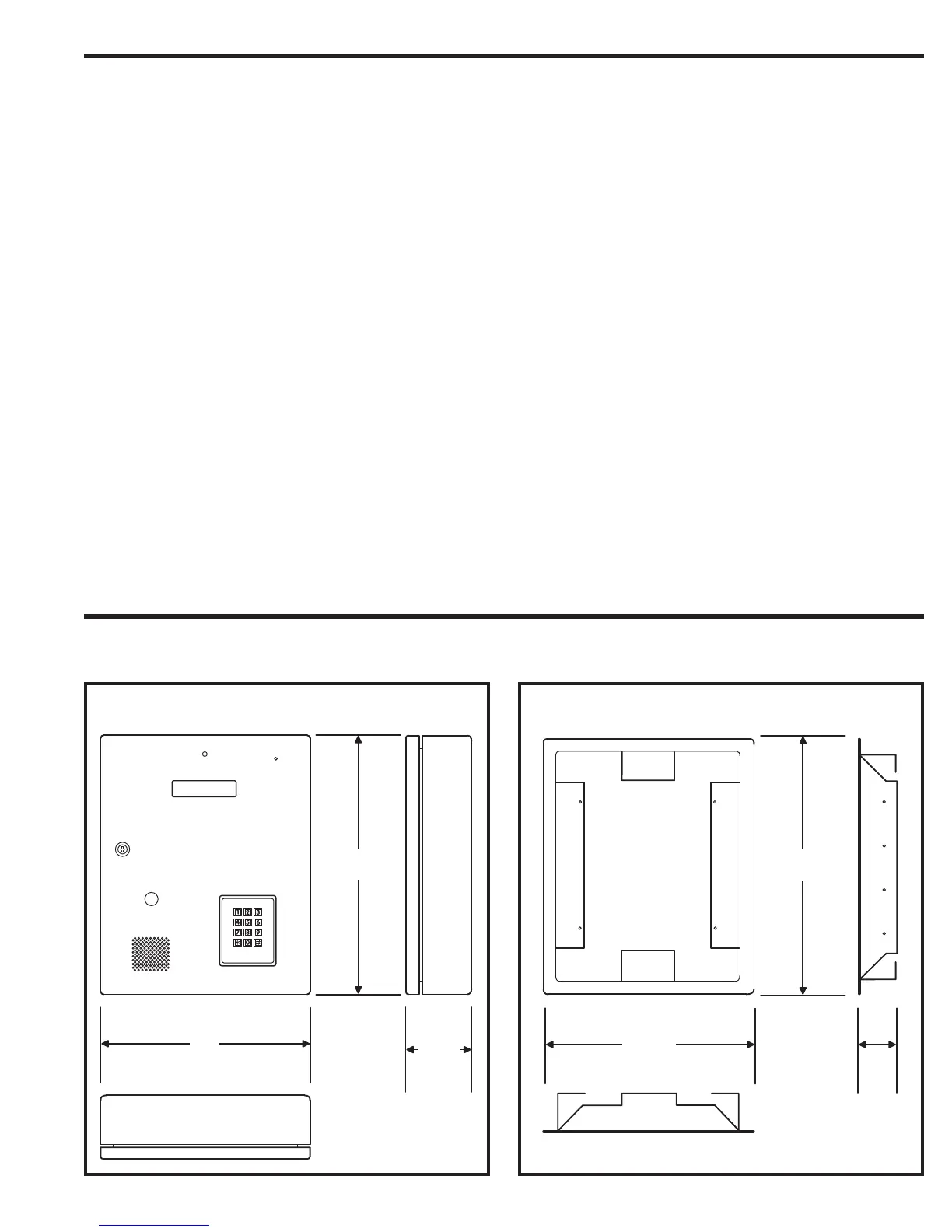

Dimension Drawing
15-1/8"
18-3/8"
2-5/8"
OPTIONAL TRIM RING
13"
16-1/4"
3-1/2"
AE1000PLUS
Specifi cations
MECHANICAL
Case dimensions: 13” W x 16-1/4” H x 3-1/2” D
ELECTRICAL
Voltage: 16-24 Volts AC or 12-24 Volts DC
Current: 1500 mA @ 16 VAC maximum
Backup Battery: Externally charged 12 Volt DC source
Outputs: Relay Channels A-D
Form “C” 3 Amps @ 30 Volts maximum
Inputs: Four normally closed door sense inputs
Four normally open exit request inputs
Two WIEGAND reader inputs
Three PBUS inputs
Network: Three-wire network
RADIO
Frequency: 318 MHz ± 500 KHz @ 23°C
Bandwidth: 300 KHz Typical
Sensitivity: -97 dBm Minimum (-100 dBm Typical)
Encoding: Linear MegaCode
®
Format
ENVIRONMENTAL
Temperature: -22°F to 149°F (-30°C to 65°C)
Humidity: 5% to 95% non-condensing
