5

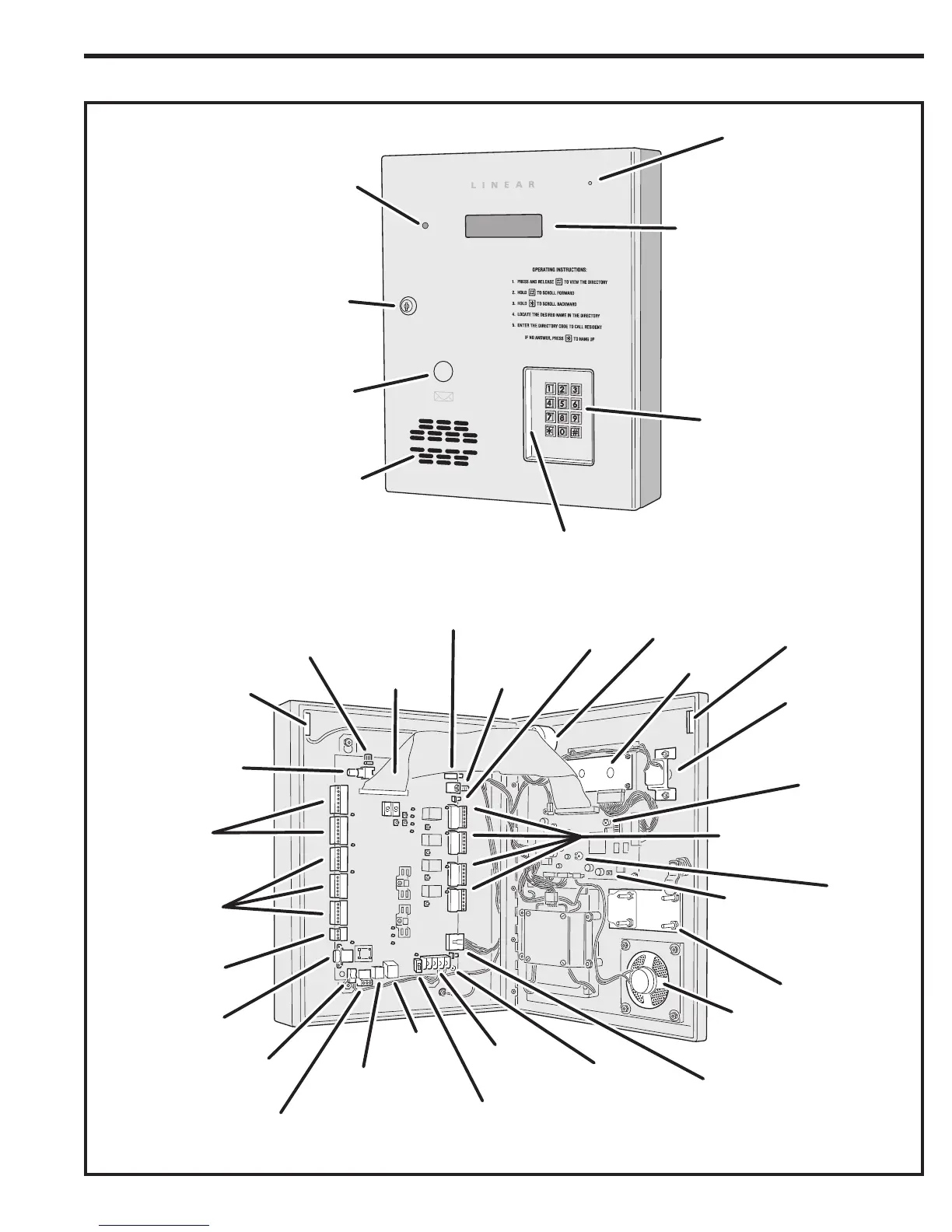

Component Locations
OPTIONAL
CAMERA
DISPLAY
CABINET
LOCK
OPTIONAL
POSTAL
LOCK
SPEAKER
KEYPAD
LIGHTING
KEYPAD
MICROPHONE
EARTH
GROUND
STUD
POWER
TERMINALS
RELAY
TERMINALS
WIEGAND
INPUT
TERMINALS
TELEPHONE
TERMINALS
TELEPHONE
JACK
TAMPER
SWITCH
MAIN POWER
SWITCH
RECEIVER
RANGE KNOB
ANTENNA
CONNECTOR
MICROPHONE
DISPLAY
POSTAL LOCK
MOUNTING PLATE
SPEAKER
DISPLAY
CONTRAST
ADJUSTMENT
CPU/INTERFACE
CONNECTOR
VIDEO
CONNECTOR
CAMERA
CONNECTOR
OPTIONAL
CAMERA
PBUS
TERMINALS
NETWORK
TERMINALS
AM-MIO
INTERFACE
TELEPHONE
INTERFACE
CONNECTOR
RS-232
PORT
PROCESSOR MODULE
POWER CONNECTOR
TAMPER
MAGNET
SYSTEM
RESTART
BUTTON
SPEAKER
VOLUME
ADJUSTMENT
FOR EASY WIRING, THE UNIT'S TERMINAL BLOCKS
CAN BE UN-PLUGGED FROM THE CIRCUIT BOARD
INSTALLATION NOTE:
TAMPER
SWITCH
CONNECTOR
