Accessory Overview PBUS Accessories
Several compatible accessories are available to connect to the three
6-wire communications “PBUS” inputs. Up to six PBUS accessories can
be used with each AE1000Plus unit.
AM-RRR Remote Radio Receiver
For wireless transmitters, connect the Model
AM-RRR high-gain superheterodyne UHF receiver.
The receiver is housed in a weather-resistant
enclosure and can be mounted indoors or
outdoors. Gaskets and a weather-tight wiring strain
relief seal the unit from the elements.
AM-RPR Radio Proximity Receiver
The Model AM-RPR functions as a remote device
that supplies localized radio reception for the
AE1000Plus In a typical installation, the AM-RPR
would be mounted in a plastic single-gang electrical
box next to the controlled opening. When the user
requires access, their transmitter must be activated
within three inches of the AM-RPR faceplate.
AM-KP Exterior Keypad
The Model AM-KP is housed in a rugged cast
aluminum enclosure designed for exterior
installations. The die-cast keys have bright,
easy-to-read yellow graphics. The keypad can
be mounted to a pedestal or directly to a wall.
A keylock secures the keypad to the mounting
backplate.
AM-KPI Interior Keypad
The Model AM-KPI keypad is housed in a rugged,
plastic enclosure designed to be mounted indoors
in a standard single-gang electrical box. Tamper
resistant screws secure the keypad to its mounting
plate. The die-cast keys have bright, easy-to-read
yellow graphics and is illuminated with white
LEDs. The keypad is supplied with a satin-chrome
bezel and three interchangeable colored bezels
(white, ivory, & bronze) to customize the keypad
appearance for the installation.
AM-CRI Card Reader Interface
The Model AM-CRI expands the standard two
AE1000Plus Wiegand inputs by supporting one
or two additional 26-bit Wiegand input devices per
AM-CRI interface used.
Wiegand Accessories
The two WIEGAND format inputs connect WIEGAND devices to the
AE1000Plus. Linear offers a Wiegand format proximity reader. Most other
manufacturer’s 26, 30 & 31-bit WIEGAND output devices can also be
used with the AE1000Plus.
AM-PR Proximity Reader
The Model AM-PR is a radio-based reader that
works with either proximity tags (Model AM-PT) or
proximity cards (Model AM-PC), both of which are
slotted to attach to key rings. Upon reading a user’s
tag or card, the reader sends the entry data via a
Wiegand output to the AE1000Plus. An integral
LED confi rms to the user that access is granted.

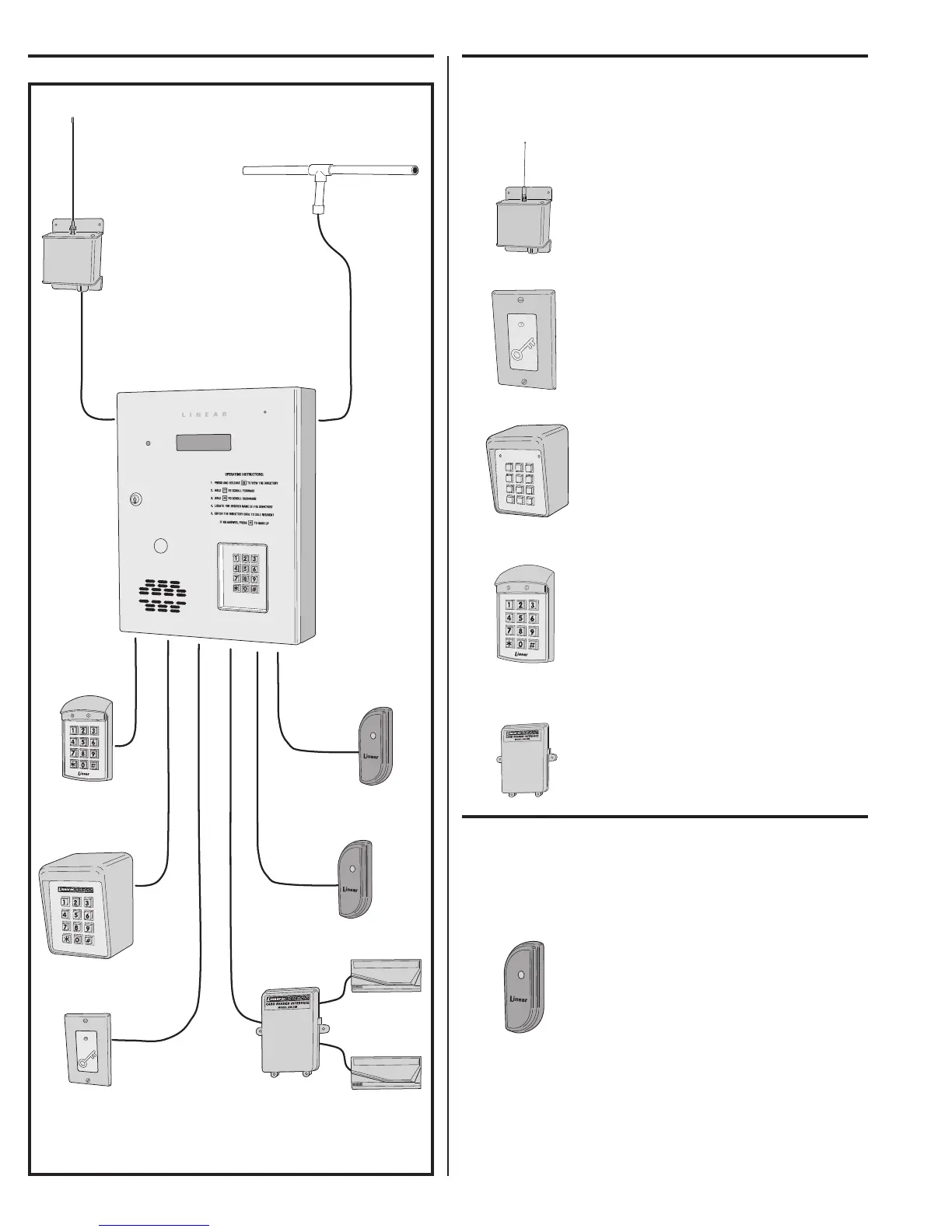

AM-RRR
*
5
6
7
8
9
0
#
1
2
3
4
AM-KP
AM-KPI
AM-RPR
AM-PR
AM-CRI
AM-PR
PROXIMITY
READERS
WIEGAND
ACCESSORIES
AM-RRR
REMOTE
RADIO
RECEIVER
EXA-2000
REMOTE
RADIO
ANTENNA
AM-RPR
RADIO
PROXIMITY
RECEIVER
AM-KP
EXTERIOR
KEYPAD
AM-KPI
INTERIOR
KEYPAD
AM-CRI
CARD
READER
INTERFACE
PBUS
ACCESSORIES
AE1000Plus
TELEPHONE ENTRY
& ACCESS CONTROL
SYSTEM
WIEGAND
CARD
READERS
