PLUG INTERFACE CABLE
INTO THE INTERFACE
CONNECTOR ON
CD/MP3 PLAYER
PLUG LEFT AND RIGHT
AUDIO CABLES INTO
CD/MP3 PLAYER
AUDIO JACKS
AUDIO
RIGHT
AUDIO
LEFT

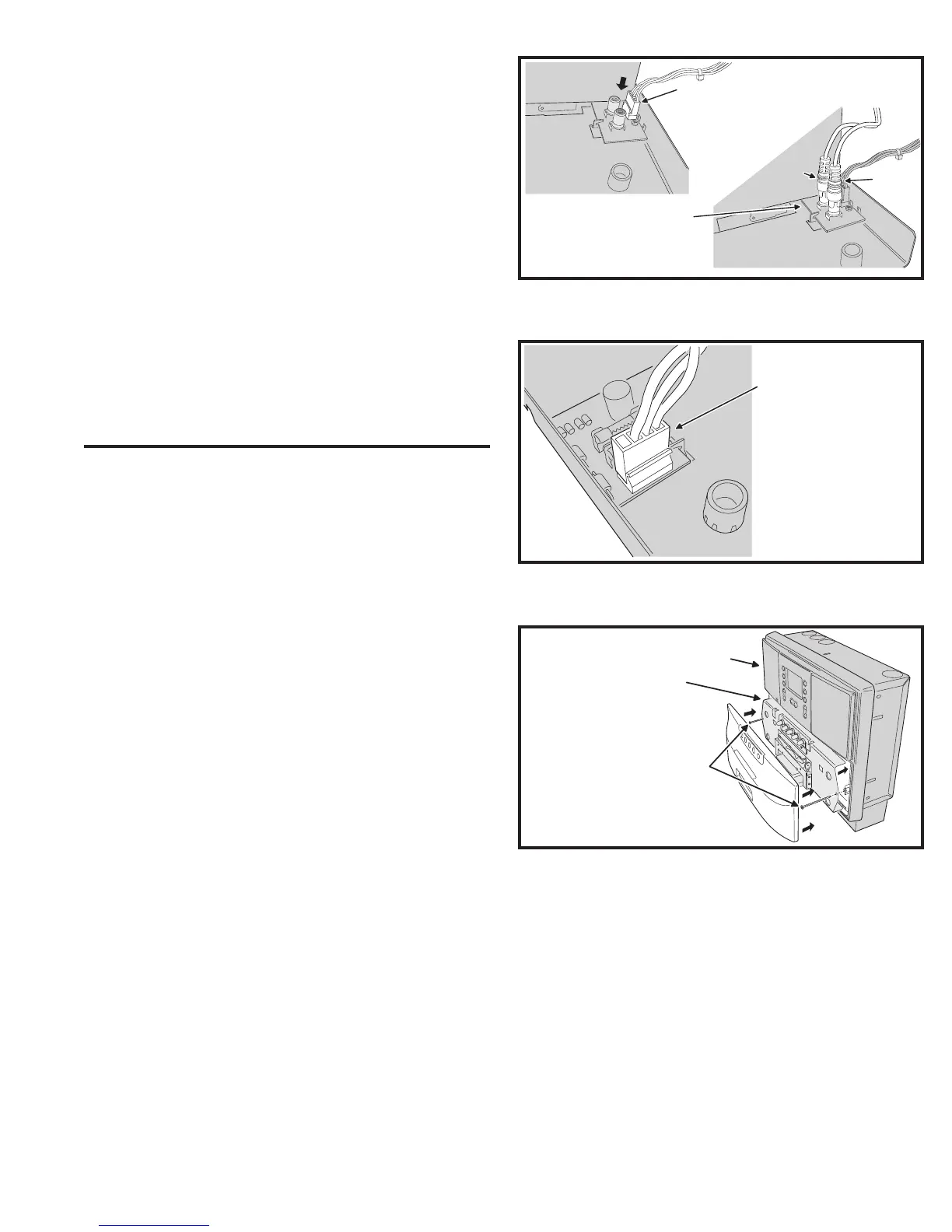

Figure 25. CD/MP3 Player
Interface and Audio Cable Connection
PLUG POWER CONNECTOR
FROM THE TRANSFORMER
INTO CD/MP3 PLAYER'S
POWER CONNECTOR
Figure 26. CD/MP3 Player Power Connection
CD/MP3 PLAYER SLIDES
INTO BOTTOM OF WALL
HOUSING
MASTER MOUNTED IN
TOP OF WALL HOUSING
BE SURE THAT THE AREA BEHIND
CD/MP3 PLAYER IS CLEAR OF CABLES
SECURE CD/MP3 PLAYER
WITH TWO LONG SCREWS,
THEN SNAP ON THE COVER
Figure 27. CD/MP3 Player into Wall Housing
Mounting the Master Station with the Optional
DMCMP3 Player (continued)
9. Insert the CD/MP3 Player interface cable into the INTERFACE
connector on the CD/MP3 Player (see Figure 25).
10. Insert the CD audio cable’s BLACK RCA plug into the AUDIO LEFT
jack on the CD/MP3 Player, then insert the cable’s RED RCA plug
into the AUDIO RIGHT jack on the CD/MP3 Player (see Figure 25).
11. Plug the connector from the TE2D power transformer in the wall
housing to the CD/MP3 Player’s POWER connector (see Figure 26).
12. Be sure that the area where the CD/MP3 Player will slide into the
wall housing is free of cables and connectors that might be in the way
when the player is inserted.
13. Attach the CD/MP3 Player to the wall housing using the two long
screws provided as shown in Figure 27. DO NOT OVERTIGHTEN
THE SCREWS THE FRAME MIGHT DISTORT OR CRACK!
14. Install the CD/MP3 Player faceplate by pressing it onto the player
(see Figure 27).
POWERING UP THE SYSTEM
After all connections have been made and the unit(s) are
installed into the wall housing, follow these steps to power
up the DMC1 system.
1. Turn the circuit breaker controlling the power to the wall housing
transformer(s) ON.
2. Check all functions of the system. Refer to the Owner’s Manual
supplied with the DMC1 Master Station for operation details. If any
diffi culties are encountered, recheck all connections.
