Linear DMC1 Finish-Out Instructions

1
✔ DO NOT install the DMC1 system until after the application of any wall covering
material.
✔ DO NOT install any satellite speakers that are rated other than 45-ohms
impedance. Damage to the amplifi er will occur.
✔ DO NOT power up the DMC1 Master Station unit until all remote stations and
speakers are connected.
✔ DO NOT connect Cat-5 wire if you are unsure of its terminating point. Connecting a
door speaker to a Room Station may result in system damage.
✔ DO ensure that all rough-in instructions have been followed before power is applied
to the DMC1 system.
✔ DO NOT attach devices unauthorized for use with this system. Authorized devices
include: (1) DMCMP3 CD/MP3 Player; (2) Audio components connected via the
line level or docking inputs.
✔ DO NOT install Patio Stations in locations subject to direct sunlight or water spray.
Patio stations MUST be installed in protected areas such as a covered patio or porch.
✔ DO NOT connect extra cables that may have been run for future speaker additions.
Care must be taken to ensure these cables are not connected to the DMC1 Master
Station unit. Un-terminated cables (no station) connected to the DMC1 Master
Station may cause electronic feedback that will damage the Master Station unit.
✔ DO NOT over-tighten the screws for the remote stations or the Master Station as
the plastic face panels may crack or strip out.
✔ Use only M&S Systems certifi ed replacement parts and have them installed by a
qualifi ed dealer or installer. Unauthorized substitutions can result in fi re, electric
shock, or other hazards.
✔ Upon completion of any service or product repair, have the dealer or installer
conduct a safety check to ensure the system is in proper operating condition.
✔ Use only a damp cloth to clean the DMC1 Master Station and Room Stations. Do
not use liquid cleaners or aerosol cleaners.
Failure to adhere to these instructions can cause equipment
malfunction and void any warranty covered by Linear LLC.
FINISH-OUT CAUTIONS

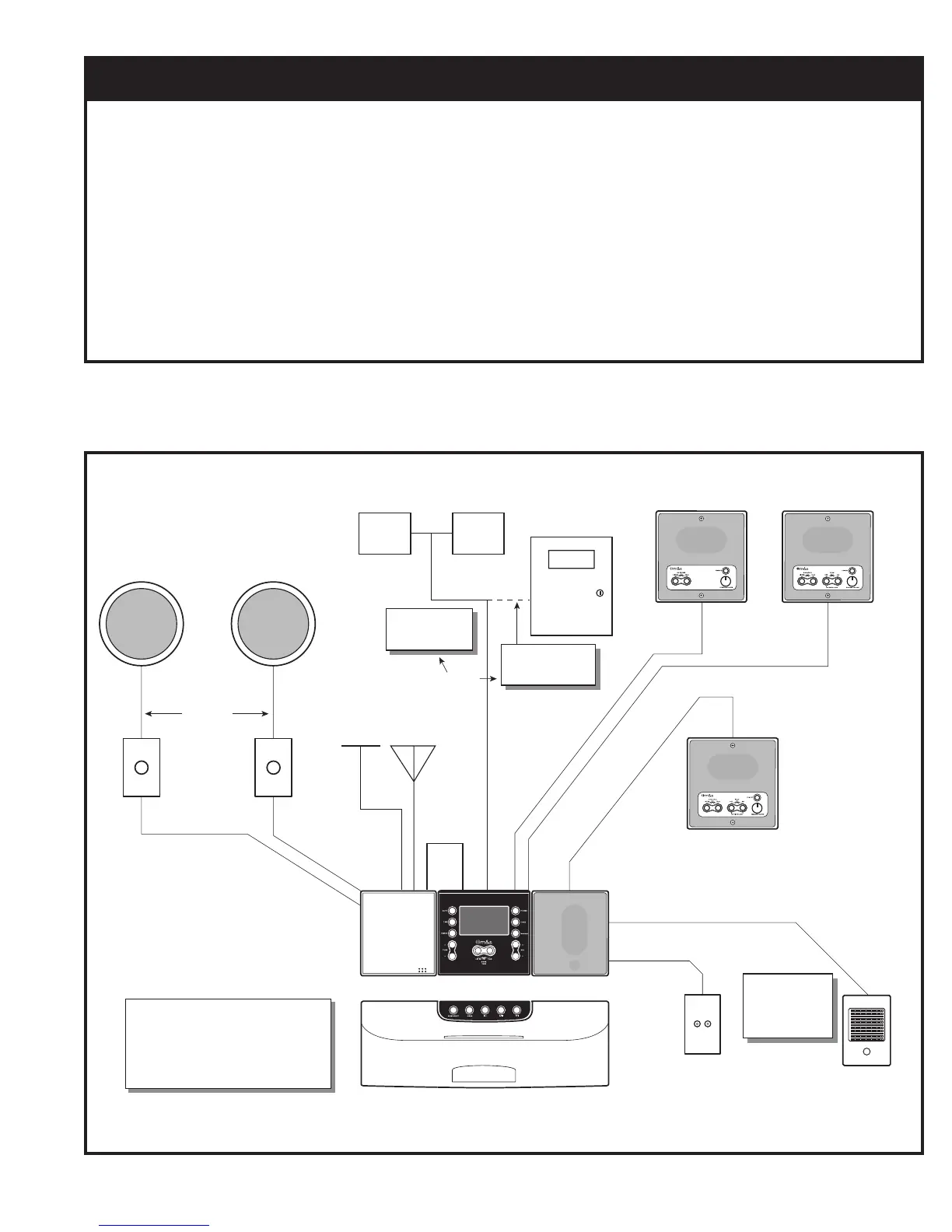

DMC1 Music/Communication System (DMC1H Housing Required)
DMCMP3 CD/MP3 Player
CAT5
Audio Coax
CAT5
MC3
or
MC8
Modular
Door
Chime
Antennas
Included with
Wall Housing
AM FM
CAT5
CAT5
DMC1RW
Patio Station
DMC1R
Standard Room Station
DMC1RS
Standard Room Station
w/Remote Scan
Supports up to 15 room or patio stations and / or
speakers (ALL TYPES 15 TOTAL)
Security Panel
Dry Contact
Closure for
Panic Operation
Dry Contact
Closure
Door Release
Remote Power
Transformer
Door Release
Mechanism
RT11
DRW
Either
MVC1
Volume Control
(1-Gang Box)
MS2SX5SC
(NR8-5)(NR8-5)
(DMC1HR)
(DMC1HRW or DMC1HRWS)
(DMC1HR)
Audio Input
Wall Plate
for External
Audio Source
DS3B
Door Speaker
w/Bell Button
(ME3)
MS4DCXSC
This diagram is for product reference only.
Refer to the installation instructions for
product limits and specifications.
Model numbers in parentheses represent
standard rough-in components.
DMC1
EXAMPLE
SYSTEM
DIAGRAM
Door Stations
Available in
White, Bright Brass,
Antique Brass,
or Nickel
(DMC1F Frame Required)
(DMC1HC Housing Required)
NR8P
8" Flush Mount
Speaker
NR8P
8" Flush Mount
Speaker
Figure 1. System Diagram
