Basic Controller Programming (Cont.)
Run Alarm and Pre-start Alarm
The factory default is Run Alarm on and a 3-second Pre-start Alarm.
The operator’s beeper will sound 3 seconds before the operator starts.
The options are:
• Run Alarm Off and Pre-start Alarm Off
• Run Alarm On and Pre-start Alarm Off
• Run Alarm On and Pre-start Alarm On for 1-9 Seconds
Maximum Open Direction Current Setting
To detect obstacles or mechanical problems with the gate, the operator
monitors its motor current. If the open current load increases by more
than the programmed maximum load range number, the operator will
stop, reverse a short distance, then stop again. The Auto Close Timer
will be disabled, and another open request will be required to start the
operator again. If after restart, the overload or an open obstacle happens
again before the open limit is reached, the operator will lockout and
sound the alarm.
The maximum load range number may be adjusted by pressing and
holding the “enter” button until the previously set number ashes.
Using the + and - buttons, set the programmed range number so that a
minimal force (50-75 lbs.) will activate a reversal should an obstruction
occur, but high enough to keep the gate moving under normal conditions
without interruption.
Maximum Close Direction Current Setting
To detect obstacles or mechanical problems with the gate, the operator
monitors its motor current. If the close current load increases by more
than the programmed maximum load range number, the operator
will stop, reverse, and travel to the full open position. Should a open
obstruction input or an open direction inherent entrapment condition
occur prior to the gate reaching the open limit, the operator will lockout
and sound the continuous tone alarm. Another close request will be
required to start the operator again. If after restart, the overload or a
close obstacle happens again before the close limit is reached, the
operator will lockout and sound the alarm. If the auto close timer is set,
when the close obstruction input is cleared, the gate will close when the
auto close timer expires.
The maximum load range number may be adjusted by pressing and
holding the “enter” button until the previously set number ashes.
Using the + and - buttons, set the programmed range number so that a
minimal force (50-75 lbs.) will activate a reversal should an obstruction
occur, but high enough to keep the gate moving under normal conditions
without interruption.

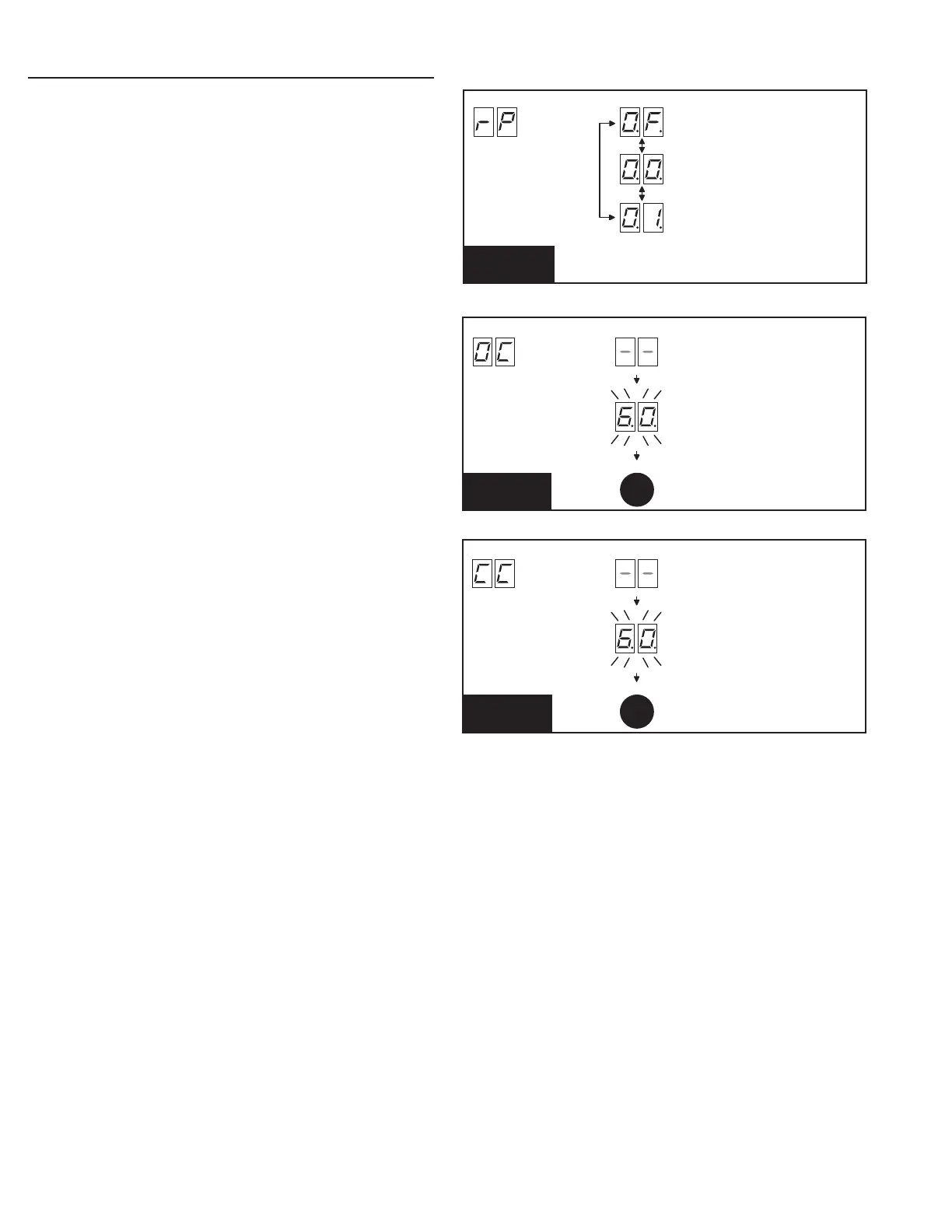

FUNCTION
RUN ALARM ON
PRE-START ALARM OFF
RUN ALARM ON
PRE-START ALARM ON FOR 1 - 9 SECONDS
OPTIONS
RUN ALARM
PRE-START ALARM
PRESS UP OR
DOWN TO CYCLE
THROUGH OPTIONS
PRESS ENTER TO
SELECT AN OPTION
RUN ALARM OFF
PRE-START ALARM OFF
"RP"
FUNCTION
MAXIMUM LOAD RANGE NUMBER WILL BE
DISPLAYED. ADJUST TO THE PROPER VALUE
OPTIONS
PRESS AND HOLD THE ENTER BUTTON
ENTER
PRESS ENTER TO STORE THE VALUE
"CC"
MAX CLOSE
CURRENT
FUNCTION
MAXIMUM LOAD RANGE NUMBER WILL BE
DISPLAYED. ADJUST TO THE PROPER VALUE
OPTIONS
MAX OPEN
CURRENT
PRESS AND HOLD THE ENTER BUTTON
ENTER
PRESS ENTER TO STORE THE VALUE
"OC"
