HSLG Slide Gate Operator Installation Guide - 22 - P1220 X14

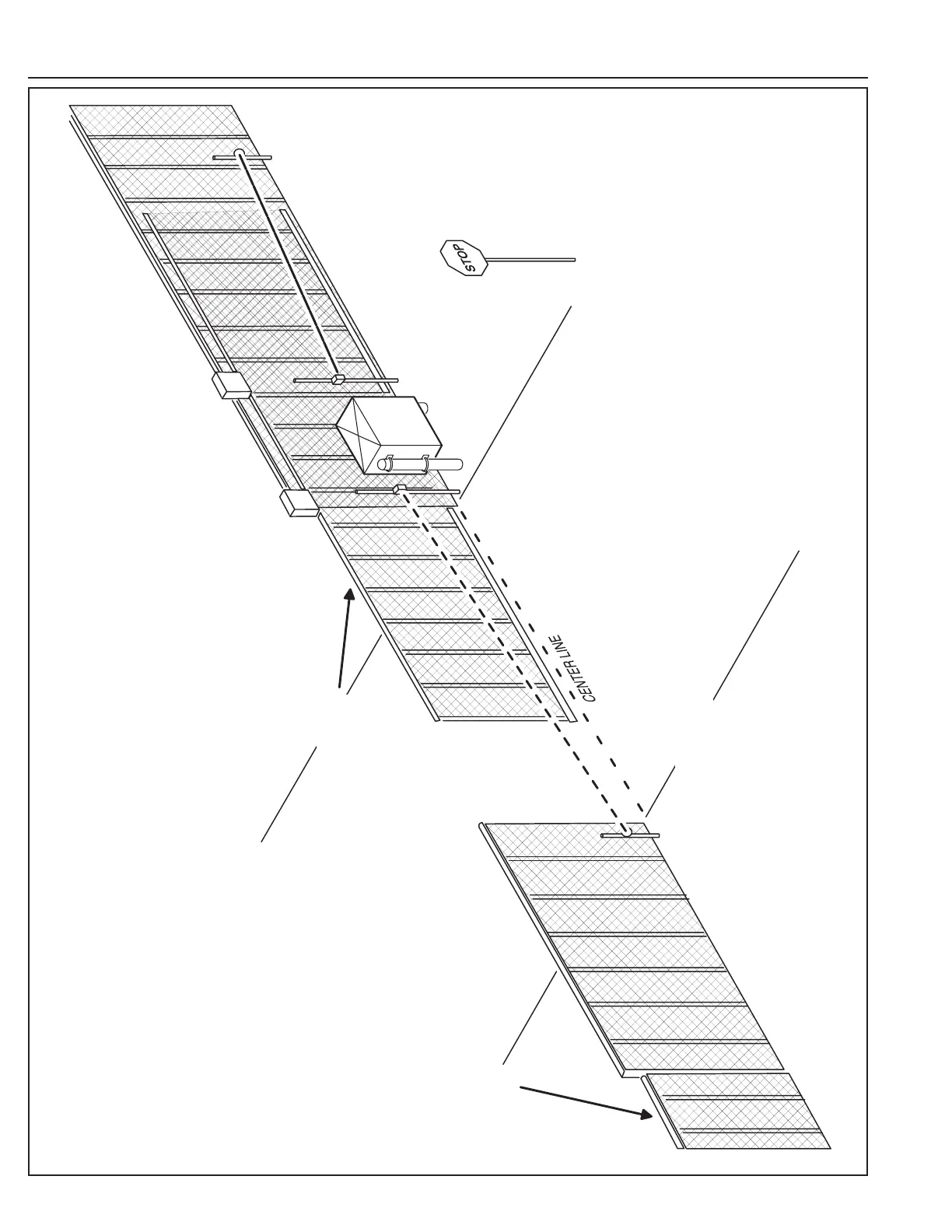

Photoeye Installation Illustration
CARE MUST BE TAKEN IN THE PLACEMENT OF PHOTOEYES
TO MINIMIZE NUISANCE TRIPPING
PHOTOEYE TO PROTECT FENCE LINE
OUTSIDE OF PROTECTED AREA
WIRED FOR OPEN OBSTRUCTION
SEE ACCESSORY CONNECTIONS FOR DETAILS
OF WIRING PHOTOEYES
SEPARATE PEDESTRIAN WALKGATE
REQUIRED 7 FEET MINIMUM DISTANCE
FROM GATE
PHOTOEYE TO GUARD
POCKET AREA. WIRED
FOR OPEN OBSTRUCTION
PHOTOEYE CAN BE MOUNTED ACROSS DRIVE WIRED
FOR REVERSE ONLY, ON EITHER SIDE OF THE GATE
THIS DRAWING IS INTENDED TO DRAW ATTENTION TO POSSIBLE
LOCATIONS FOR THE INSTALLATION OF CONTACT OR NON-CONTACT
OBSTRUCTION SENSING DEVICES. OTHER AREAS OF ENTRAPMENT
MAY EXIST DEPENDING ON EACH SPECIFIC INSTALLATION.
