HSLG Slide Gate Operator Installation Guide - 21 - P1220 X14

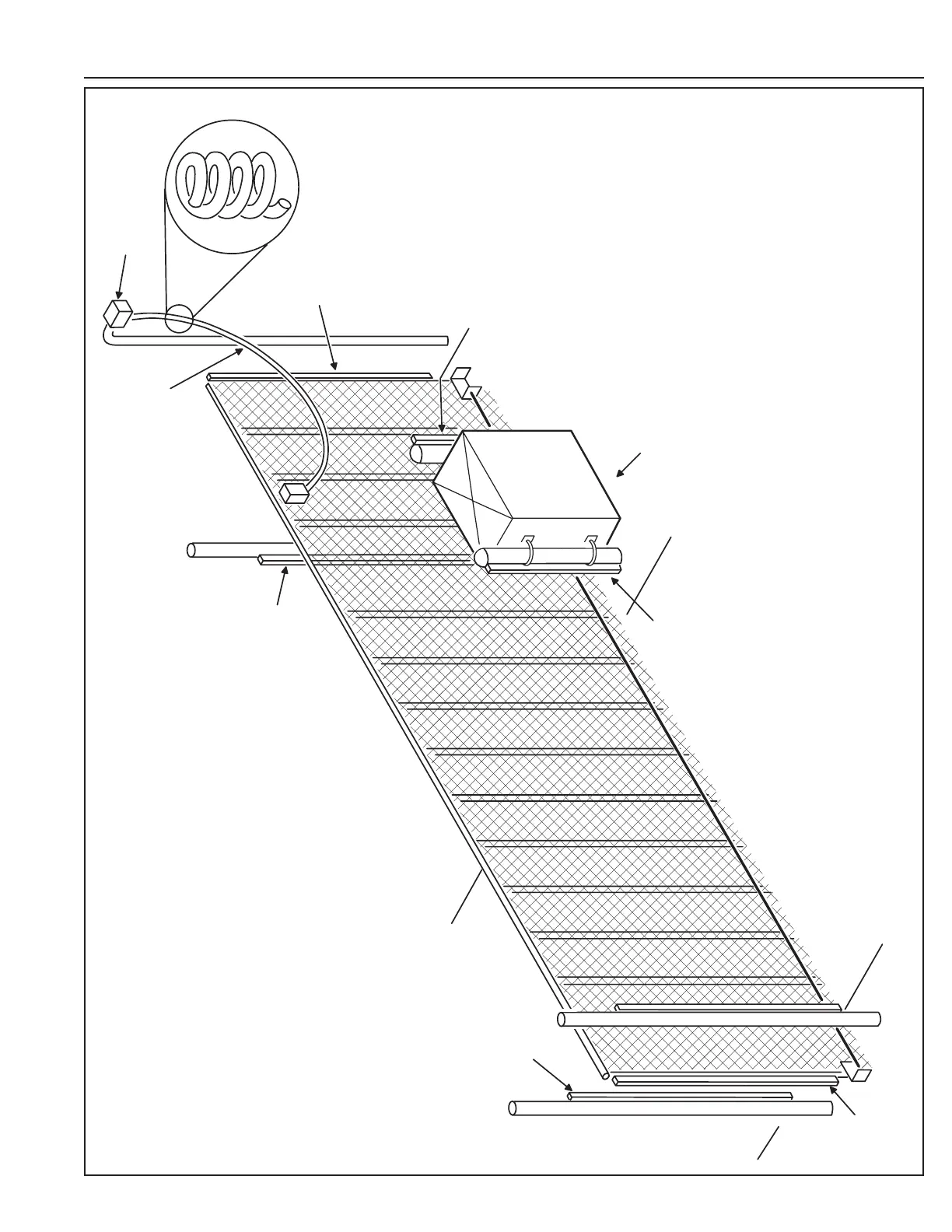

Safety Edge Layout Illustration #2
NOTES:
1. WIRE THESE EDGES FOR CLOSE OBSTRUCTION
2. WIRE THESE EDGES FOR OPEN OBSTRUCTION
3. ON LEADING EDGE, WIRE FOR CLOSING OBSTRUCTION
OR REVERSING IF DESIRED
4. ON TRAILING EDGE, WIRE FOR OPEN OBSTRUCTION
REFER TO ACCESSORY CONNECTIONS PAGES FOR DETAILS
5. IF SENSOR EDGES ARE HARD WIRED TO THE OPERATOR, CARE
MUST BE TAKEN IN ROUTING THE WIRES SUCH THAT THEY DO
NOT BECOME DAMAGED DURING NORMAL OPERATION
(AVOID PINCHING AND ABRASION)
THIS DRAWING IS INTENDED TO DRAW ATTENTION TO POSSIBLE
LOCATIONS FOR THE INSTALLATION OF CONTACT OR NON-CONTACT
OBSTRUCTION SENSING DEVICES. OTHER AREAS OF ENTRAPMENT
MAY EXIST DEPENDING ON EACH SPECIFIC INSTALLATION.
JUNCTION BOX MOUNTED
TO FENCE POST
COILED CORD SHOULD EXTEND
EQUALLY DURING OPEN AND CLOSE
SEE NOTE
ITEM #4
SEE NOTE
ITEM #1
SEE NOTE
ITEM #2
SLIDE GATE OPERATOR WIRED DIRECT TO EDGE
USING JUNCTION BOX AND COIL CORD
SEE NOTE
ITEM #2
SEE NOTE
ITEM #1
SEE NOTE
ITEM #1
SEE NOTE
ITEM #3
