Linear HSLG Series - Loop Layout Illustration

HSLG Slide Gate Operator Installation Guide - 19 - P1220 X14

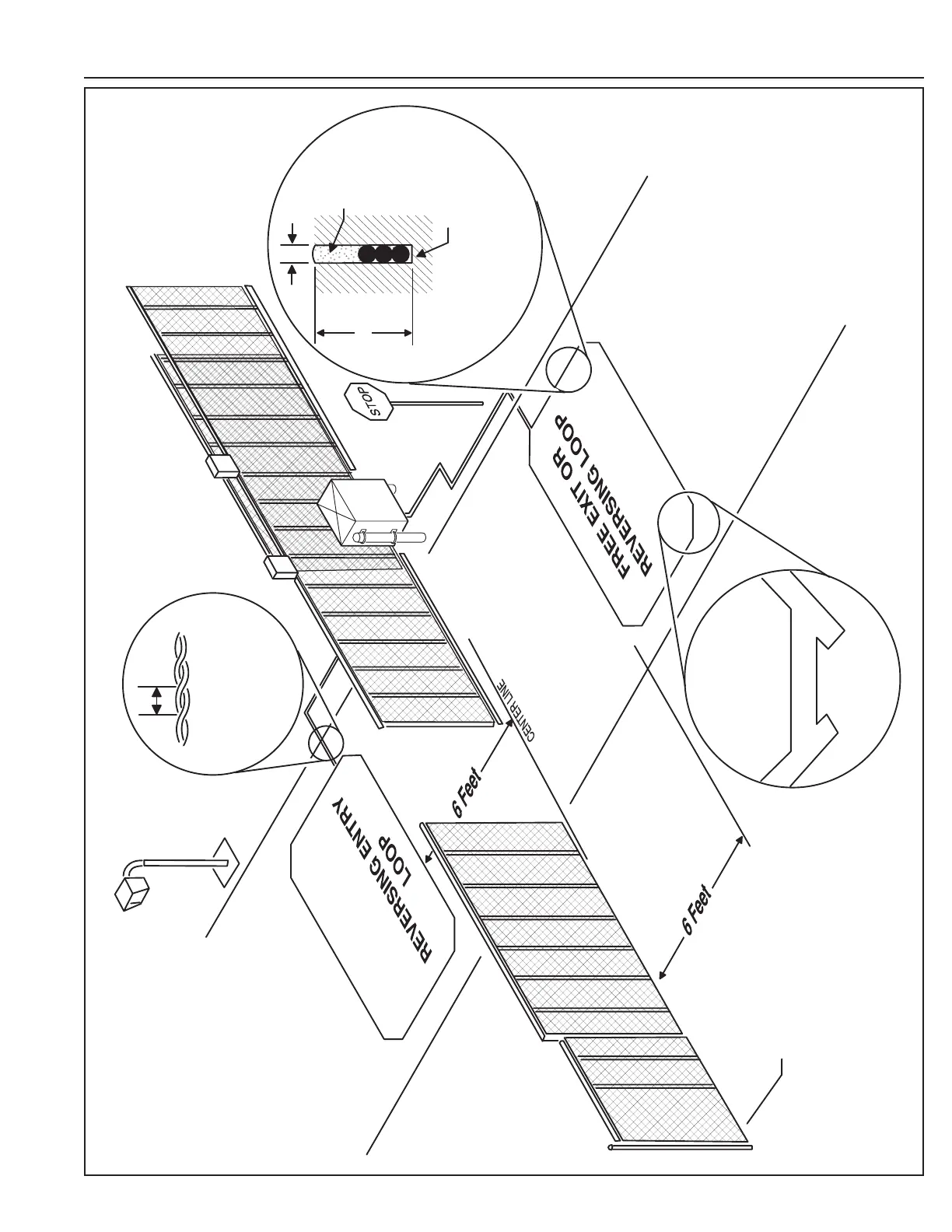

Loop Layout Illustration
SEPARATE PEDESTRIAN GATE REQUIRED 7 FEET MINIMUM DISTANCE FROM GATE
2"
3/8"
LOOP SEALANT
MULTIPLE TURNS
REFER TO LOOP
INSTALLATION NOTES
FOR DETAILS
TWIST WIRE FROM END OF
LOOPS BACK TO OPERATOR
AT LEAST SIX TIMES PER
FOOT
2" MAX.
USE RELIEF CUTS
AT CORNERS
