HSLG Slide Gate Operator Installation Guide - 18 - P1220 X14

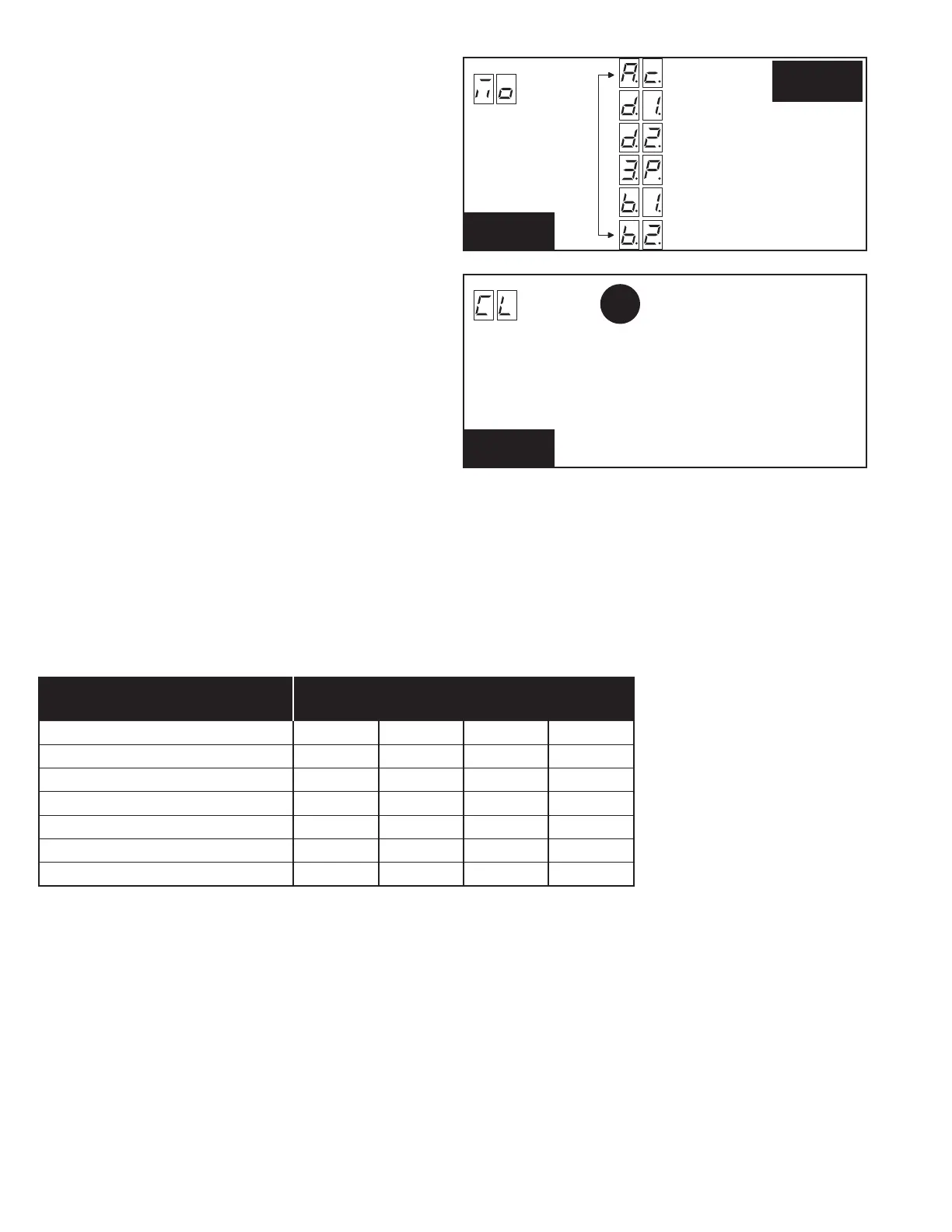

Motor Type Selection
The factory sets the default for the Controller to match the type of
motor in the operator. If required, change the motor selection option to
a different type of motor used in the operator. The only two options used
with this model operator are:
AC Motor Only
3 Phase AC Motor
Reset Controller to Factory Defaults
The Controller can be reset with this function. ALL PROGRAMMED
DATA WILL BE LOST, and the factory defaults will be loaded. This
function will not erase radio transmitters, current sense values, or
motor type. Transmitters must be deleted with the two functions above.
FUNCTION
DO NOT SELECT
NOT USED IN THIS MODEL
AC MOTOR ONLY
OPTIONS
PRESS UP OR
DOWN TO CYCLE
THROUGH OPTIONS
PRESS ENTER TO
SELECT AN OPTION
MOTOR TYPE
SELECTION
NOTE: SELECTION
MUST MATCH
MOTOR BOARD!
"MO"
3 PHASE AC MOTOR
DO NOT SELECT
NOT USED IN THIS MODEL
DO NOT SELECT
NOT USED IN THIS MODEL
DO NOT SELECT
NOT USED IN THIS MODEL
FUNCTION
RESET TO
FACTORY DEFAULTS
"CL"
ENTER
WHILE "CL" IS DISPLAYED, PRESS ENTER
ALL PROGRAMMED DATA WILL BE CLEARED
AND THE FACTORY DEFAULTS WILL BE
STORED IN MEMORY.
NOTE: THIS FUNCTION WILL NOT ERASE
TRANSMITTERS, CURRENT SENSE VALUES,
OR MOTOR TYPE.
Minimum settings for programming. If an “illegal” setting is chosen, the operator will ash EN 15 upon
exiting programming and self-adjust settings to the minimums below.
NOTE: Jumper wire must be cut for Settings 1-5.
MAXIMUM SETTINGS
By gate type
MONITORING REQUIRED
Single (Gate 1) Host Paired (Gate 1)
DIP Switch Setting OPEN CLOSE OPEN CLOSE
0 – Swing/Slide Yes Yes Yes No
1 – Standard Barrier No No No No
2 – Slow Barrier No No No No
3 – Variable Barrier Yes Yes Yes No
4 – Not Used Yes Yes Yes No
5 – Swing Override No Yes No No
www.LinearGateOpeners.com | (888) 378-1053 | Sales@LinearGateOpeners.com
