CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 34 -
Attention:
Grease new bearings
When installing
Grease able to resist > 230 .℃

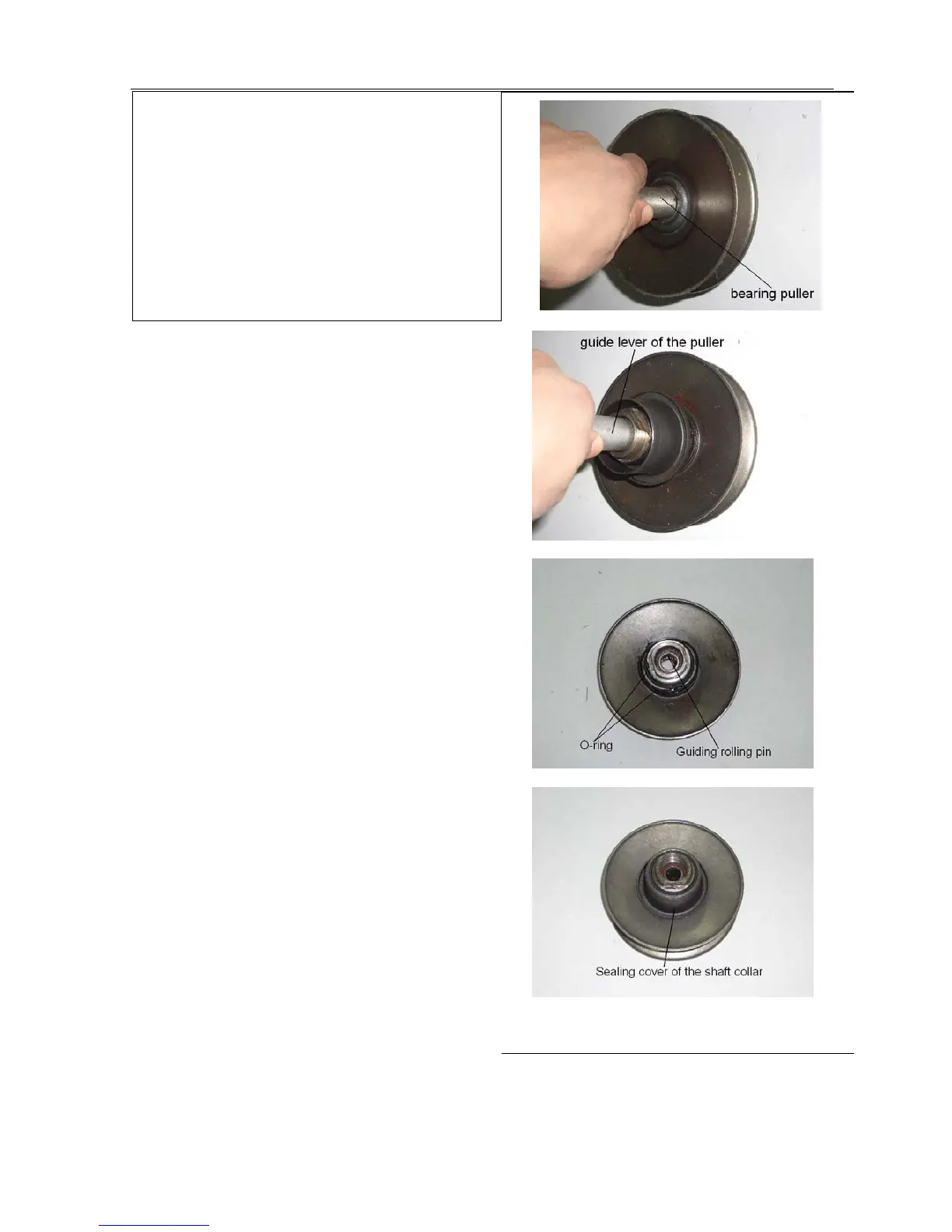

Drive in the new needle bearing, keeping the “mark”
side up.
The clutch / transmission Pulley assembly
Assemble the transmission pulley guide pin and oil
seal.
Install the sealing cover of the collar.
Assemble the transmission pulley disk and the
spring to the clutch assembly, pressing down with
the spring compressor for the clutch spring.
Install the 28mm fix nut and tighten it.
Torque:50~60kg·m 35~40ft lbs
