Linksys E5400 User Manual

•
•
•
•
•
•
•

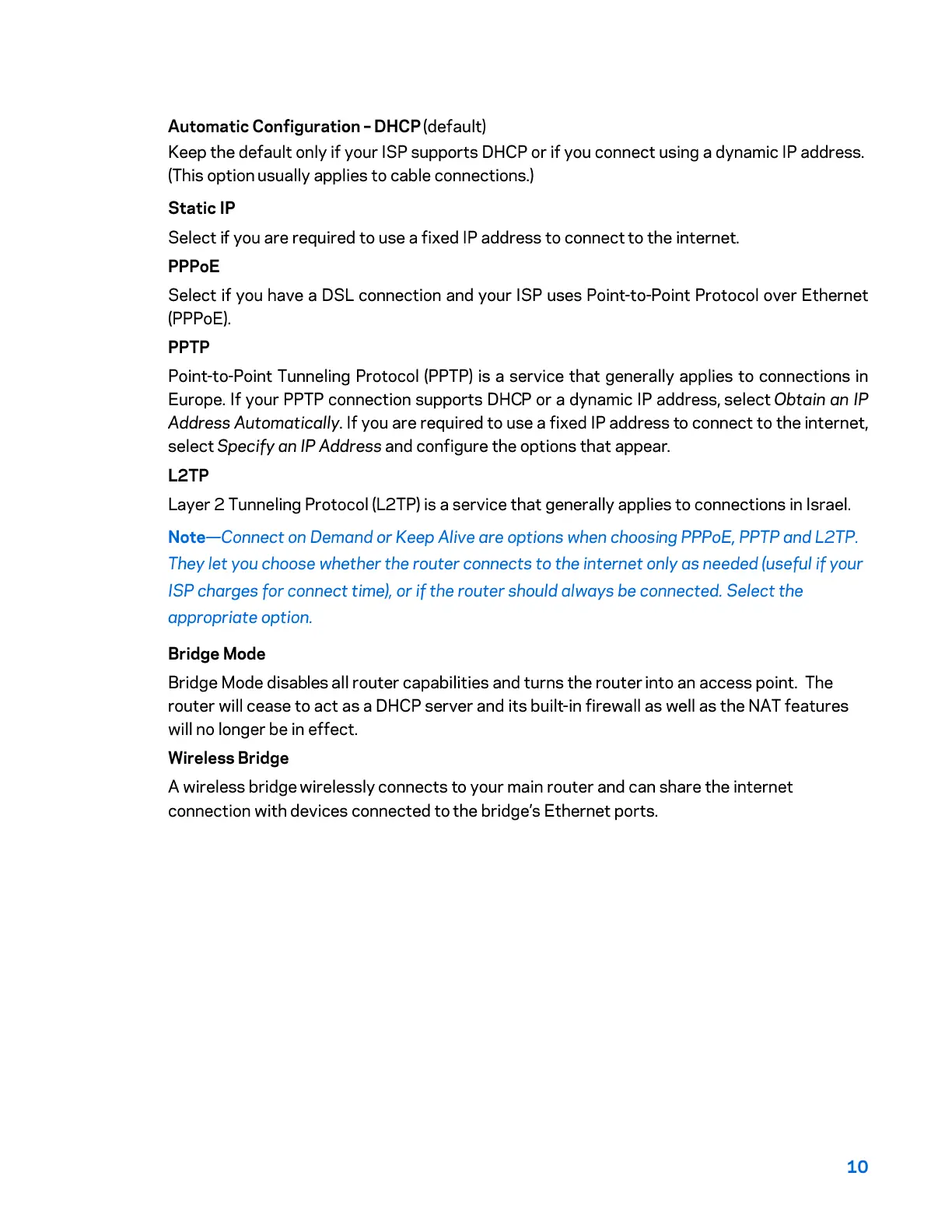

Automatic Configuration - DHCP (default)
Keep the default only if your ISP supports DHCP or if you connect using a dynamic IP address.
(This option usually applies to cable connections.)
Static IP
Select if you are required to use a fixed IP address to connect to the internet.
PPPoE
Select if you have a DSL connection and your ISP uses Point-to-Point Protocol over Ethernet
(PPPoE).
PPTP
Point-to-Point Tunneling Protocol (PPTP) is a service that generally applies to connections in
Europe. If your PPTP connection supports DHCP or a dynamic IP address, select Obtain on IP
Address Automatically. If you are required to use a fixed IP address to connect to the internet,
select Specify an IP Address and configure the options that appear.
L2TP
Layer 2 Tunneling Protocol (L2TP) is a service that generally applies to connections in Israel.
Note-Connect on Demand or Keep Alive are options when choosing PPPoE, PPTP and L2TP.
They
let you choose whether the router connects to the internet only as needed (useful if your
ISP charges for connect time), or if the router should always be connected. Select the
appropriate option.
Bridge Mode
Bridge Mode disables all router capabilities and turns the router into an access point. The
router will cease to act as a DHCP server and its built-in firewall as well as the NAT features
will no longer be in effect.
Wireless Bridge
A wireless bridge wirelessly connects to your main router and can share the internet
connection with devices connected to the bridge's Ethernet ports.
10

Linksys E5400 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
Product type	Tabletop router
On/off switch	Yes
Product color	Black
LED indicators	LAN, Power, WLAN, WPS
DSL WAN	No
WAN connection type	RJ-45
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	0.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Certification	FCC
Processor cores	1
Firewall security	SPI
Security algorithms	WPA2-Enterprise, WPA2-PSK
Package type	Box
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	112 mm
Width	170 mm
Height	33 mm
Weight	172 g
