Linksys E5400 User Manual

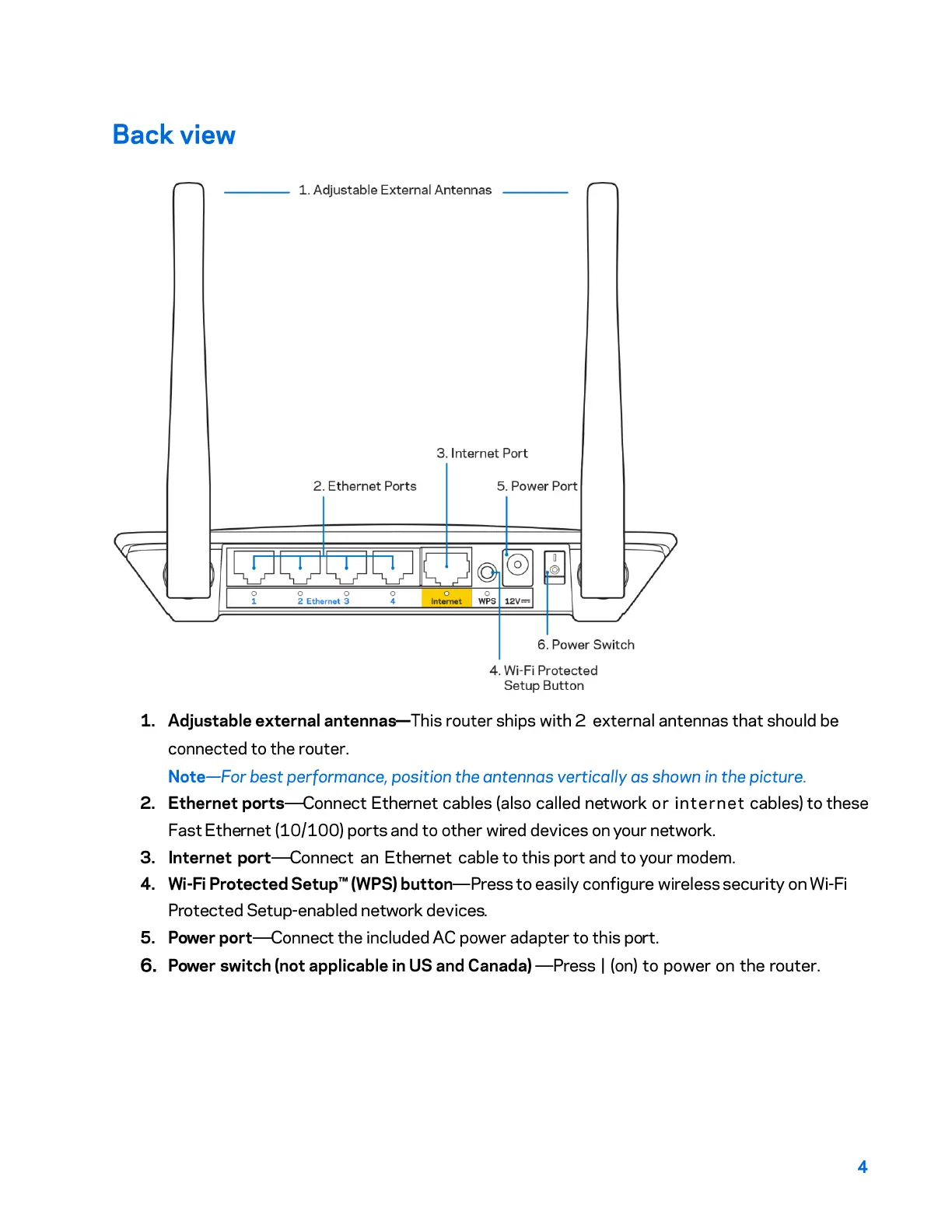

Back view
--- 1. Adjustable External Antennas
0
1
2. Ethernet Ports
0 0
2 Ethernet 3
0
4
3. Internet Port
5. Power Port
0 O
Internet
WPS 12V=
6. Power Switch
4.
Wi-Fi Protected
Setup Button
1. Adjustable external antennas- This router ships with 2 external antennas that should be
connected
to the router .
Note-For best performance , position the antennas vertically as shown in the picture .
2. Ethernet
ports-Connect Ethernet cables (also called network or internet cables) to these
Fast
Ethernet (10/100) ports and to other wired devices on your network .
3. Internet
port-Connect an Ethernet cable to this port and to your modem.
4. Wi-Fi Protected
Setup™ (WPS) button-Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled
network devices.
5. Power
port-Connect the included AC power adapter to this port .
6. Power switch (not applicable in US and Canada) -Press I (on) to power on the router .
4

Linksys E5400 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
Product type	Tabletop router
On/off switch	Yes
Product color	Black
LED indicators	LAN, Power, WLAN, WPS
DSL WAN	No
WAN connection type	RJ-45
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	0.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Certification	FCC
Processor cores	1
Firewall security	SPI
Security algorithms	WPA2-Enterprise, WPA2-PSK
Package type	Box
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	112 mm
Width	170 mm
Height	33 mm
Weight	172 g
