Linksys E5400 User Manual

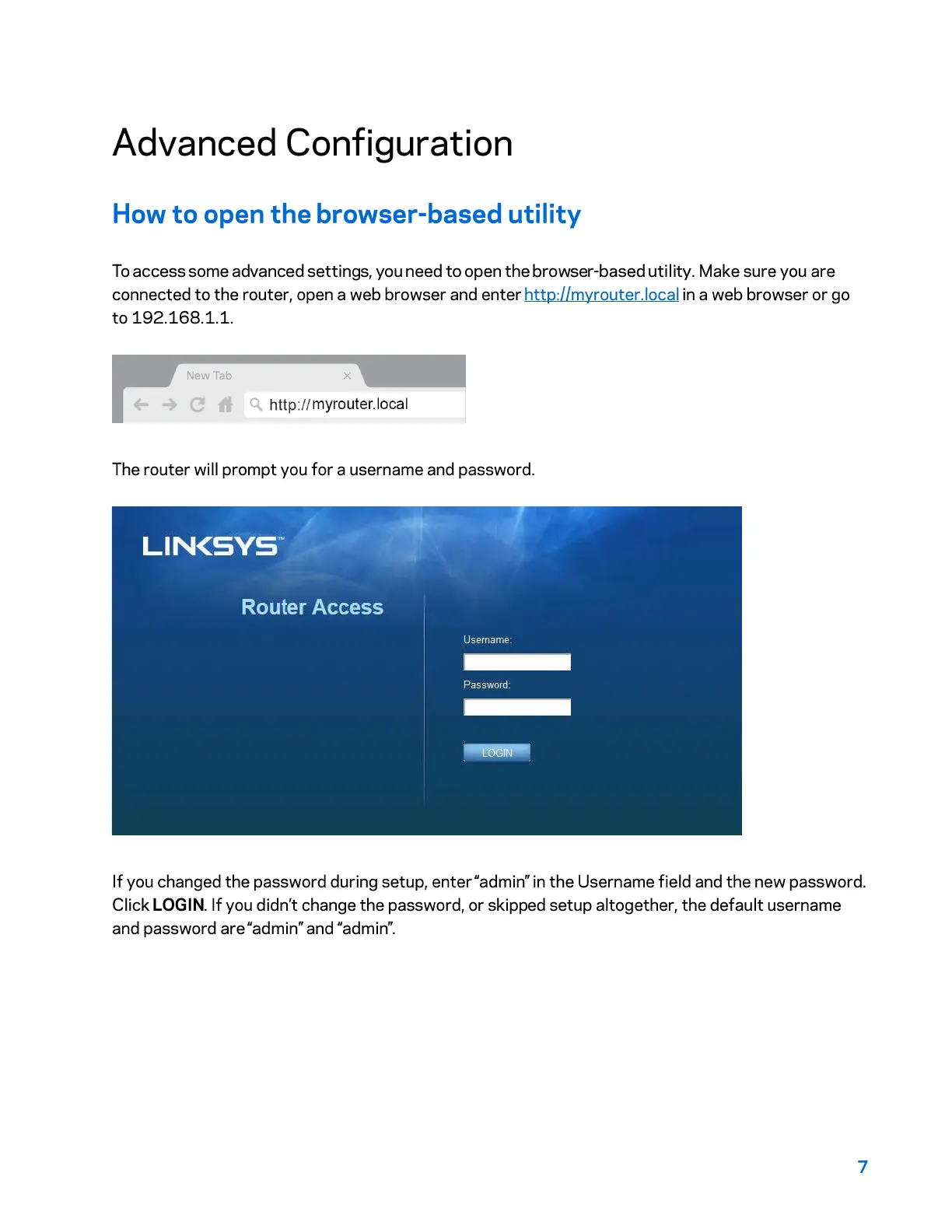

Advanced Configuration
How to open the browser-based utility
To access some advanced settings, you need to open the browser-based utility . Make sure you are
connected
to the router, open a web browser and enter http : //myrouter .local in a web browser or go
to 192 . 168 .1.1.
'\Jew Tab
X
Q. http:// myrouter.local
The
router will prompt you for a username and password.
LIN<svs· <.-,.,1'JI"!· ~
Router Access
Username
Password:
If you changed the password during setup, enter "admin" in the Username field and the new password.
Click
LOGIN. If you didn't change the password, or skipped setup altogether, the default username
and password are "ad min" and "admin".
7

Linksys E5400 Specifications

General

Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1167 Mbit/s
Product type	Tabletop router
On/off switch	Yes
Product color	Black
LED indicators	LAN, Power, WLAN, WPS
DSL WAN	No
WAN connection type	RJ-45
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Output current	0.5 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Certification	FCC
Processor cores	1
Firewall security	SPI
Security algorithms	WPA2-Enterprise, WPA2-PSK
Package type	Box
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	112 mm
Width	170 mm
Height	33 mm
Weight	172 g
