Linksys LGS116P User Manual

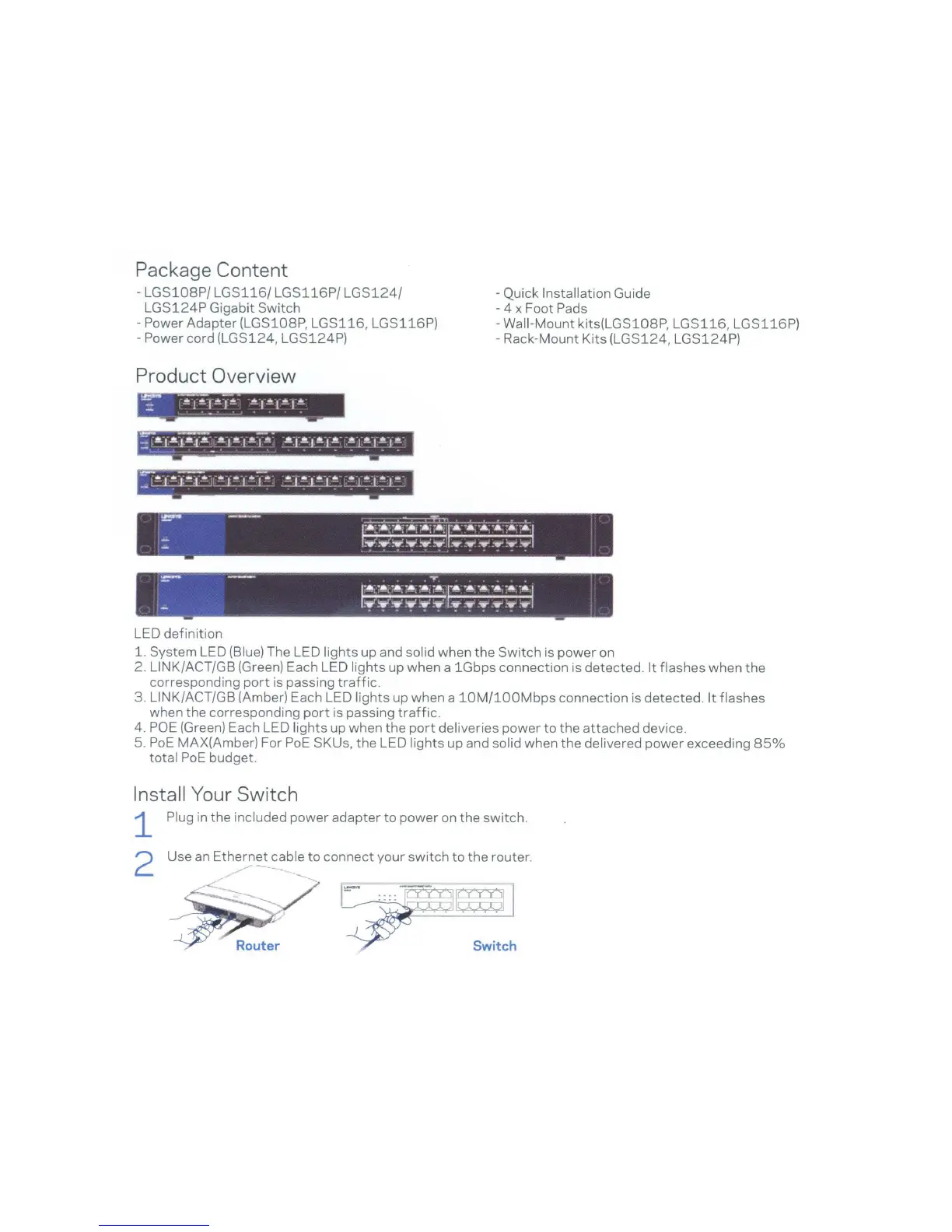

Package Content
- LGS108P / LGS116/ LGS116P / LGS124/
LGS124P Gigabit Switch
-Power Adapter (LGS108P, LGS116, LGS116P)
-Power cord (LGS124, LGS124P)
Product Overview
-Quick Installation Guide
- 4 x Foot Pads
-Wall-Mount kits(LGS108P, LGS116, LGS116P)
-Rack-Mount Kits (LGS124, LGS124P)
~ - ~l~~~
- ~ . . . . . . . . - - .
~ - . ..... ..
- ~~
LED definition
1. System LED (Blue) The LED lights up and solid when the Switch is power on
2. LINK/ACT/GB (Green) Each LED lights up when a
1Gbps connection is detected. It flashes when the
corresponding port is passing traffic.
3. LINK/ACT/GB (Amber) Each LED lights up when a 10M/100Mbps connection is detected. It flashes
when
the corresponding port is passing traffic.
4. POE (Green) Each LED lights up when the port deliveries power to the attached device.
5.
PoE MAX(Amber) For PoE SKUs, the LED lights up and solid when the delivered power exceeding 85%
total PoE budget.
Install Your Switch
1
2
Plug in the included power adapter to power on the switch.
Use an
Ethernet cable to connect your switch to the router.
Switch

Linksys LGS116P Specifications

General

Switch type	Unmanaged
Switch layer	-
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
10G support	No
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Throughput	1.488 Mpps
MAC address table	8000 entries
Input current	1.66 A
Power consumption (typical)	11.31 W
Number of power supply units	1
Certification	FCC Class A, CE
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Total Power over Ethernet (PoE) budget	80 W
Power over Ethernet plus (PoE+) ports quantity	8

Weight and Dimensions

Depth	120 mm
Width	280 mm
Height	25 mm
Weight	822 g
