Chapter 5: Configuring the Switch through the Web Utility
DiffServ
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Add rules to a selected class using the ACL list drop-down menu and the IP DSCP, IP Precedence and VLAN text
fields provided then click Add.
Adding a Class
Class Name. Name of the class map. (Range: 1-32 characters)
Type. Only one match command is permitted per class map, so the match-any field refers to the criteria specified
by the lone match command.
Description. A brief description of a class map. (Range: 1-256 characters)
Add. Adds the specified class.
Back. Returns to previous screen without making any changes.
Enter the class name and description into the textfields provided in the Add Class screen, then click Add.

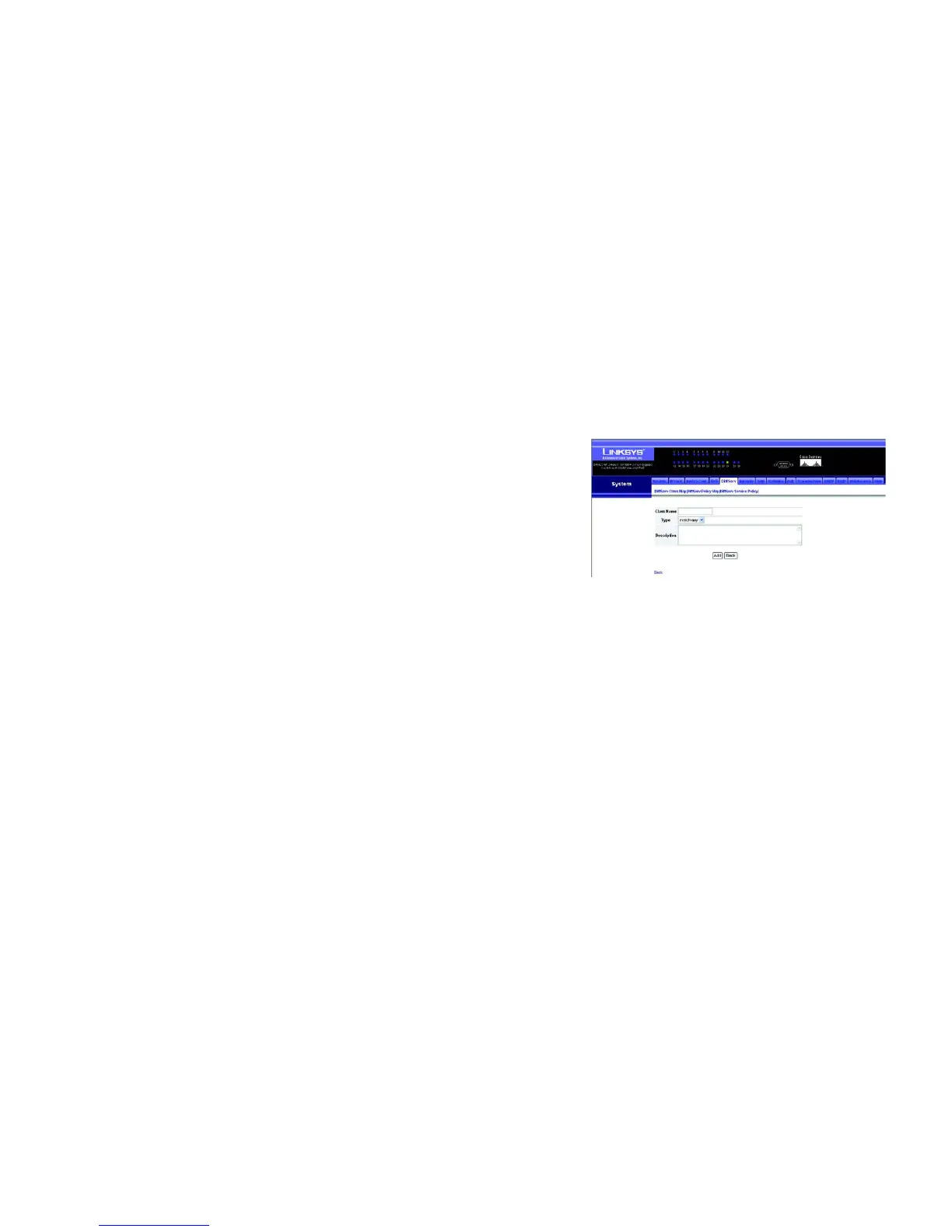

Figure 5-34: DiffServ Class Map - Adding a Class
