12 Volt Power Over Ethernet Adapter Kit
6
Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit
The Injector
The Injector’s Second Side Panel
The built-in Ethernet network cable and Power port are located on the Injector’s second side panel.
Ethernet IN The Injector has a built-in Ethernet network cable. You will connect this cable to one of the
Ethernet network ports on your router or switch.
Power The Power port is where you will connect the included adapter.
The Injector’s LED
The Power LED is located on the top of the Injector.
Power LED Green. The Power LED lights up when the Injector is powered on and ready for use.

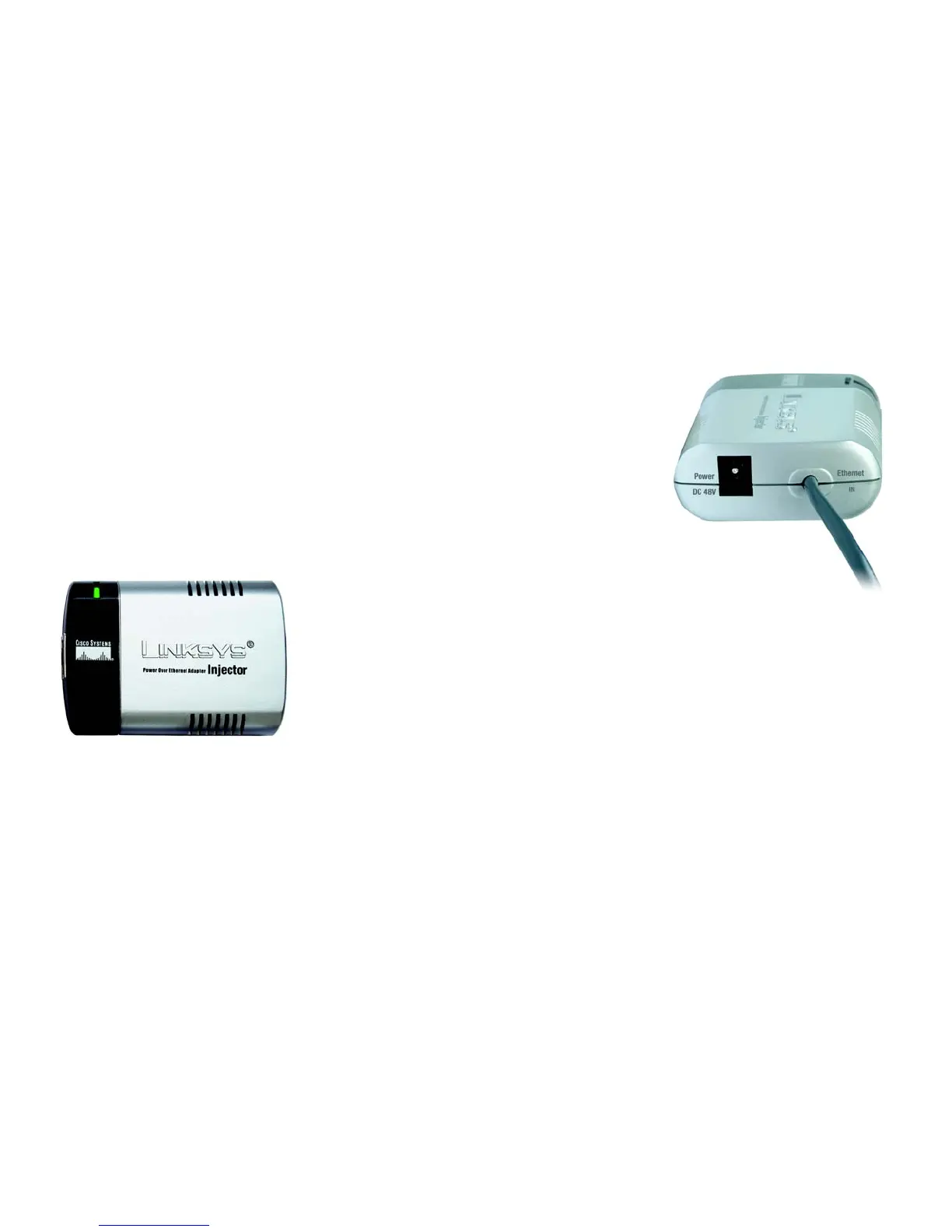

Figure 2-2: Injector’s Second Side Panel
Figure 2-3: Injector’s LED
