12 Volt Power Over Ethernet Adapter Kit
12
Chapter 3: Connecting the 12 Volt Power Over Ethernet Adapter Kit
Powering on a Device that Uses Inline Power
Powering on a Device that Uses Inline Power
You will use only the Injector to power up a device that supports inline power. Follow these instructions:
1. Connect the Injector’s built-in Ethernet network cable to your router, switch, or other network device.
2. Connect the Kit’s included Ethernet network cable to the Injector’s Power & Data OUT port.
Then connect the other end to the Ethernet port of your remotely located access point or other network
device.
3. Connect the Kit’s power adapter to the Injector, and plug the other end into an electrical outlet or surge
protector.
Congratulations! The installation of the Power Over Ethernet Kit is complete.
NOTE: Your access point or other network device must support inline power on the Ethernet port
you are using.

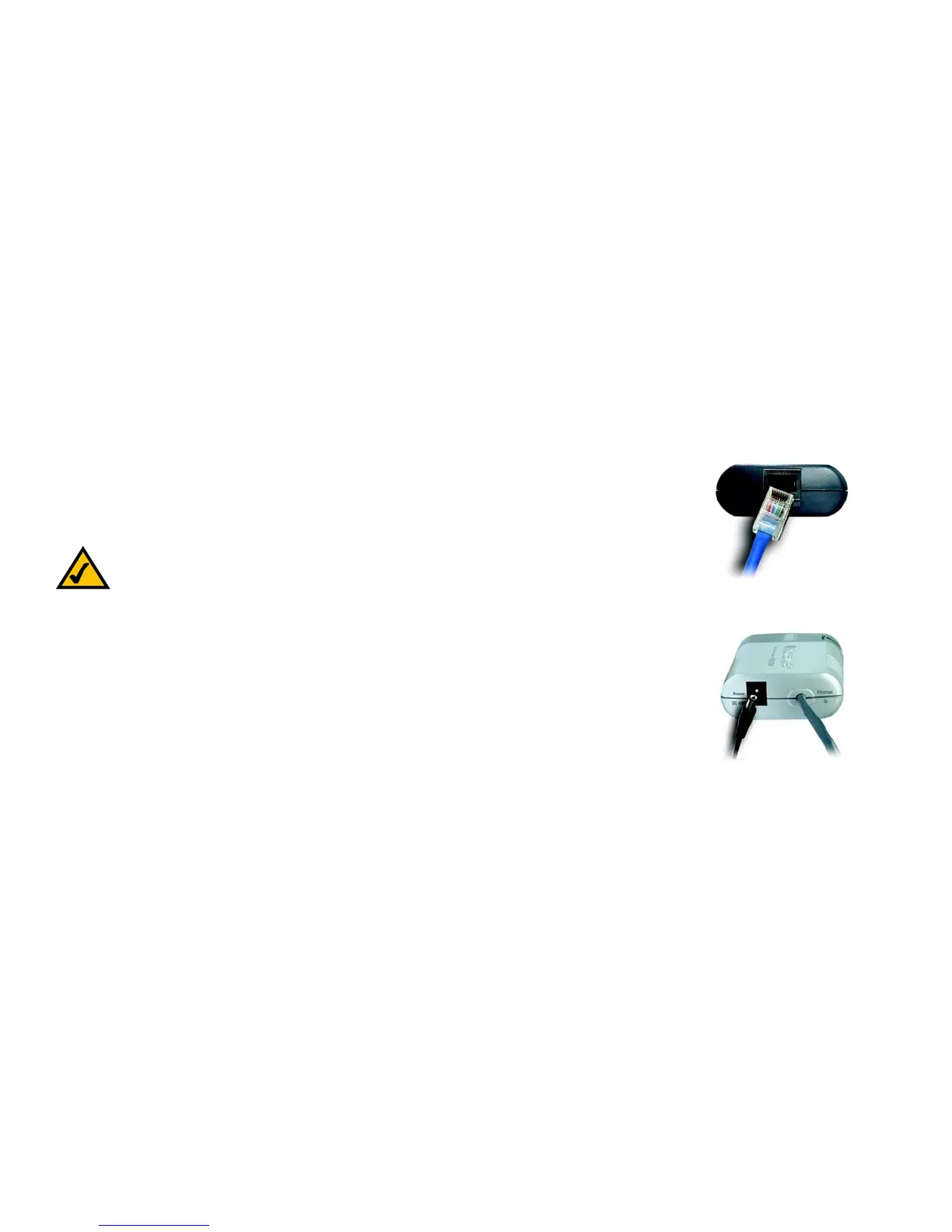

Figure 3-7: Connect Power to the
