Chapter 3: Connecting the 12 Volt Power Over Ethernet Adapter Kit
Powering on a Device that Uses a Standard Power Adapter
Powering on a Device that Uses a Standard Power Adapter
To use the Power Over Ethernet Kit, follow these instructions:
1. Connect the Injector’s built-in Ethernet network cable to your router, switch, or other network device.
2. Connect the Kit’s included Ethernet network cable to the Injector’s Power & Data OUT port.
Then connect the other end to the Splitter’s Power & Data IN port.

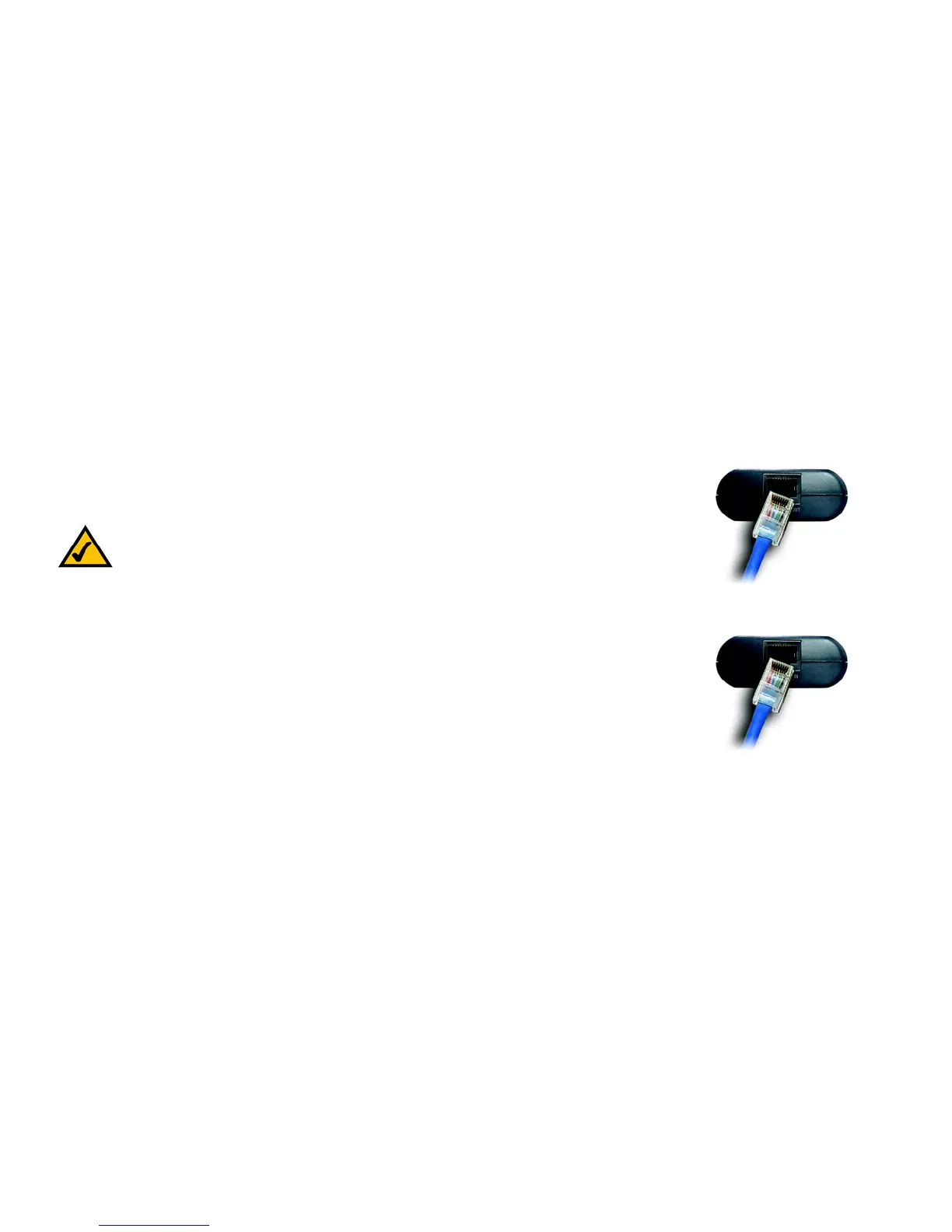

Figure 3-3: Connect the Ethernet Cable to
the Splitter
Figure 3-2: Connect the Ethernet Cable
to the Injector
NOTE: If this cable is not long enough, then you can use your own Ethernet network cable.
