12 Volt Power Over Ethernet Adapter Kit
5
Chapter 2: Getting to Know the 12 Volt Power Over Ethernet Adapter Kit
Overview
Chapter 2: Getting to Know the 12 Volt Power Over Ethernet
Adapter Kit
Overview
The Power Over Ethernet Adapter Kit is comprised of two devices, the Injector and Splitter. Use the Kit so you can
move your access point, wireless bridge, or other network device to a remote location that is far from an
electrical outlet.
The Injector
The Injector’s built-in cable and ports are located on side panels.
The Injector’s First Side Panel
The Power & Data OUT port is located on the Injector’s first side panel.
Power & Data OUT This port allows you to connect the Injector to the Splitter or a network device that supports
inline power. (You will use the included Ethernet network cable to make this connection.)

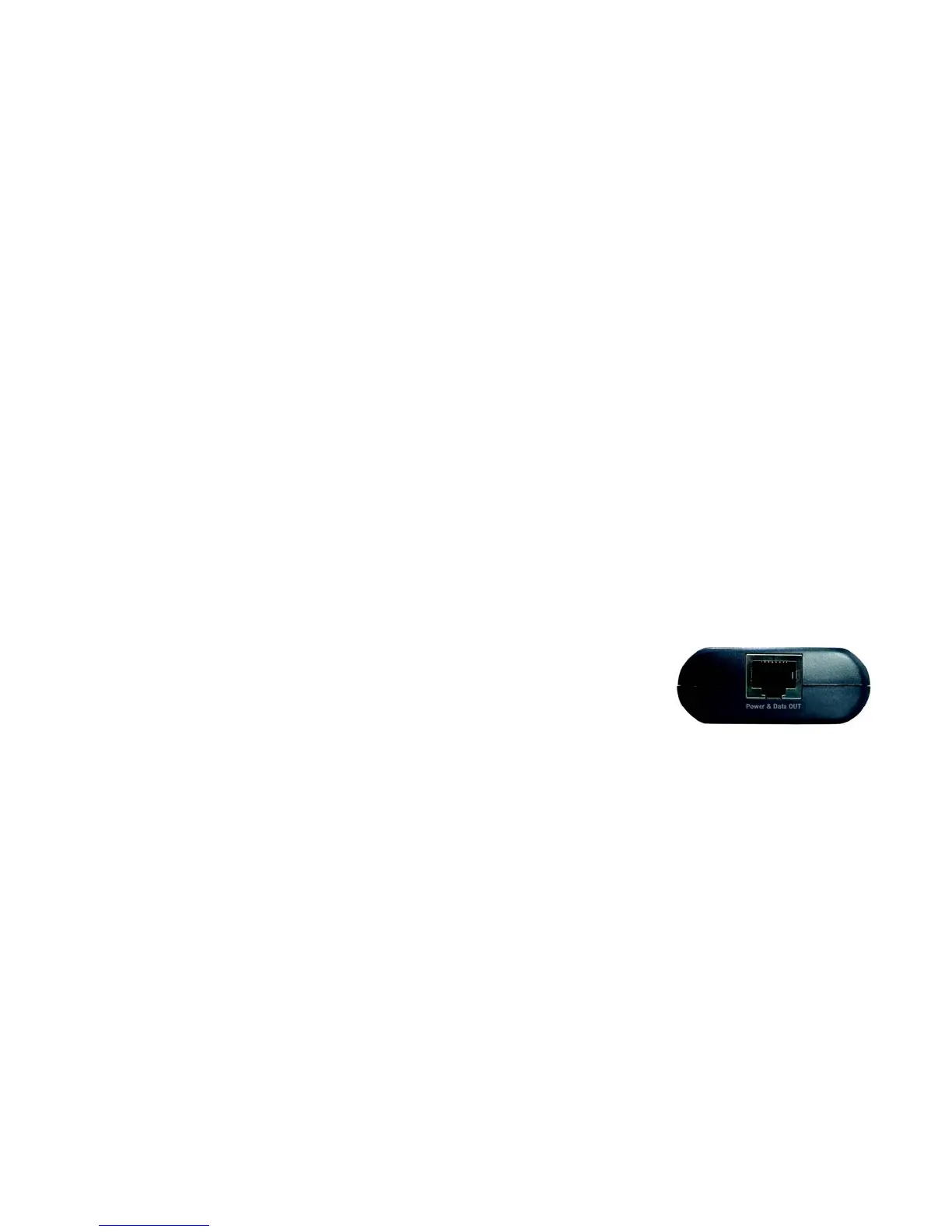

Figure 2-1: Injector’s First Side Panel
