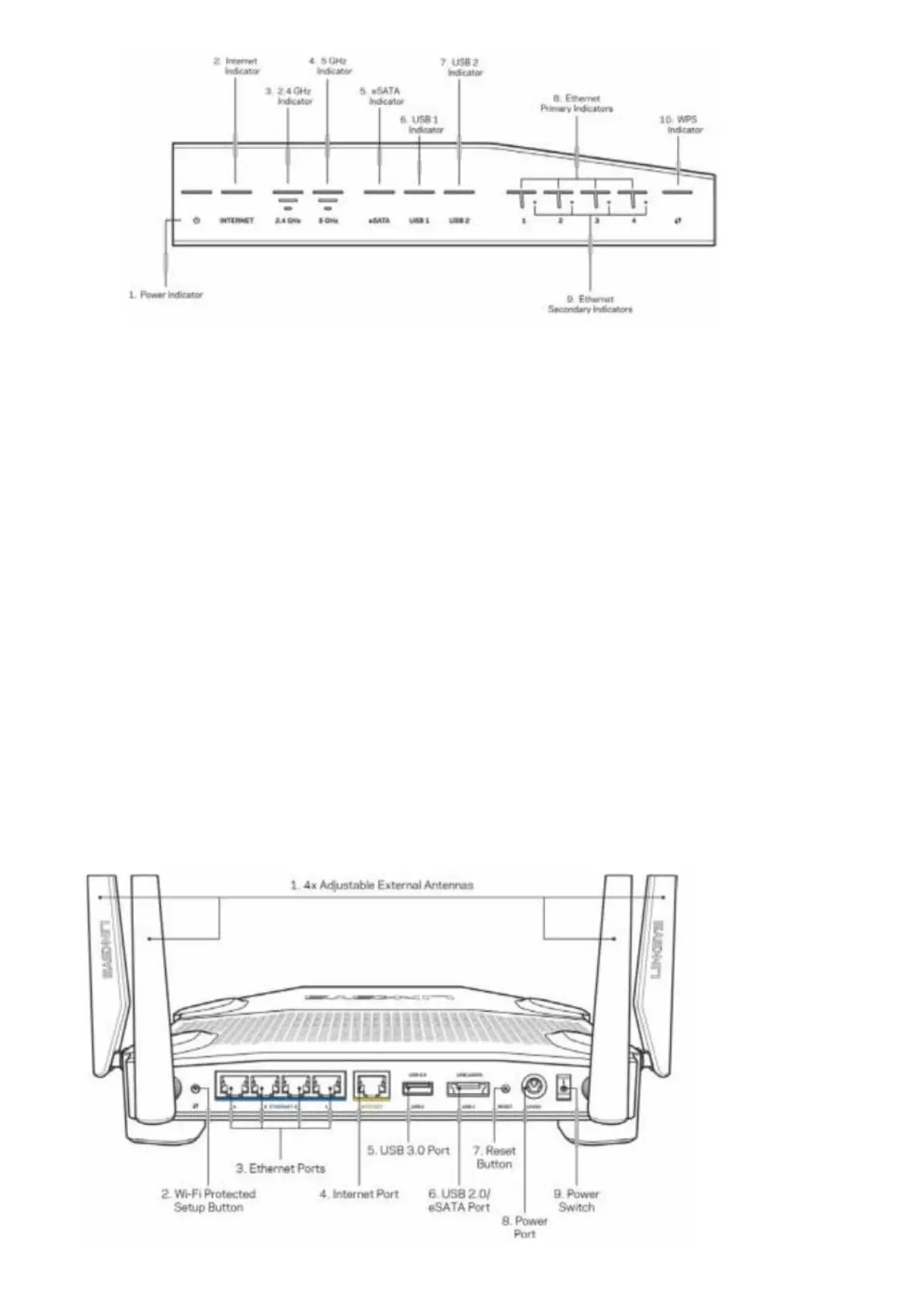

Front panel
Power indicator (1)—The power light is solid blue while the router is powered on. It will blink when the router goes
through its self-diagnostic mode during start-up.
Internet Indicator (2)—The INTERNET light is solid blue when connected to the internet. It blinks while the router
works to establish a connection. A solid orange light means the connection is down due to configuration issues.
Blinking orange means the connection is down due to hardware issues.
2.4 GHz Indicator (3)— The light is solid blue when one or more clients are connected to the 2.4 GHz network. The
light blinks when the router is sending or receiving data over the 2.4 GHz network.
5 GHz Indicator (4)—The light is solid blue when one or more clients are connected to the 5GHz network. The light
blinks when the router is sending or receiving data over the 5 GHz network.
eSATA Indicator (5)—If the light is off, the USB/eSATA port is off or a USB device is connected. The light is solid
blue when an eSATA device is connected. The light blinks to indicate activity through the eSATA port.
USB1 Indicator (6)—If the light is off, the USB /eSATA port is off or an eSATA device is connected. The light is solid
blue when a USB device is connected. The light blinks to indicate activity on the port.
USB2 Indicator (7)—The light is solid blue when a USB device is connected. The light blinks to indicate activity on
the port.
ETHERNET 1 through 4 (Primary) (8)—These numbered lights correspond with the numbered ports on the router’s
back panel. If the light is solid blue, the router is connected to a device through that port. The light blinks to indicate
network activity over that port.
ETHERNET 1 through 4 (Secondary) (9)—If the light is off, the router is connected to a device through that port at
10/100 Mbps. A solid blue light means the router is connected to a device at 1000 Mbps.
WPS Indicator (10)—The light blinks slowly for up to two minutes during Wi-Fi Protected Setup. It will be solid blue
for five seconds to indicate a successful connection. The light blinks orange if the WPS process fails. If that happens,
make sure the client device supports WPS. Wait until the light is off, and try again. The router supports one WPS
session at a time.
