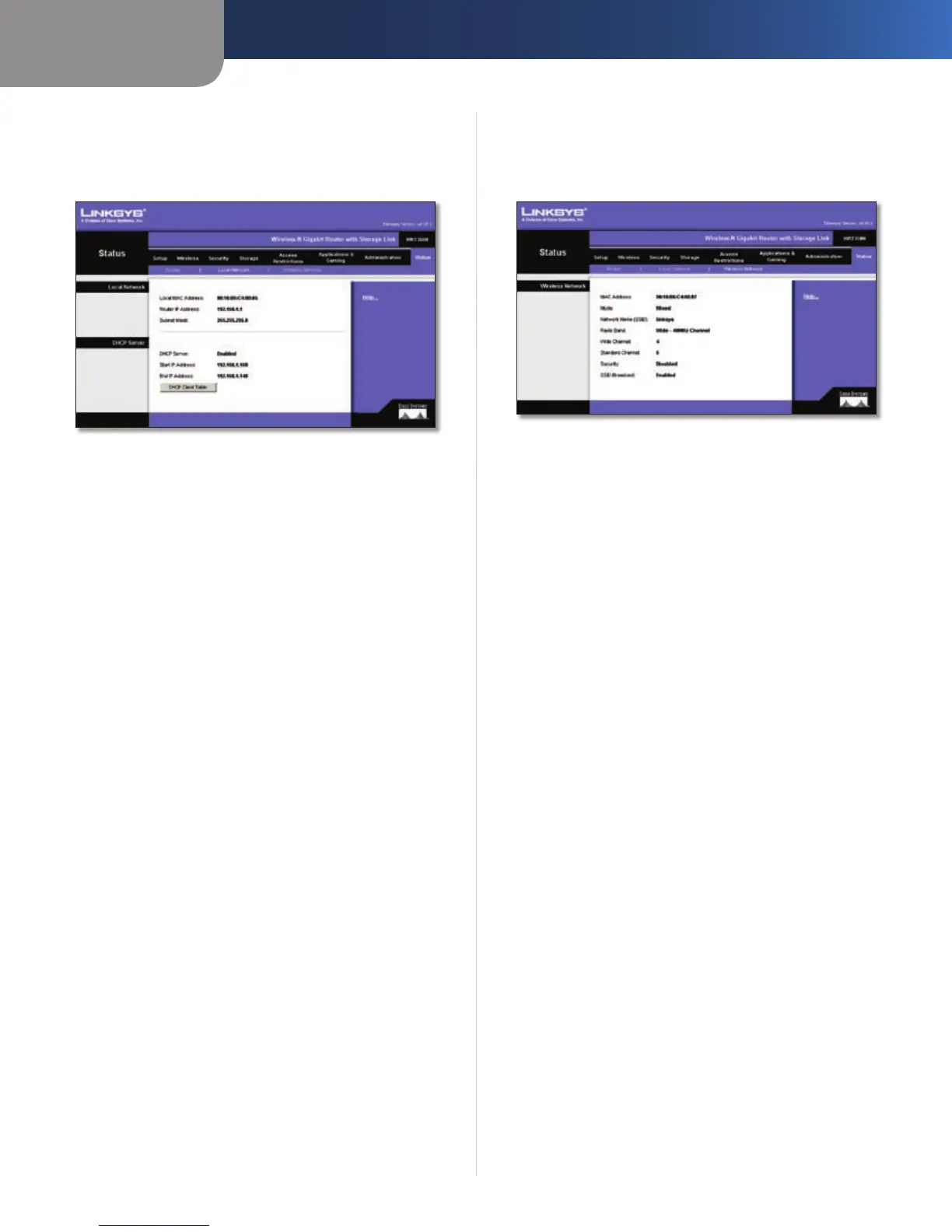

Status > Local Network
The Local Network screen displays information about the
local network.
Status > Local Network
Local Network
Local MAC Address The MAC Address of the Router’s
local interface is displayed here.
Router IP Address This shows the Router’s IP address, as
it appears on your local network.
Subnet Mask. The Router’s Subnet Mask is shown here.
DHCP Server The status of the Router’s DHCP server
function is displayed here.
Start IP Address For the range of IP addresses used by
devices on your local network, the beginning IP address
is shown here.
End IP Address For the range of IP addresses used by
devices on your local network, the ending IP address is
shown here.
DHCP Client Table Click DHCP Client Table to view the
DHCP Client Table. It lists computers and other devices
that have been assigned IP addresses by the Router. The
list can be sorted by Client Name, Interface, IP Address,
MAC Address, and Expired Time (how much time is left
for the current IP address). To remove a DHCP client, click
Delete. To retrieve the most up-to-date information, click
Refresh. To exit this screen and return to the Local Network
screen, click Close.
For more information, click Help.
Status > Wireless Network
The Wireless screen displays the status information of your
wireless network.
Status > Wireless Network
MAC Address The MAC Address of the Router’s wireless
interface is displayed here.
Mode Displayed here is the wireless mode (Mixed,
Wireless-N Only, Wireless-G Only, Wireless-B Only or
Disabled) used by the network.
Net work Name (SSID) Displayed here is the name of the
wireless network or SSID.
Radio Band Displayed here is the Radio Band setting
selected on the Basic Wireless Settings screen.
Wide Channel Displayed here is the Wide Channel setting
selected on the Basic Wireless Settings screen.
Standard Channel Shown here is the Standard Channel
setting selected on the Basic Wireless Settings screen.
Security Displayed here is the wireless security method
used by the Router.
SSID Broadcast Displayed here is the status of the SSID
Broadcast feature.
For more information, click Help.
