Chapter 5: Configuring the Wireless-G Broadband Router
The Status Tab - System Performance
Wireless-G Broadband Router with SRX
The Status Tab - System Performance
The System Performance screen displays status information about network traffic for the Internet, wireless
activities, and wired connectivity.
System Performance
Internet/Wireless
Statistics for the network traffic on the Internet connection and wireless connectivity are shown in two separate
columns.
IP Address. The IP address of the Router’s interface is displayed here.
MAC Address. The MAC address of the Router’s interface is shown here.
Connection. The status of the connection is shown here.
Packets Received. The number of packets received is displayed here.
Packets Sent. The number of packets sent is displayed here.
Bytes Received. The number of bytes received is shown here.
Bytes Sent. The number of bytes sent is shown here.
Error Packets Received. The number of error packets received is displayed here.
Dropped Packets Received. The number of dropped packets received is displayed here.
LAN
Statistics for the network traffic on each of the four LAN ports are shown in four separate columns.
IP Address. The IP address of the Router’s interface is displayed here.
MAC Address. The MAC address of the Router’s interface is shown here.
Connection. The status of the connection is shown here.
Packets Received. The number of packets received is displayed here.

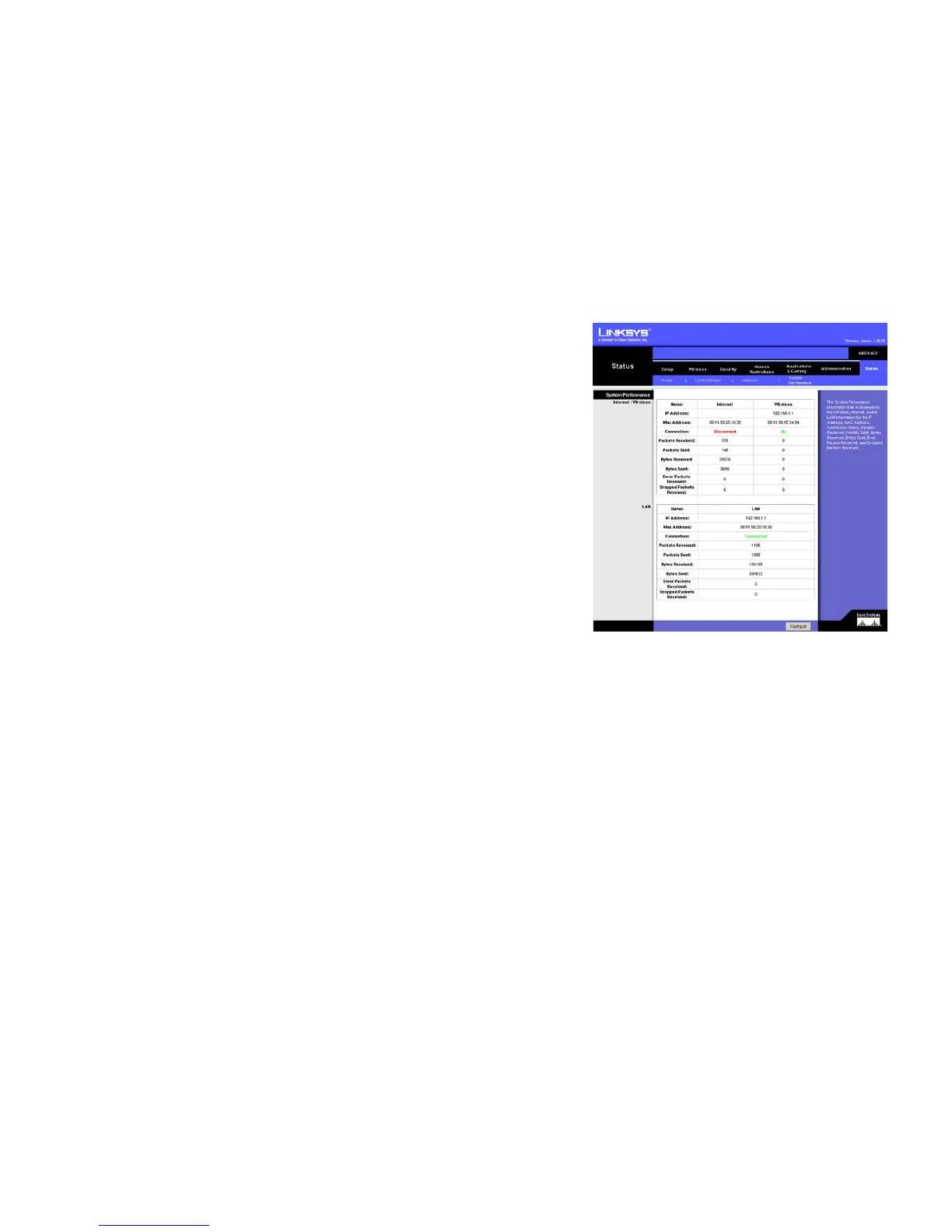

Figure 5-39: Status Tab - System Performance
