Tilting cab mechanism
Under normal circumstances, the uses a hydraulic
system to tilt the cab. This system uses an electric motor
to activate the hydraulic pump. However, if the vehicle’s
low-voltage power source has been disabled, you can
still tilt the cabin.
To manually operate the cab tilting pump:
1. Check to make sure that the vehicle’s high-voltage circuits
have been turned o, or turn them o (See page 12).
2. Apply the parking brake and put the gear selector in
Neutral (See page 11).
3. Lift the front hood (See page 15) and remove the tubular
lever for the manual pump from under the hood (Figure 18).
4. Insert the tubular lever on the side of the pump (Figure 19).
5. Place the selector valve on the hydraulic pump in the CAB
RAISE position.
WARNING
The hydraulic cab tilt system is a cab lifting, NOT a cab
holding device. Before going under a raised cab, ALWAYS
engage the mechanical cab holding device.

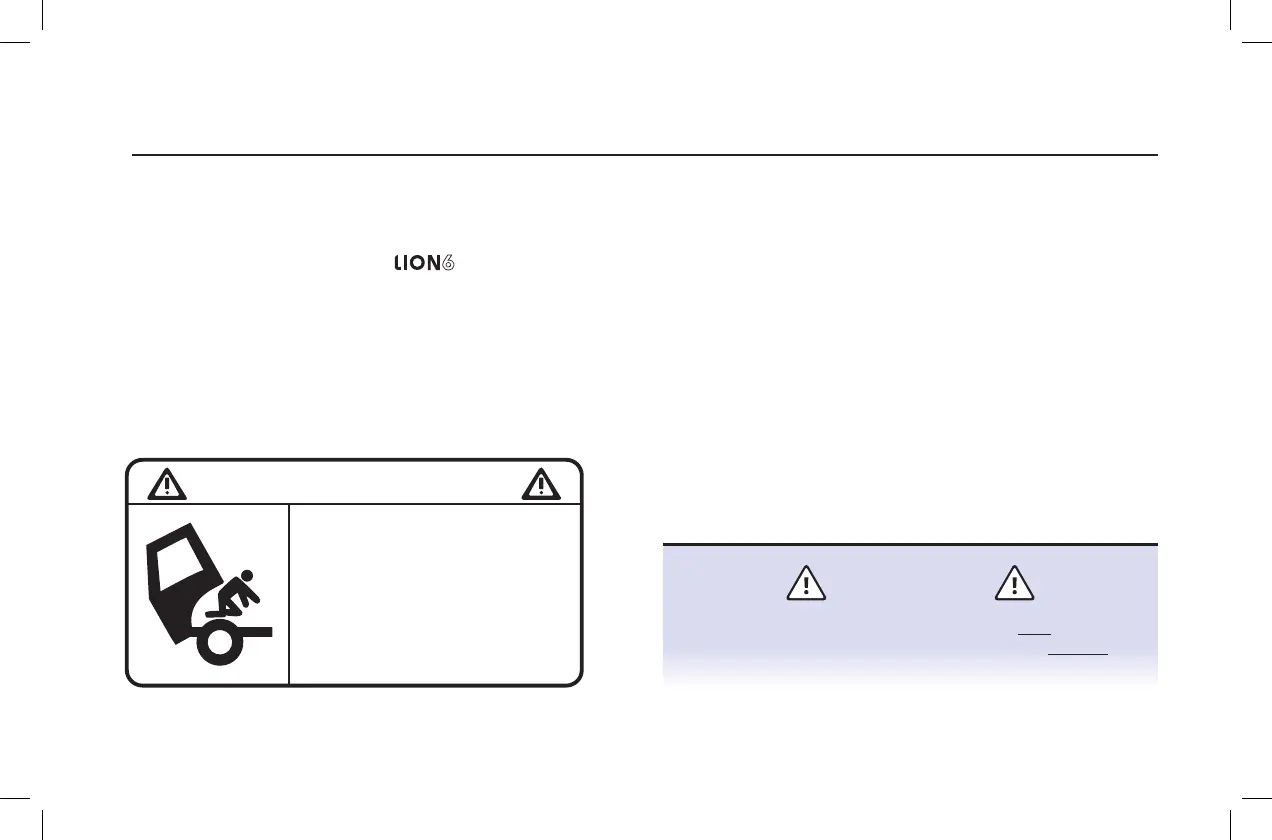

Figure 16 ― Hazard warning label
WARNING / ATTENTION
CRUSH HAZARD
FALLING CAB MAY INJURE OR KILL
RISQUE D’ÉCRASEMENT
LA CHUTE DE LA CABINE PEUT
CAUSER DES BLESSURES OU LA MORT
