Sway Command
®
1.5
(AU) BY TRAILAIR
Installation and Owner’s Manual
(For Aftermarket Applications)

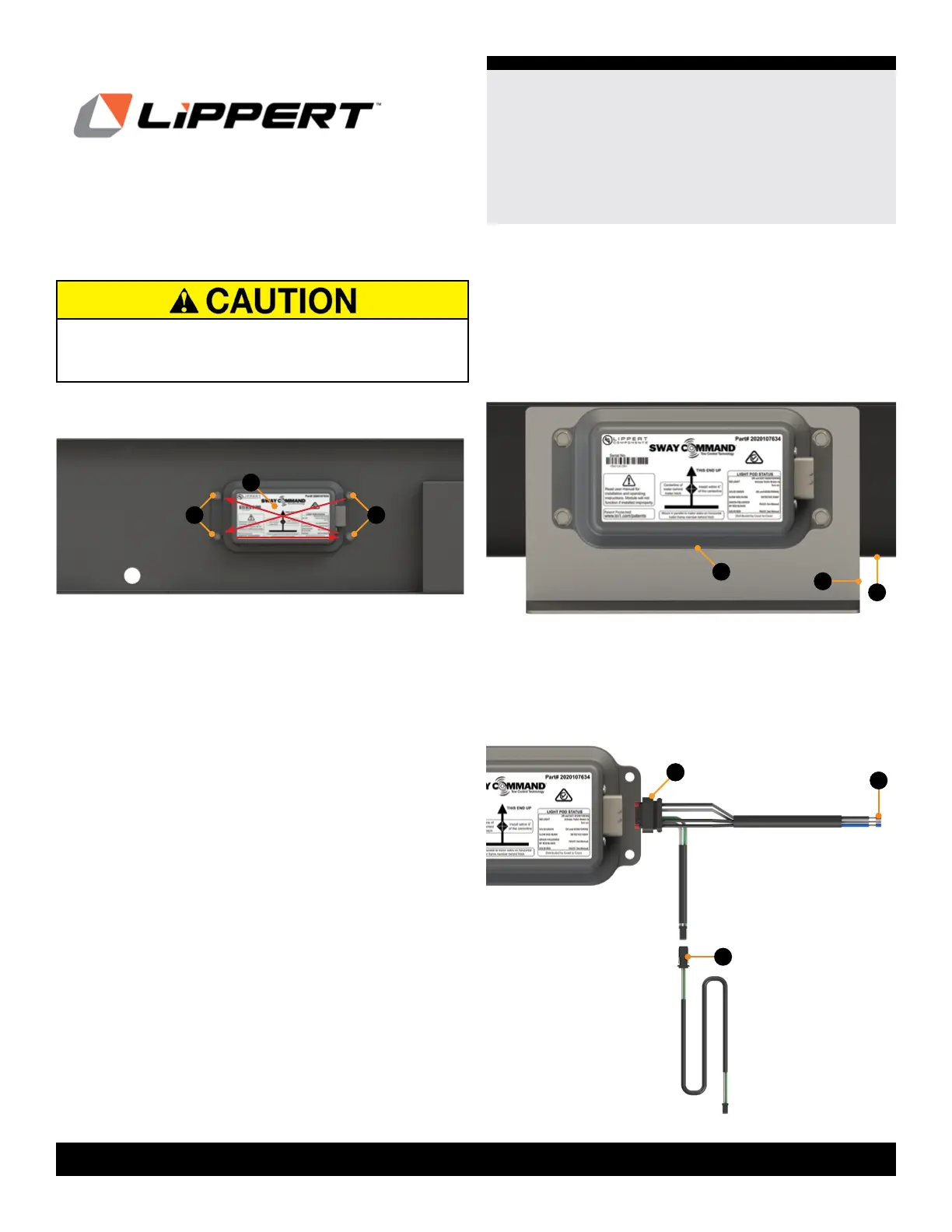

7. Torque screws 10 - 12 Nm in the crisscross pattern
(Fig.2).
4. Insert M6 x 11.0 x 0.7 serrated external lock washers
over each #14 - 10 x 25 mm self-drilling hex screw, then
attach the controller (Fig.3A) and protective bracket (Fig.3B)
to the crossmember (Fig.3C) with the four hex screws in
Chassis Mounting procedure.
C
A
B
Fig.2
Fig.3
A
C
B
8. Make sure the controller is level (parallel) with the front
crossmember of the caravan frame.
9. Make sure controller orientation is correct (Fig.2).
Short Chassis Mounting
1. Install a protective bracket, which is NOT part of this kit
or supplied by LCI, large enough to mount the controller to
and then onto the shorter crossmember.
2. Place the controller on top of the protective bracket.
A. Align the top of the controller with the top of the
bracket, then center align the two items.
B. Place the bracket and controller on the side face of the
crossmember with the tops of the bracket and controller
aligned with the top of the crossmember.
C. Mark the screw hole locations on the protective bracket
using the controller as a template.
D. Set the controller aside.
3. Using a drill with the 5.5 mm drill bit, drill pilot holes
through the bracket and crossmember at the four locations
made in step 2.
DO NOT EXCEED RECOMMEND TORQUES VALUES.
EXCEEDING RECOMMENDED TORQUE VALUES CAN
RESULT IN PRODUCT DAMAGE.
A
B B
1
3
4
2
Sway Command Wiring
1. Connect the Sway Command
main wire harness (Fig.4A)
to the port on the Sway Command
controller.
Fig.4
To Next Page
