Sway Command
®
1.5
(AU) BY TRAILAIR
Installation and Owner’s Manual
(For Aftermarket Applications)
2. Connect the light pod extension harness (Fig.4B) to the
two-pin connector on the main harness.
3. Connect the loose wires (Fig.4C) on the main wire
harness as described in the following table.
NOTE: All wiring connections should be made at the
caravan junction box according to local codes.
NOTE: LCI recommends the use of a 20A user-
replaceable/sealed fuse between the junction box
power connection and the black Sway Command
power connection.
Sway Command Wire Connection Gauge
2-Pin Connector Light Pod Extension Harness
Light Pod Extension Harness Light Pod
Black 12V DC from tow vehicle / breakaway battery 12 AWG
White Caravan Battery / Frame ground 12 AWG
Blue Electric Brake wire from tow vehicle 12 AWG
Sway Command
Light Pod Mounting
The light pod should be mounted in a location that can be
easily seen by the tow vehicle operator. If the light pod is
mounted to the A-frame of the caravan (Fig.5), make sure
it is mounted on the driver’s side of the caravan for clear
visibility. Optionally, the light pod can be mounted to the
outside, front wall of the caravan (Fig.6) and positioned for
visibility by the tow vehicle operator.
NOTE: The light pod can be fastened to the A-frame at any
time, but can only be connected after the A-frame loom
has been routed.
A
B
C

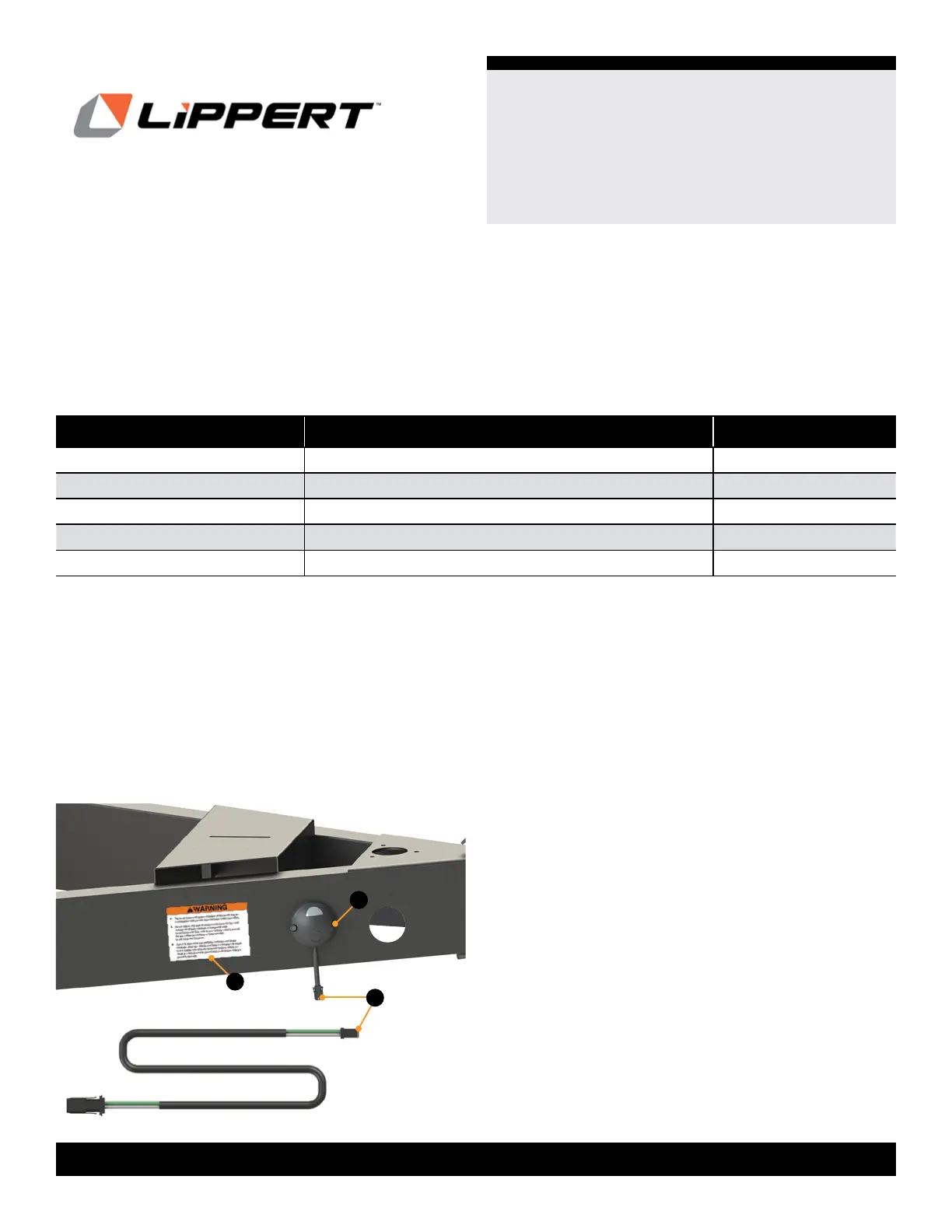

Fig.5
Mounting the light pod on the A-frame:
1. Determine the proper mounting location for the light pod.
2. Fasten the light pod in place next to the A-frame loom
hole with two M8 x 18 x 12 mm self-tapping screws (Fig.5A).
3. Connect the light pod to the extension harness (Fig.5B)
that was previously connected to the Sway Command
main harness.
NOTE: The light pod wiring and connection point can be
coiled into the cavity on the back side of the light pod for a
cleaner appearance, if preferred.
4. If the light pod is lit green, and no error codes are
detected, place the Sway Command warning sticker
(Fig.5C) on the outside of the caravan’s A-frame next to the
light pod.
Mounting the light pod on a caravan wall:
1. Determine the proper mounting location for the light pod.
2. Attach the light pod to the caravan wall with two M8 x 25
mm square head wood screws (Fig.6A).
3. Connect the light pod to the extension harness (Fig.6B)
that was previously connected to the Sway Command
main harness.
4. Make sure all wall penetrations are sealed to prevent
To Next Page
