Awnbrella
™
Awnbrella
®
Installation and Owner’s Manual
(For Aftermarket Applications)
168"
42"
42"
42"
42"
Example
Installation
Spacing Awnbrella Arms
Awnbrella Arms should be evenly spaced with no more
than 54" between each. To nd the proper spacing,
measure the width of the awning fabric and divide the
measurement by the recommended number of arms + 1.
Keep in mind that two arms make three sections, three
arms make four sections, etc. It is recommended the
canvas not be divided into sections exceeding 54”. See
example to the right and installations instructions on the
next page.
Resources Required
• Cordless or Electric Drill or Screw Gun
• ⁄" Metal Drill Bit
• Phillips Screwdriver
• ¼" Fine Round File
• Punch
• Ladder
• Measuring Tape

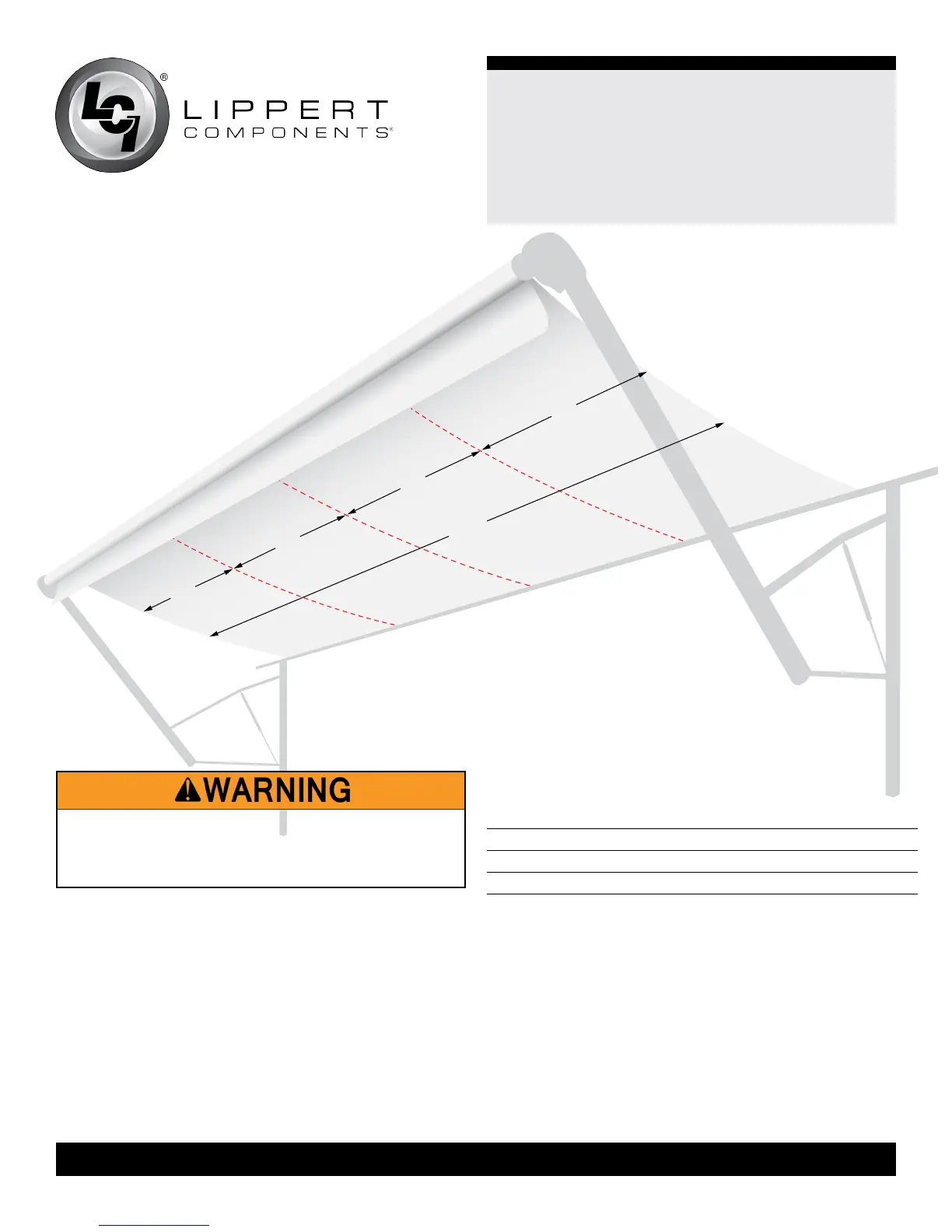

Example: Awning canopy width measures 14' (168")
Recommended number of arms is 3 + 1 = 4
168" ÷ 4 = 42"
Space between each arm should be 42" wide
NOTE: Calculations will not always work out to be a
complete whole number. The outer most holes drilled into
the roller tube for the Awnbrella arms should not be placed
any closer than 42” from the end of the tube to protect the
roller tube spring.
awning width number of Awnbrella arms
10' - 14' 2 arms
14' - 18' 3 arms
18' - 22' 4 arms
22' - 27' 5 arms
FAILURE TO FOLLOW THE INSTRUCTIONS PROVIDED
IN THIS MANUAL MAY RESULT IN DEATH, SERIOUS
INJURY, COACH DAMAGE, OR VOIDING OF THE
COMPONENT WARRANTY.
