Awnbrella
™
Awnbrella
®
Installation and Owner’s Manual
(For Aftermarket Applications)
Special Notes:
• For proper water drainage, the roller tube MUST be at
least 6" lower than the hanger rail on the RV. Check
drainage with a water hose to be sure.
• Follow all care instructions recommended by the awning
manufacturer.
• The awning may stretch slightly where it meets Awnbrella
arms. This should present no problem in performance.
Canvas should be in good condition when using the
Awnbrella or it could rip.
• Lippert Components is not responsible for damage or
injury due to improper use or installation.
Never:
• Leave the awning out in strong winds. Lippert
Components makes no claims regarding the
performance of this product in windy conditions.
• Drill into the roller tube closer than 42" from
each end to avoid striking the awning roller spring.
• Extend or retract the awning while the
Awnbrella arms are installed.
• Adjust the pitch of the awning side arms while
the Awnbrella arms are installed.
awning
fabric
roller tube
roller tube
drilled holes at
3:00 position or more
correct
drilled holes at
1:30 - 2:00 position
awning
fabric
roller tube
drilled holes at
3:00 position or more
wrong
drilled holes at
1:30 - 2:00 position

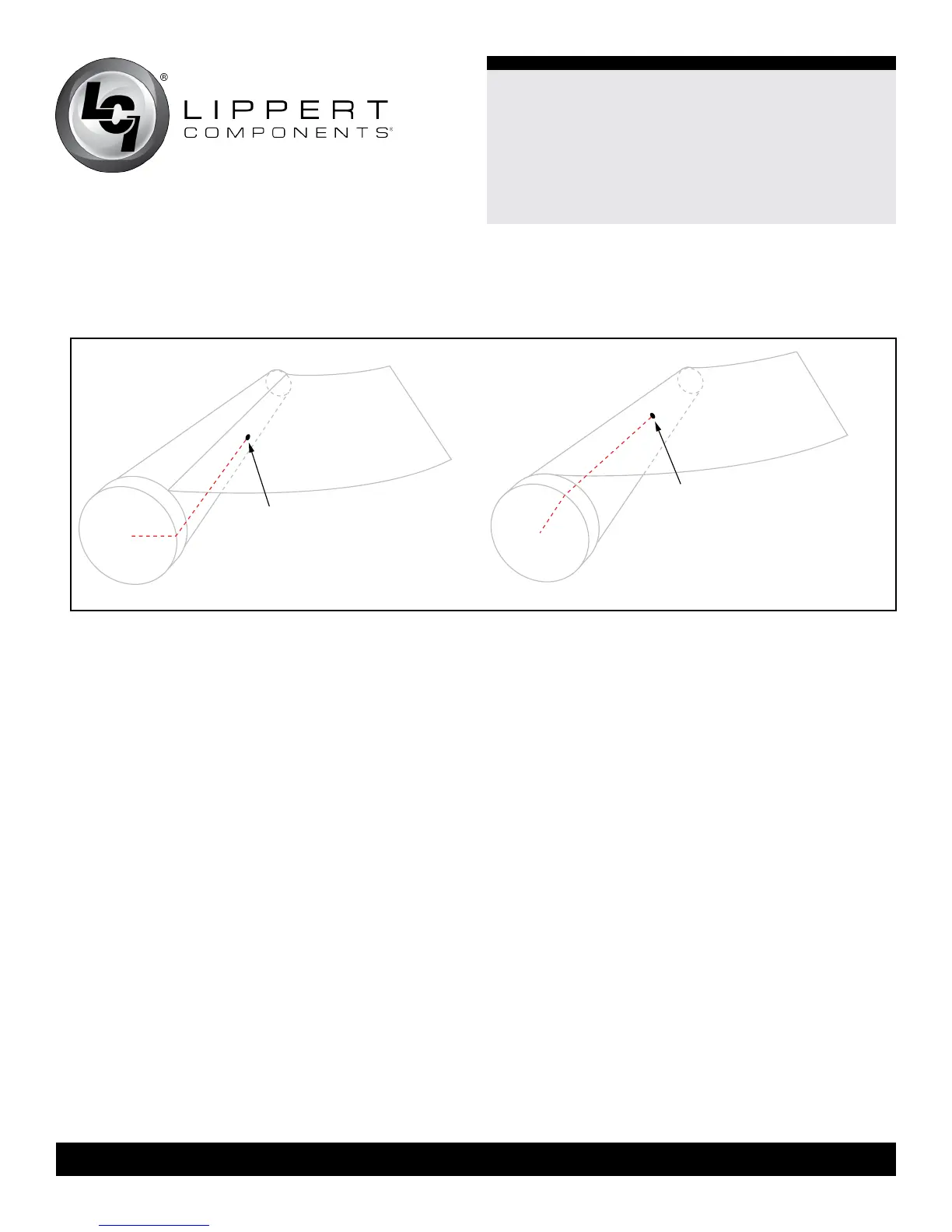

Proper Awning Extention for Awnbrella Arms
To use the awning in the carport position, put it in this
position before installing the arms and check to make
sure the holes in the roller bar are in an upward position
(Fig.16).
Fig.16
To Next Page
