Lippert Components ELECTRIC SLIDEOUT SYSTEM User Manual

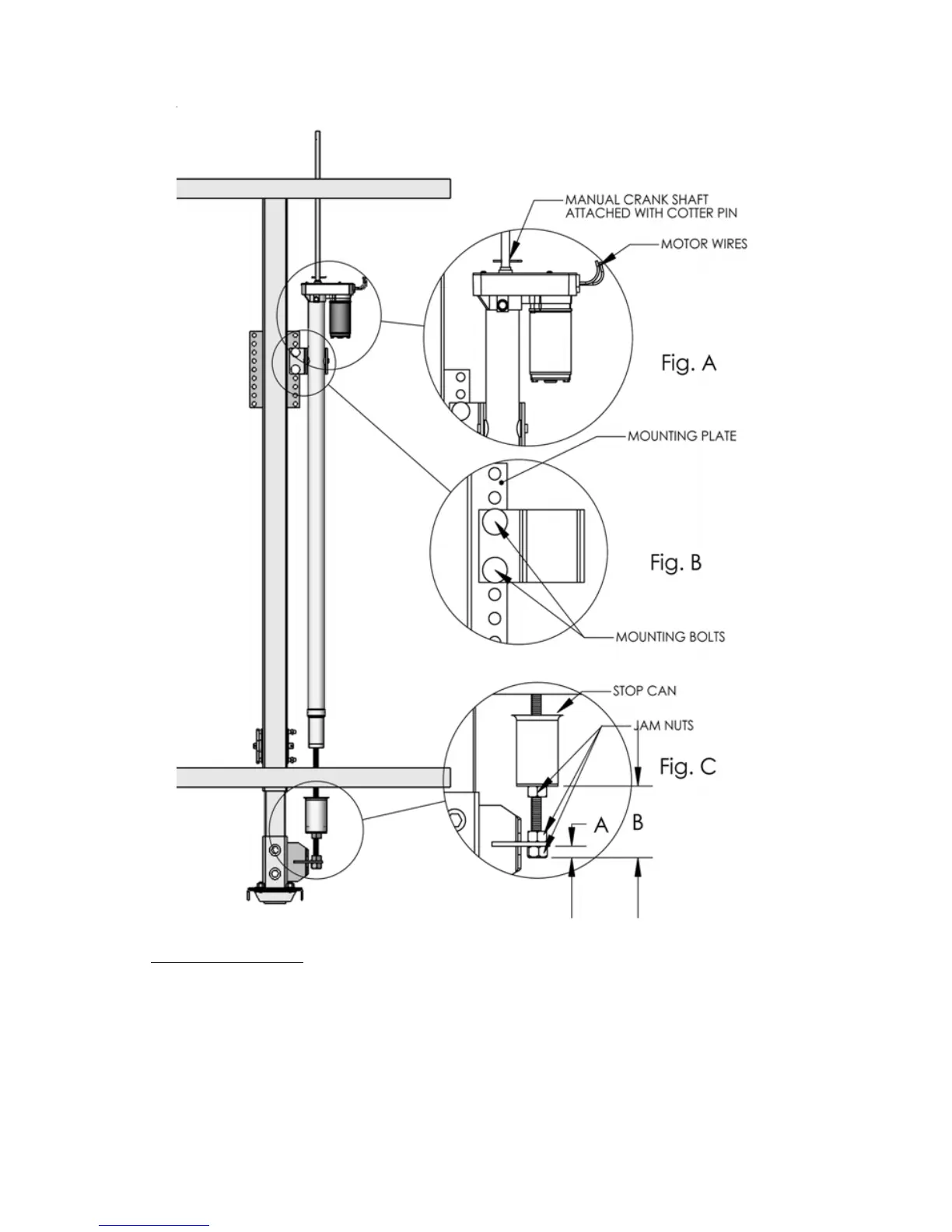

To replace actuator:
1. Disconnect manual crank shaft from end of motor assembly (Fig. A).
2. Disconnect motor wires from source. (Fig. A).
3. Take measurements A and B (Fig. B).
4. Remove all jam nuts (3 total) and stop can from threaded shaft on actuator (Fig. B)
5. Take note of mounting bolt locations and remove mounting bolts (Fig. C).
6. After everything is disconnected, slide actuator out of frame. To replace with new
actuator, follow previous directions in reverse.
REMOVING AND REPLACING ACTUATOR
15
