Lippert Components HYDRAULIC SLIDEOUT SYSTEM User Manual

To replace actuator:

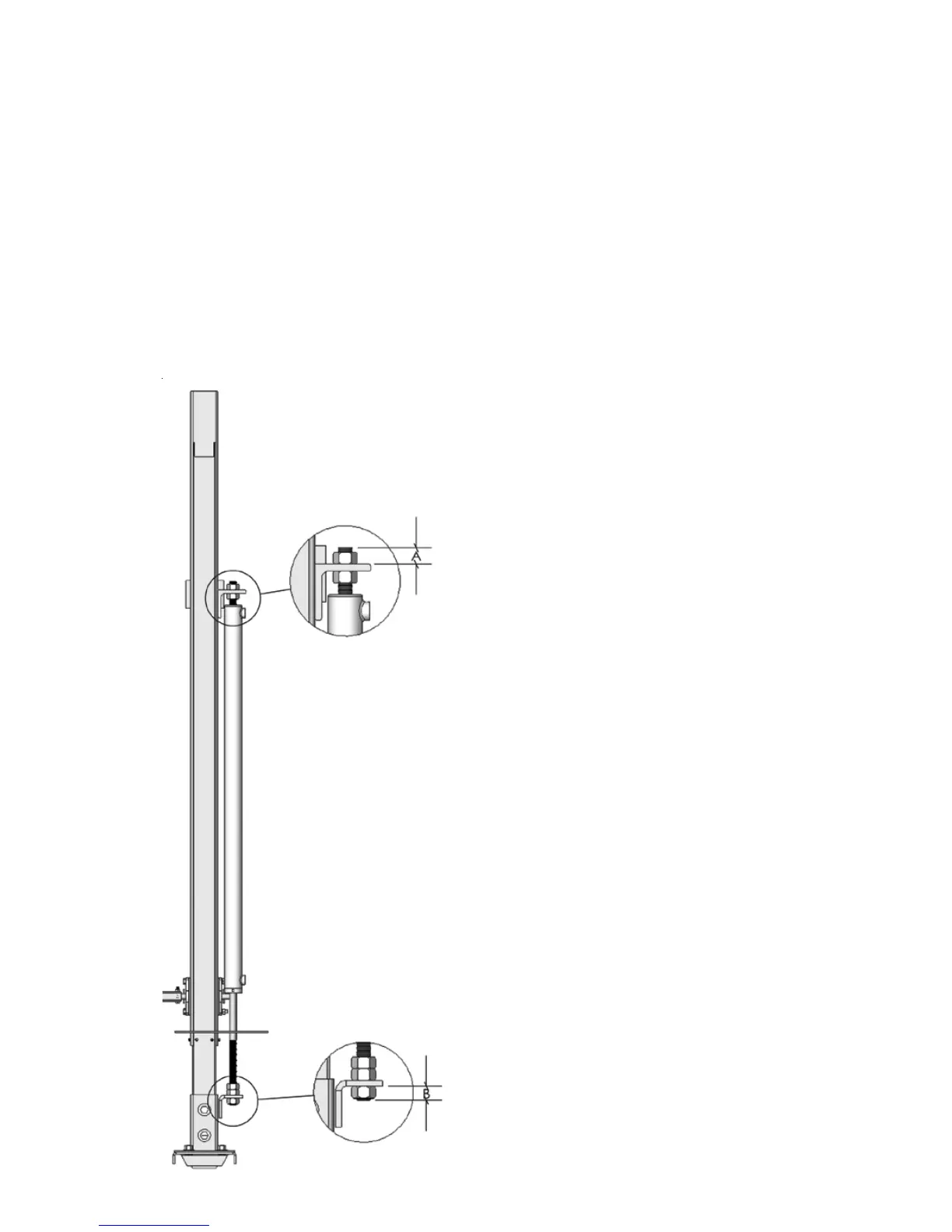

1. Take measurements A and B.
2. Remove both nylock nuts (2 total) from
threaded shafts on actuator.
3. Take note of jam nut locations and remove.
4. After everything is disconnected, slide
actuator out of frame. To replace with new
actuator, follow previous directions in
reverse.
REMOVING AND REPLACING ACTUATOR
Fig. 10
10
The Lippert Electric Slideout System room travel (both sides of the room
traveling the same distance) can be adjusted with specially designed
synchronizing bracket mounted on the passive slide tube. The passive slide tube
is the one that is not powered. The active slide tube is the one that has the
cylinder attached. If one side of the room fails to seal adjust as follows:
1. Loosen bolts (Fig. 9A) on top of the passive slide tube (Fig. 9B)
2. Push or pull room (on the passive side) to align with the active side.
