SYNCHRONIZING ROOM TRAVEL
Fig. 9
A
B
MECHANICAL ROOM ADJUSTMENT-CONT.
Adjusting room so it seals in the IN position
1. Locate cylinder coming through the frame;
2. On the end of the cylinder there is a threaded shaft mounted to the
drive bracket with 3 nuts.
3. Loosen the Jam Nut-1 and set Jam Nut-2 to desired location.
4. Tighten down the Nylock Nut against bracket. Make sure Jam Nut-2
is adjusted for “FREE TRAVEL” (see above). Secure assembly by
tightening Jam Nut-1against Jam Nut-2. This will change the
location of your seal going to the “in position”.
Adjusting room so it seals in the OUT position
1. Locate actuator coming through the frame;
2. On the end of the cylinder there is a threaded shaft mounted to the
bracket with 3 nuts.
3. Adjust Jam Nuts 1 & 2 one way or the other– this will change the
location of your seal going to the “out position”.
4. Make sure all nuts are tight.

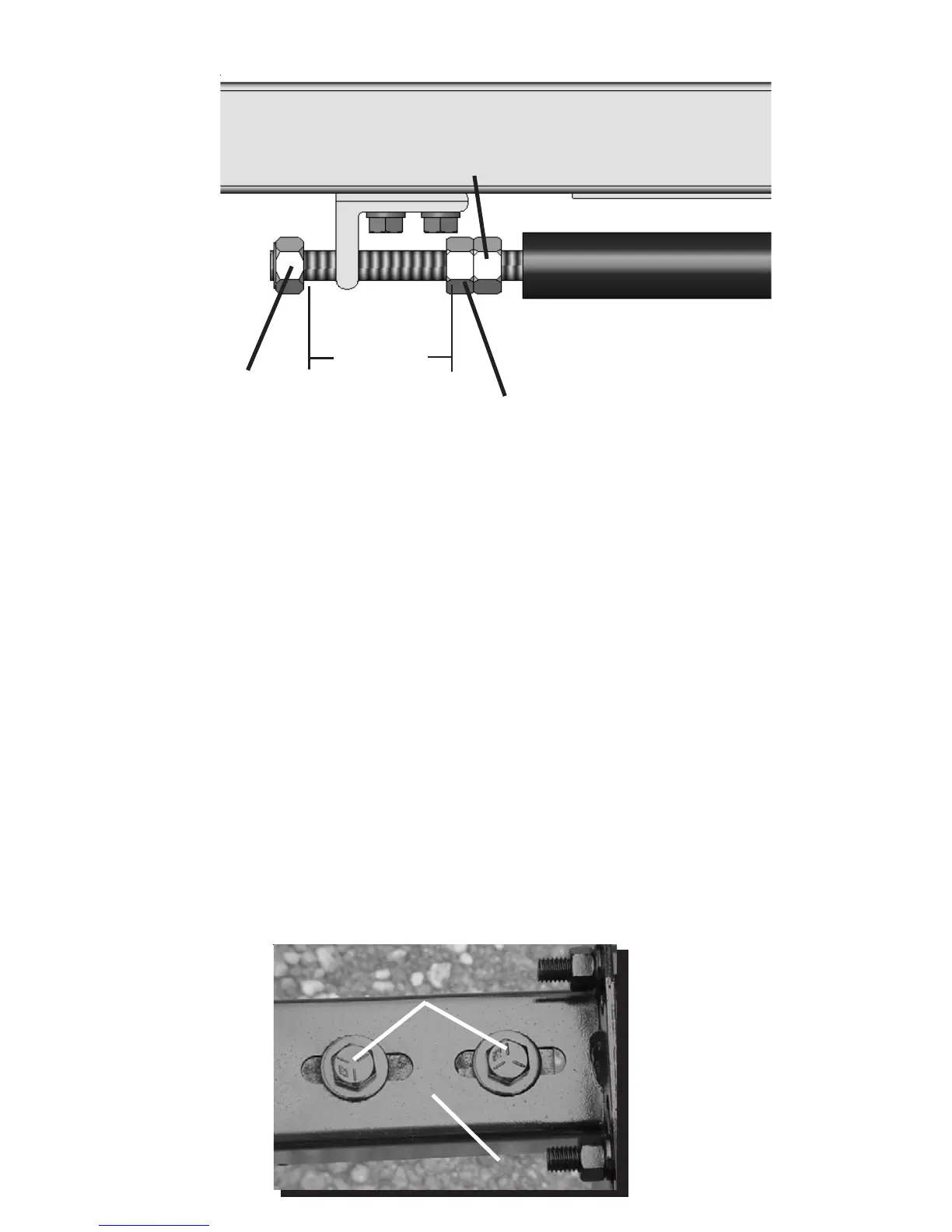

Jam Nut-1
Jam Nut-2
Nylock Nut
2” - 3”
FREE TRAVEL
