NOTE: Use caution when using prying devise so seals do not become damaged.
Vertical adjustment
1. Loosen 2 carriage bolts “A” on each bracket located at the end of
each guide tube
2. Loosen jam nut
3. For vertical adjustment turn vertical adjustment bolt “B” up or
down to locate room height.
Once room is located, tighten “A” and Jam Nut bolts.

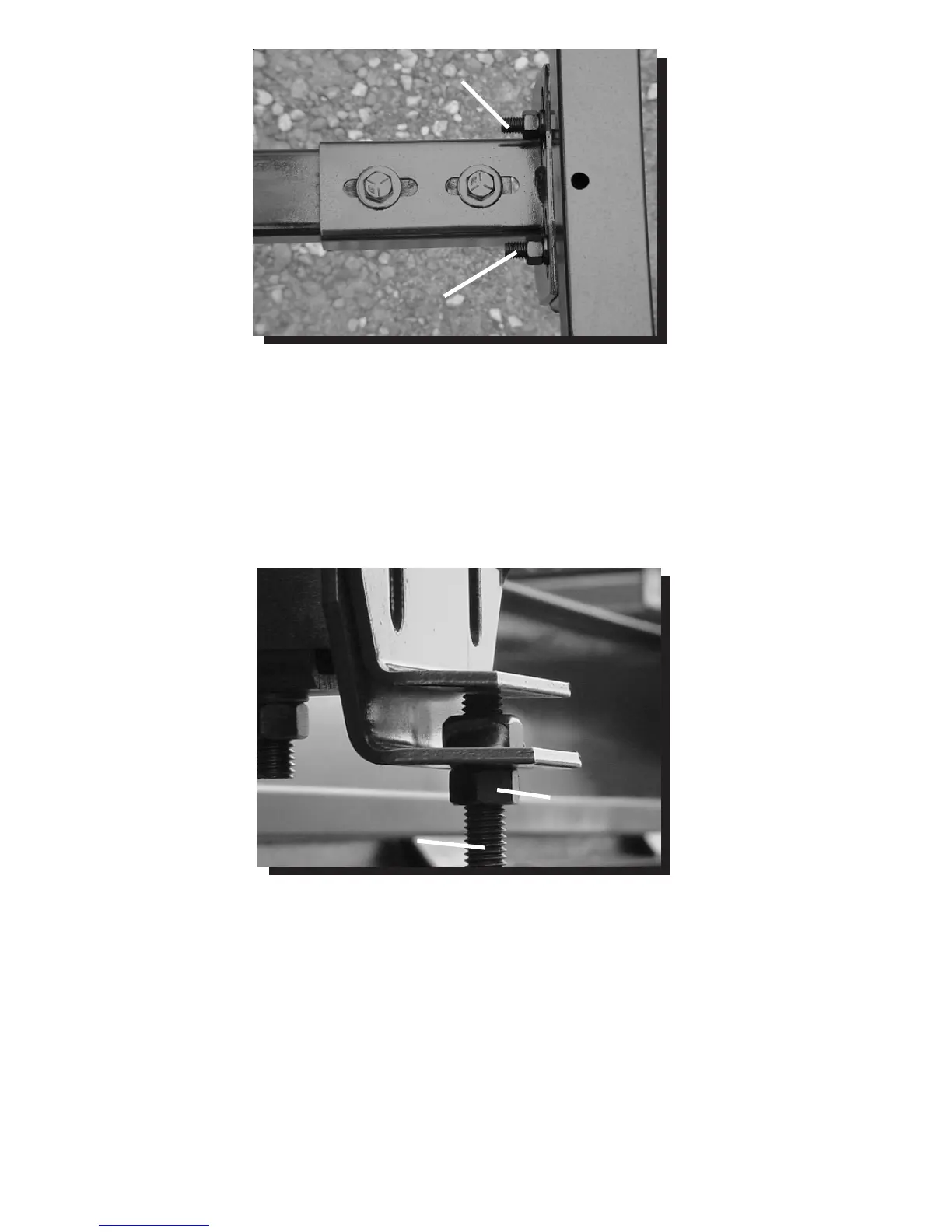

Fig.5
Bolt “A”
Bolt “A”
Bolt “B”
Jam Nut
Fig. 6
