MECHANICAL ROOM ADJUSTMENT
Vertical & Horizontal Room Adjustment
NOTE: All slideout room adjustments must be performed by certified service
technicians. Adjustments made by non-certified persons may void any and all
warranty claims.
Horizontal adjustment
1. Loosen 2 carriage bolts “A” on each bracket located at the end of
each guide tube.
2. Room is ready to be positioned horizontally by pushing on the
outside, sidewall or by using a prying devise inserted into the
opening between the room and coach.
FLUID FILLING PROCEDURE
The Lippert Hydraulic Slideout System uses automatic transmission fluid (ATF).
Any ATF can be used. A full synthetic or synthetic blend works best such as
Dexron III or Mercon 5. For best operation, fill system within ½” of the top when
all slideouts are completely retracted. The see through reservoir makes it easy
to check oil level. It is recommended that the oil level be checked prior to
operating the system. Make sure the breather cap is free of contamination
before removing, replacing or installing.
FILLING DIRECTIONS
Remove Breather/Fill Cap
Pour ATF into Breather/Fill opening.
NOTE: Do not allow any contamination into reservoir during fill process.
NOTE: Standard reservoir holds approximately 2 quarts (1.89 liters) of
ATF.
Fill to within ½” of top.
Replace Breather/Fill cap when finished.
NOTE: System is self-purging. By simply cycling the system 2-3 times,
any air in the system will be forced back to the reservoir and out of
the Breather/Fill cap.
7

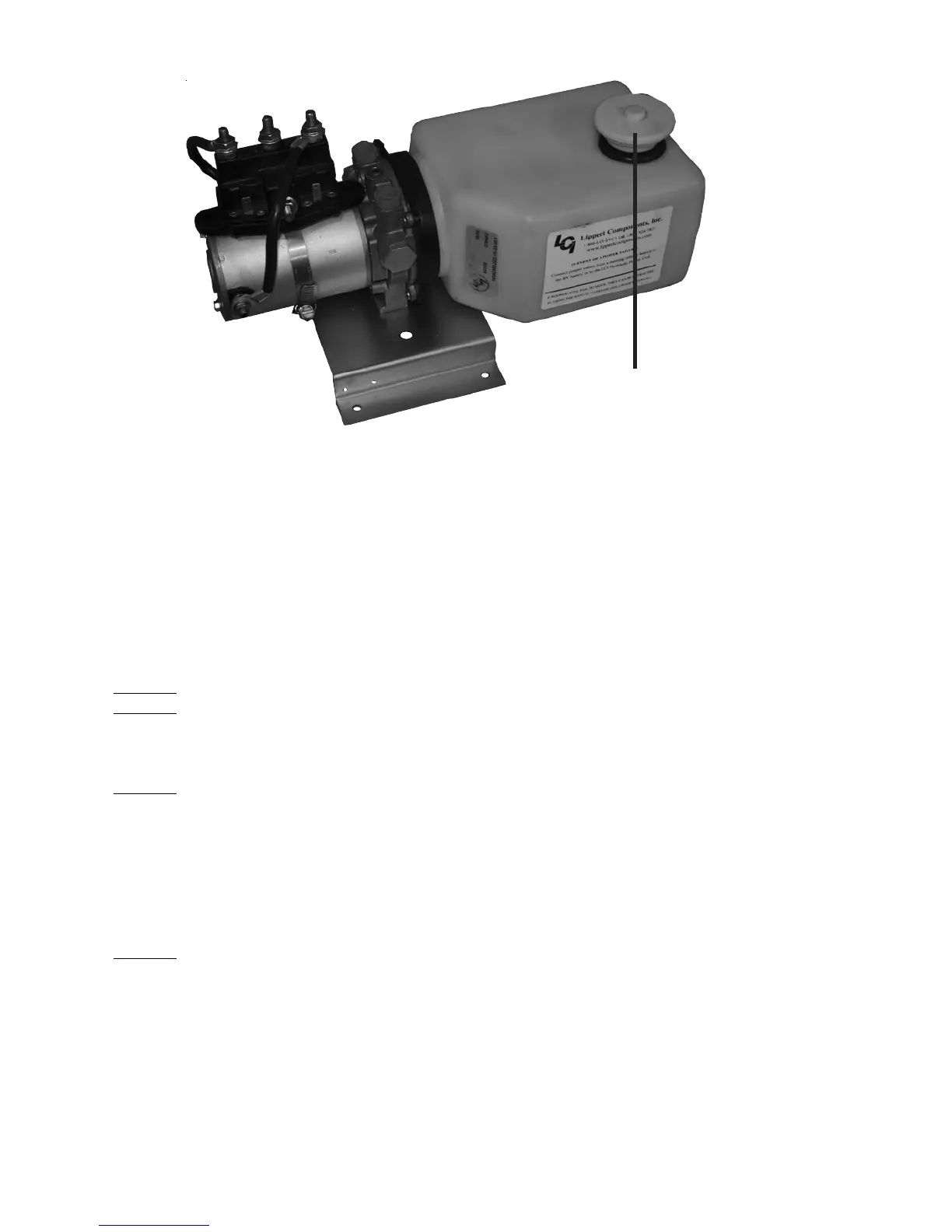

Breather Cap
Fig. 4
