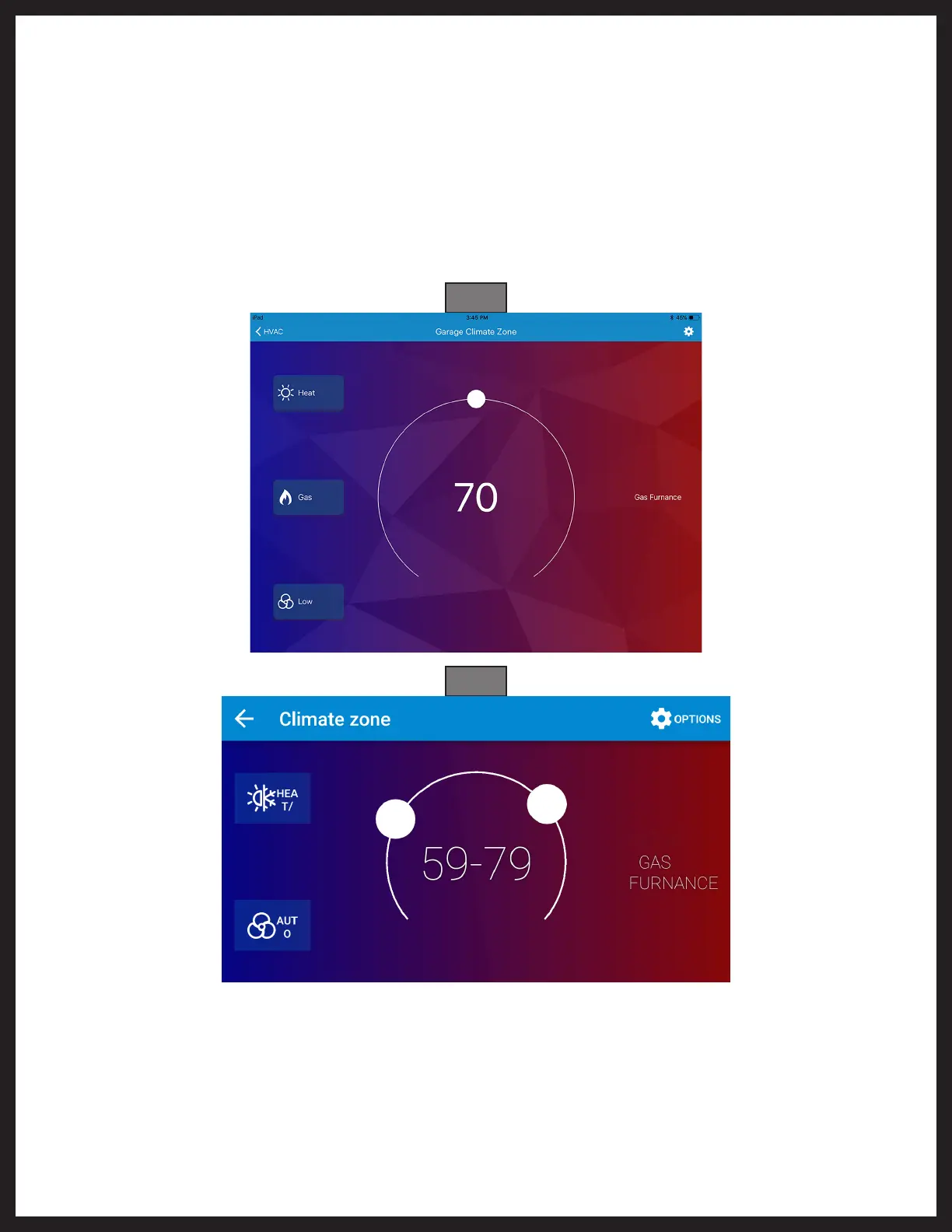

4. In the center of the screen is a temperature with a radius around it. On that radius there is a white circle
(Fig. 7). To adjust the setpoint:
E. Press and hold the white circle to drag it around the radius. Clockwise around the radius will
raise the setpoint temperature. Counterclockwise around the radius will lower the setpoint
temperature.
F. Once the desired setpoint is reached, release the white circle.
NOTE: When in "Heat/Cool" mode there will be two white circles (Fig. 8). One to the left sets the low end of
the temperature range and one to the right sets the high end of the temperature range.
5. To the right of the setpoint temperature and radius is the system status displayed.
Examples: Currently 78° F and cooling; Currently 65° F and Heating with gas; Currently 72° F and idle.
