Solera
®
Universal Hardware
Manual Awning to
Solera Hybrid Awning
(For Aftermarket Applications)
CCD-0001269

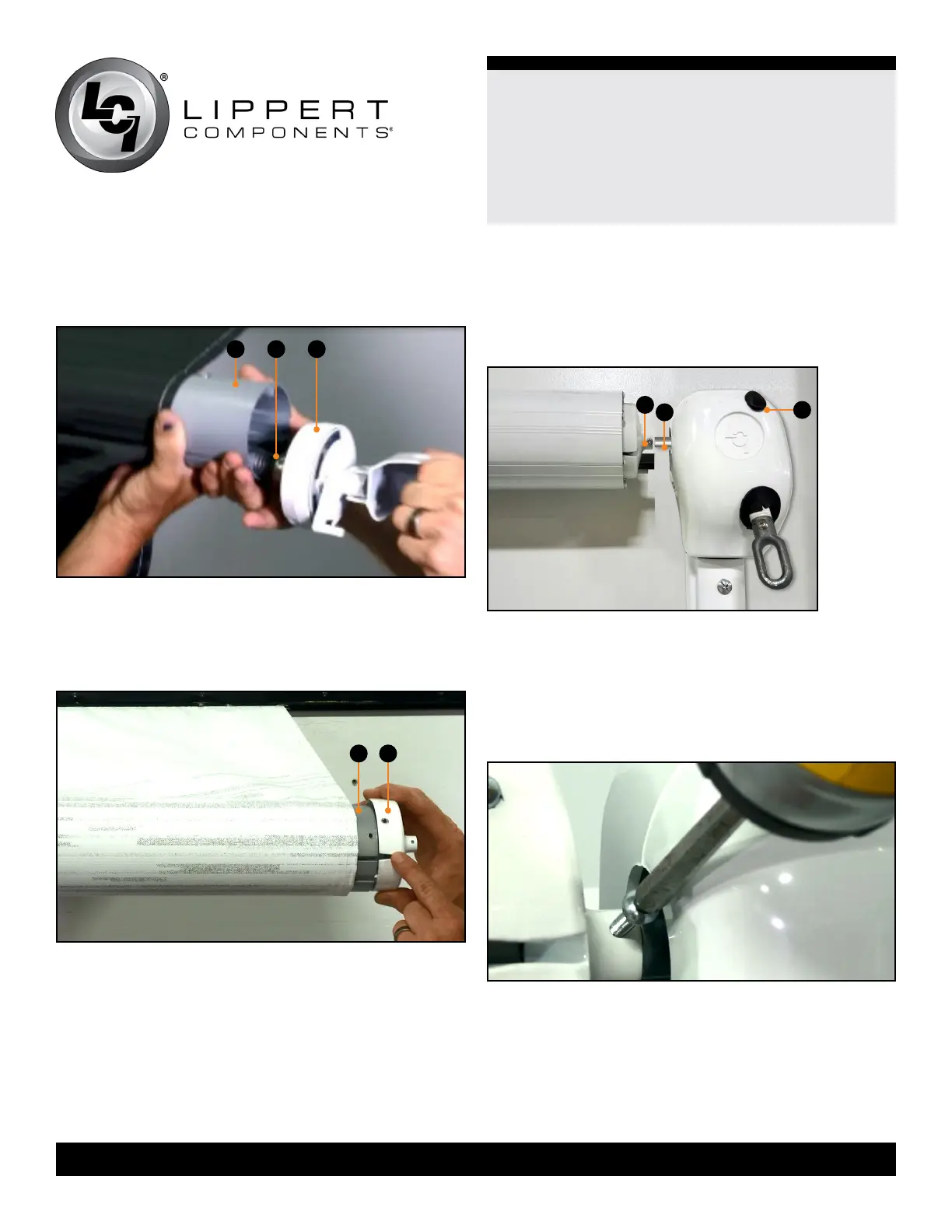

11. Remove the end cap (Fig.19C) and spring assembly
(Fig.19B) from the roll tube (Fig.19A).
A B C
Fig.19
12. Place the Solera end cap (Fig.20B) on the end of the
roll tube (Fig.20A), making sure it is properly seated and
the roll tube channel is aligned with the channel on the
end cap.
A B
Fig.20
13. Secure the Solera end cap to the roll tube with the
provided rivets.
NOTE: It may be necessary to drill out the previous holes
in order to accommodate the larger sized rivets.
14. Insert the Solera drive head assembly shaft (Fig.21B)
into the end cap (Fig.21A).
NOTE: When determining the drive head assembly from
the idler head assembly, the drive head assembly will have
an override plug (Fig.21C), while the idler head assembly
will not.
15. Align the holes from the shaft on the head to the end
cap and secure with the provided #8 - 32 x
½” wax screw
(Fig.22).
NOTE: Keep the head of the wax screw 1/8” from fastened
to avoid compromising the structural integrity of the wax screw.
Fig.21
16. Place the drive support arm assembly directly under the
awning rail so the top of the mount arm is touching the bottom
of the rail. Secure the upper section of the drive mount arm
to the unit with 2 of the provided #14 x 1 ¼” screws, aligned
directly below the holes of the awning removed (Fig.23).
B
A
C
Fig.22
