SolidStep
®
3.0
Adjustable Latch
Installation and Owner’s Manual
(For Aftermarket Applications)

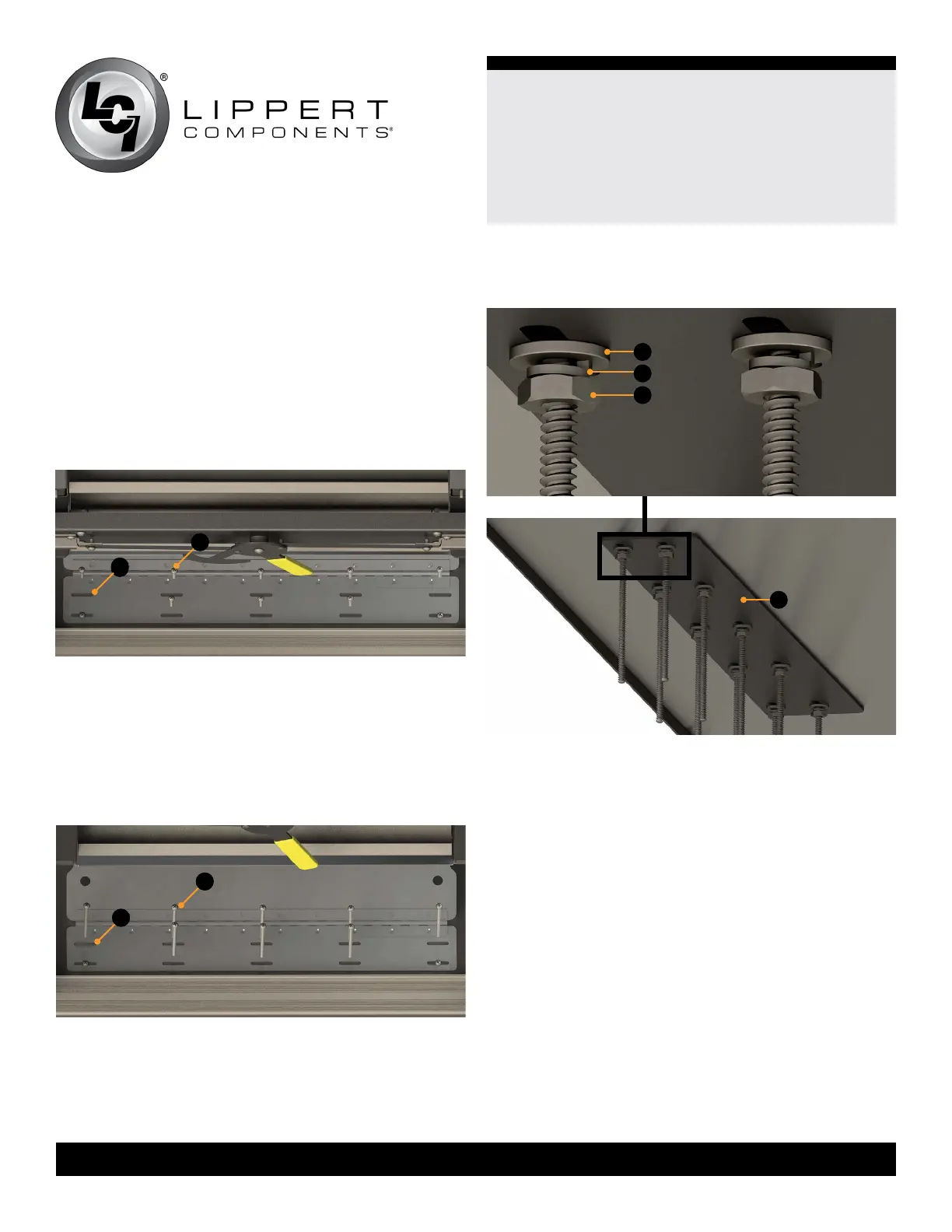

B. For laminate ooring, drill eight holes straight down
with the ⁄” drill bit via the eight remaining access holes
located in the top of the hinge plate (Fig.6A). Insert eight
#10 - 24 x 4" bolts (Fig.6B) into the hinge plate through
the oor, through the backer plate (Fig.7D) and secure with
#10 washers (Fig.7A) #10 lock washers (Fig.7B) and
#10 - 24 nuts (Fig.7C).
Fig.5
2. If necessary, use the horizontal slots (Fig.6A) to make
additional small adjustments to the step assembly
positioning in the doorway.
3. If a backer plate is being used, apply silicone sealant
around the holes.
4. Extend the step assembly.
5. Insert the two provided caps to cover the access holes
in the mounting plate (Fig.2B).
Secure Hinge Plate
1. After adjusting the transport lock and with the step
assembly in the upright, stored position, secure the slots
of the hinge plate to the oor of the trailer using the
additional fasteners provided.
A. For wood ooring, drill pilot holes using the ⁄” drill bit
and install eight #10 - 13 x 1 ¼" wood screws (Fig.5B) into
the mounting plate via the eight remaining access holes
located on the hinge plate (Fig.5A).
Fig.6
A
Fig.7
A
B
D
A
B
C
B
